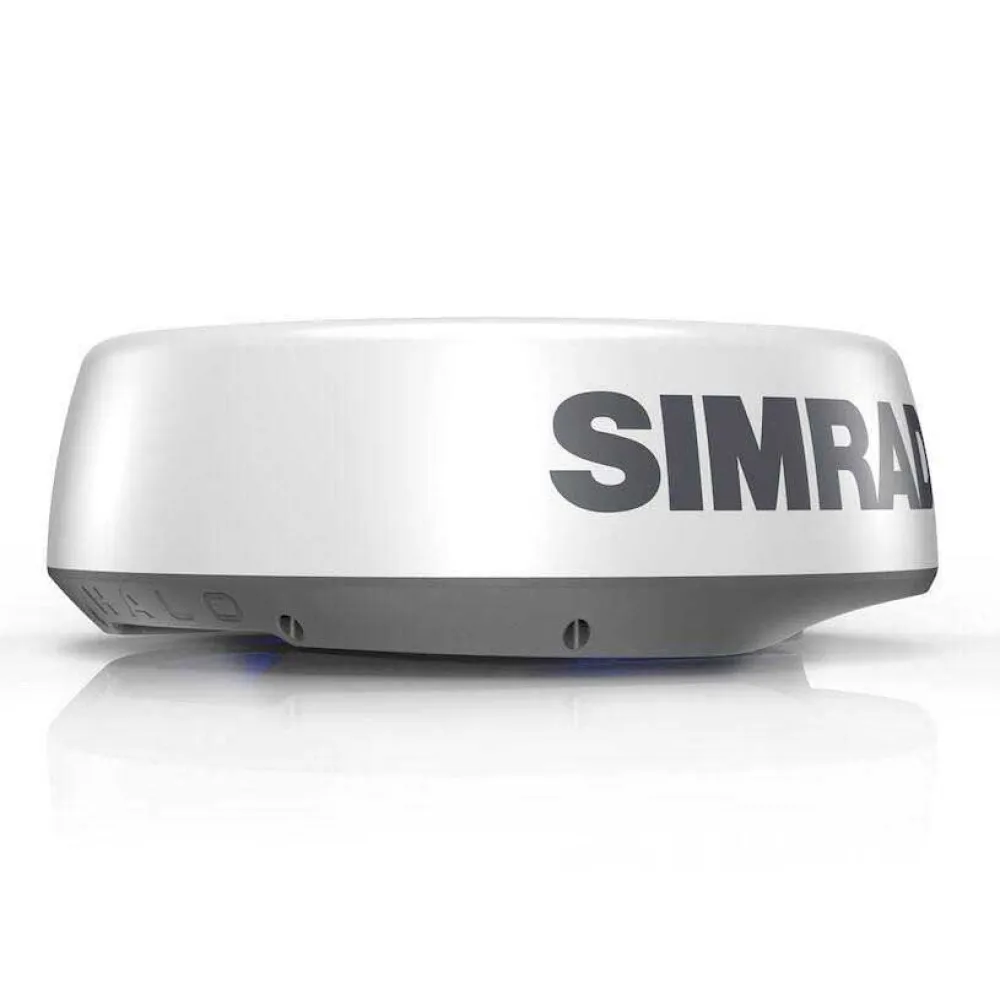

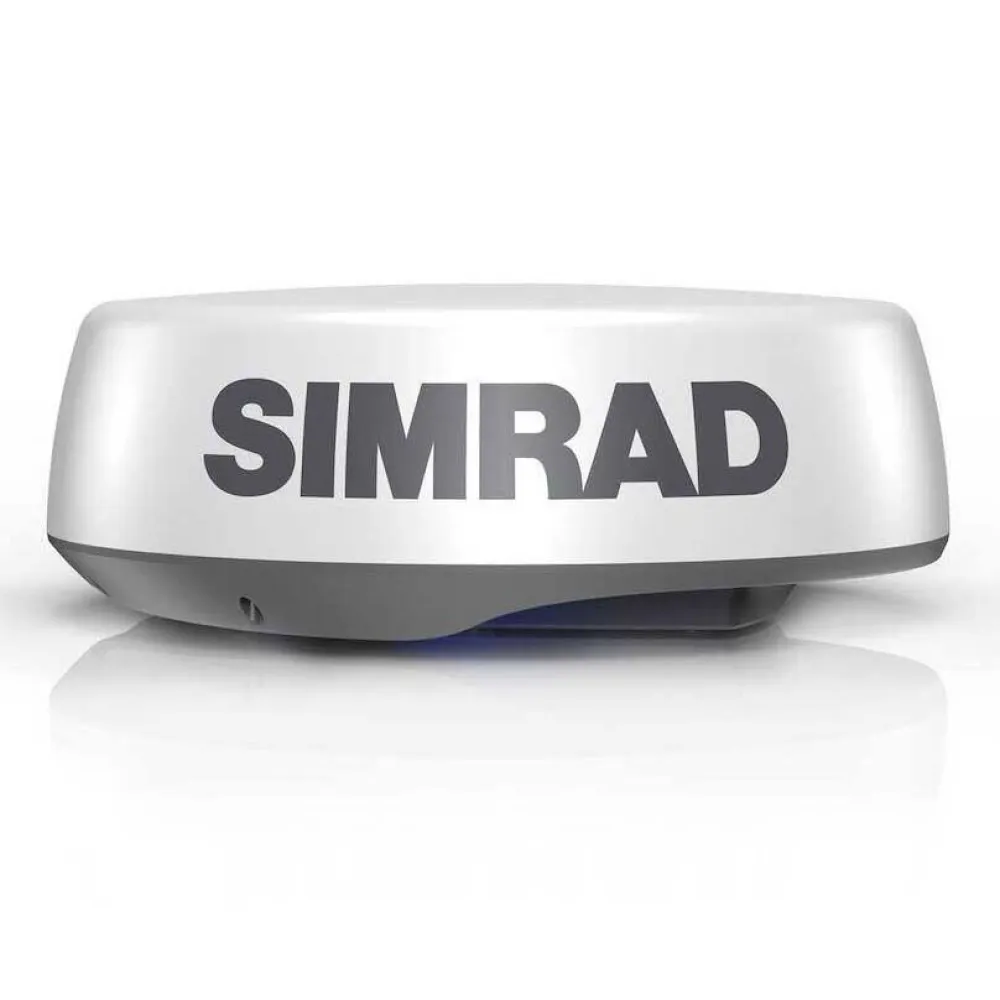

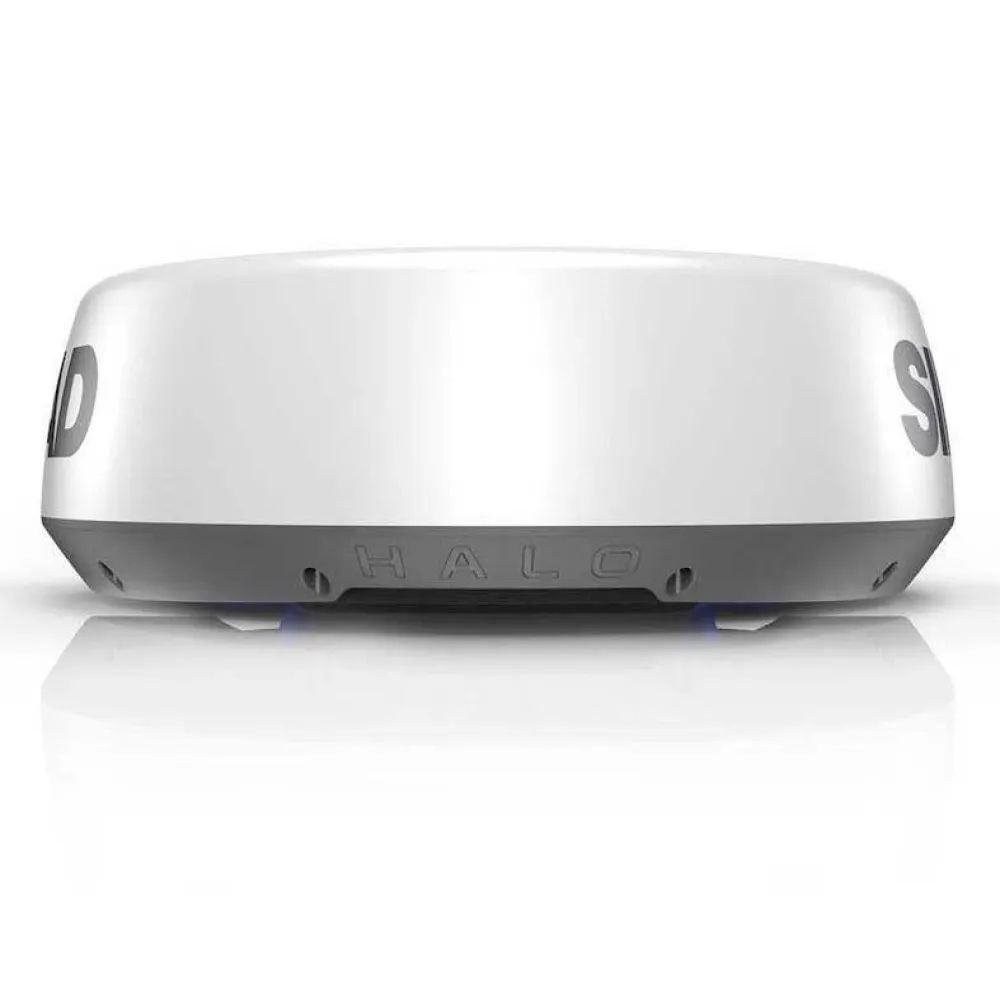

Simrad Halo 24 radar

SIMRAD Halo24 Pulse Compression Dome Radar | Ultimate Situational Awareness

Experience unparalleled situational awareness on the water with the SIMRAD Halo24 Pulse Compression Dome Radar. This revolutionary 24-inch dome radar sets a new standard in performance, combining the best characteristics of traditional pulse and FMCW broadband radar systems. The Halo24 is one of the most advanced Radars available for recreational boaters, providing a crystal-clear image and ultimate target detection for enhanced safety and navigation, whether you´re navigating a crowded harbor or heading offshore on an extended passage. It delivers a sharp, focused beam with unprecedented target separation, giving you a clear and current picture of your surroundings.

Unrivaled Performance for Ultimate Collision Avoidance

At the core of the Halo24 is its industry-first 60 RPM operation at close range. When monitoring for hazards up to 1.5 nautical miles away, the antenna spins at an ultra-fast 60 RPM, providing a near real-time view that is essential for tracking fast-moving targets and avoiding collisions in high-traffic waterways. This high-speed update rate gives you the most current information possible when you need it most.

See Near and Far Simultaneously with Dual Range

Never compromise your view. The Halo24´s advanced Dual Range capability allows you to monitor two different distance ranges simultaneously on a split-screen display with your Simrad multifunction display. Keep a vigilant eye on distant weather cells moving in from 48 nautical miles away while also watching for close-range collision hazards like channel markers, buoys, and other vessels, all from a single, compact dome antenna.

VelocityTrack™ Doppler Technology Built-In

Identify hazards instantly and without ambiguity. Integrated VelocityTrack™ Doppler technology provides immediate, color-coded feedback on whether targets are approaching you or moving away. Approaching vessels are highlighted in yellow, while diverging targets are shown in blue. This vital collision avoidance tool enhances your safety and peace of mind by making potential threats instantly recognizable, removing the need to manually interpret and track every target on your screen.

Main Features

* 48 nm range from a compact 24-inch dome
* Advanced Pulse Compression technology with beam sharpening
* Simultaneous Dual Range operation sees both near and far
* Ultra-fast 60 RPM operation for close-range safety
* VelocityTrack™ Doppler technology for collision avoidance
* Easy-to-use Harbour, Offshore, Weather, and Bird modes
* MARPA target tracking (up to 10 targets, or 20 in dual range)
* InstantOn™ technology, ready in seconds from standby
* Low power consumption for extended use on sail or powerboats
* Completely radiation safe to people at any distance from the antenna

Technical Specifications

* Attribute: Radars
* Supply Voltage: 10.5 - 31.2 VDC (12/24V Systems)
* Max Range, Scale: 48 NM
* Min Range, Scale: 50 m / 200 ft / 50 yd
* Rotation Speed: Up to 60 RPM (range dependent)
* Beam Width: 3.9° horizontal (-3dB), 2.5° with beam sharpening
* Waterproofing Rating: IPX6
* Power Consumption (Typical): 20W
* Power Consumption (Max): 29W
* Weight: 6.75 kg (14.9 lbs)
* Dimensions (Diameter x Height): 610 mm x 225 mm (24" x 8.9")
* Operating Temperature Range: -25°C to +55°C (-13°F to +131°F)
* Ethernet Ports: 1x100 Mbit
* Interface: Simrad MFD
