Simrad I3005 IMO SOLAS screen

Simrad I3005 Professional IMO Instrument | 5-Inch SOLAS Display

Enhance your vessel´s bridge with the Simrad I3005 Professional Instrument, an IMO type-approved 5-inch display engineered for uncompromising clarity and reliability in the most demanding marine environments. Designed specifically for SOLAS vessels and professional maritime applications, the I3005 provides at-a-glance access to mission-critical data, ensuring situational awareness and operational safety. Its rugged construction and superior screen technology make it an essential component for any modern navigation system.

Experience unparalleled visibility with a display built to perform. The I3005 features an optically bonded LCD screen that eliminates the potential for internal condensation while significantly enhancing contrast and readability. Combined with its powerful 1200-nit brightness, the screen remains clear and legible even in direct, bright sunlight. Wide viewing angles of 80 degrees from all directions ensure that data can be easily read by crew members from various positions on the bridge, improving collaborative navigation and monitoring.

Built for seamless integration and long-term durability, the I3005 is fully compliant with stringent IMO standards, including MED-B (Wheelmark) approval. Its robust chassis and IP66-rated front panel guarantee protection against water ingress and the harsh realities of the sea. Installation is streamlined through dual NMEA 2000 ports, allowing for simple daisy-chaining of multiple units and effortless connection to your vessel´s sensor network. This plug-and-play capability reduces installation time and complexity, providing a cost-effective solution for both new builds and retrofits. The intuitive keypad allows for quick cycling through data pages, making it user-friendly even when wearing gloves.

Main Features
* IMO Type Approved for SOLAS vessels
* Crystal-clear 5-inch, 480x272 pixel widescreen display
* Optically bonded LCD to prevent fogging and improve contrast
* High-brightness 1200-nit screen for excellent sunlight viewability
* Wide 80/80/80/80 degree viewing angles (top/bottom/left/right)

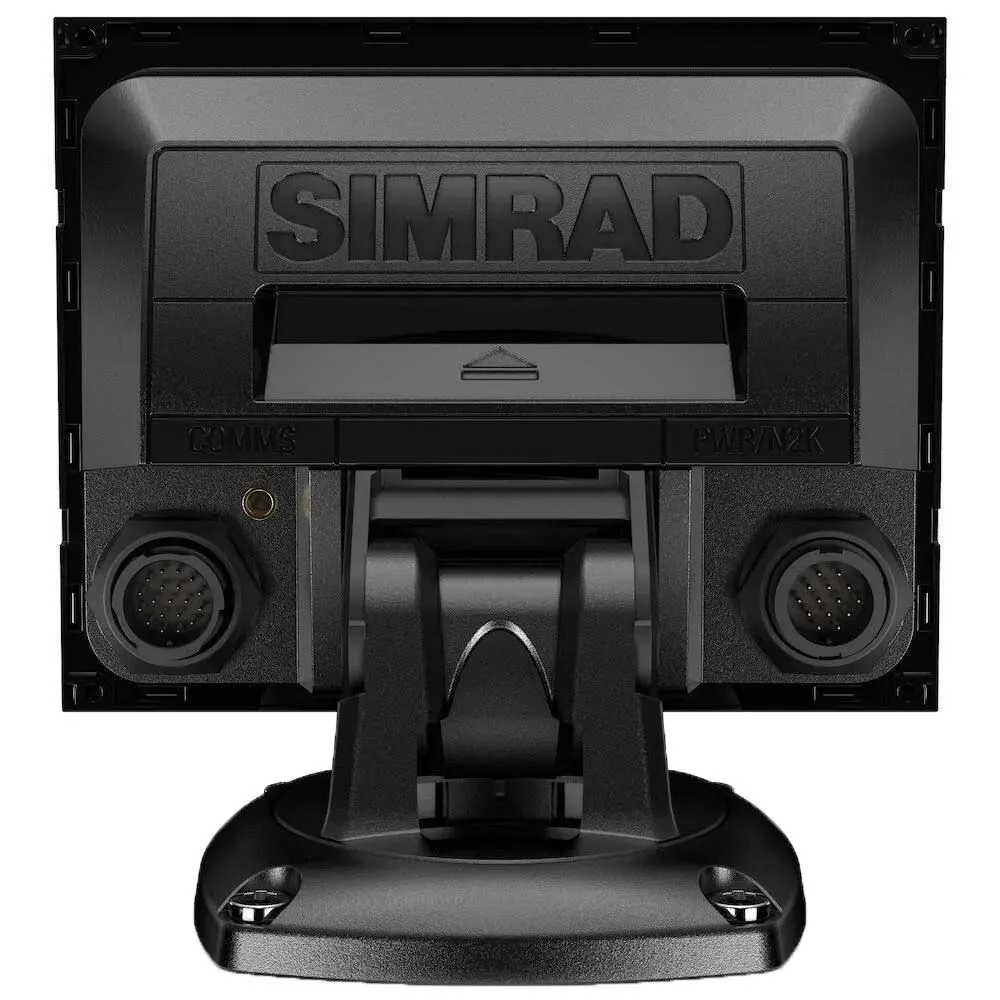

* Dual NMEA 2000 ports for simplified, daisy-chain installation
* IP66 rated front for superior water resistance
* Simple, reliable operation with an integrated keypad
* Low-profile glass bridge styling

Versatile Data Screens

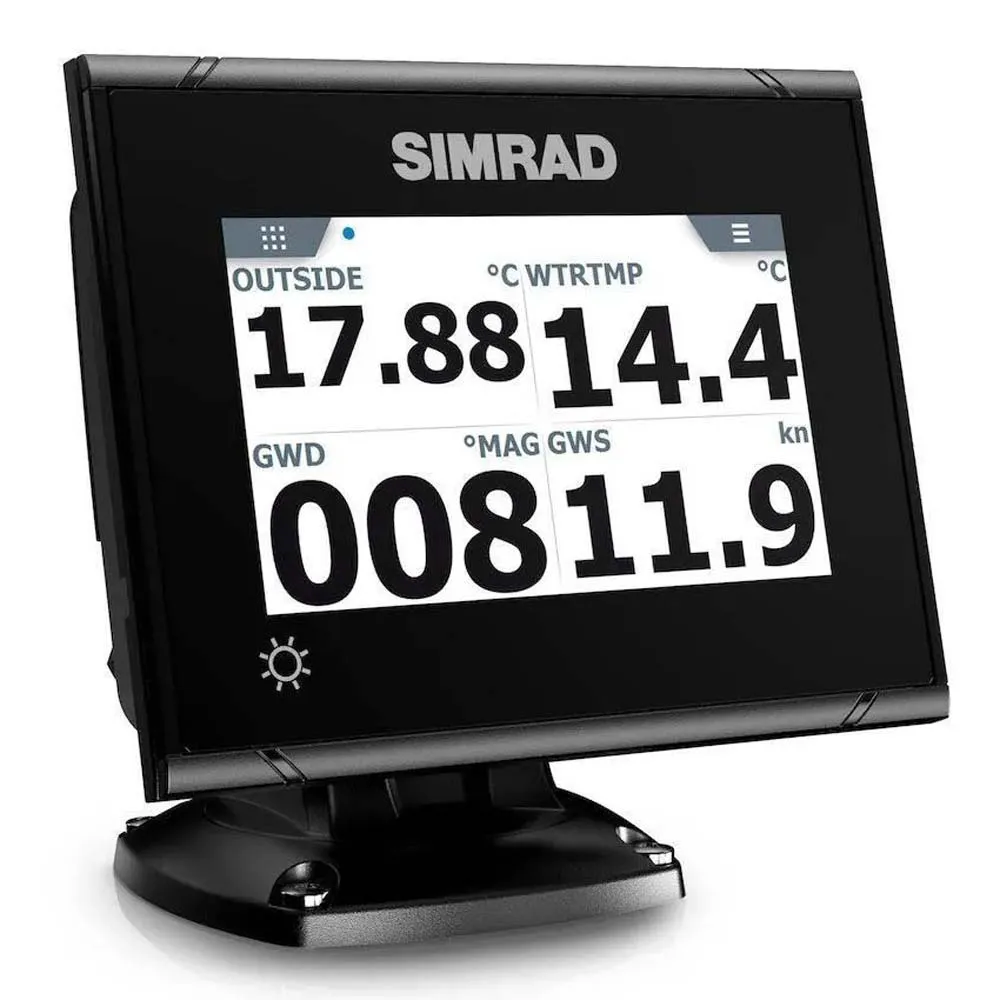

The I3005 is a versatile multi-instrument display, capable of presenting a wide range of essential vessel data across multiple pre-configured pages. Depending on the connected sensors in your NMEA 2000 network, it can clearly display:

* Heading & Rate of Turn

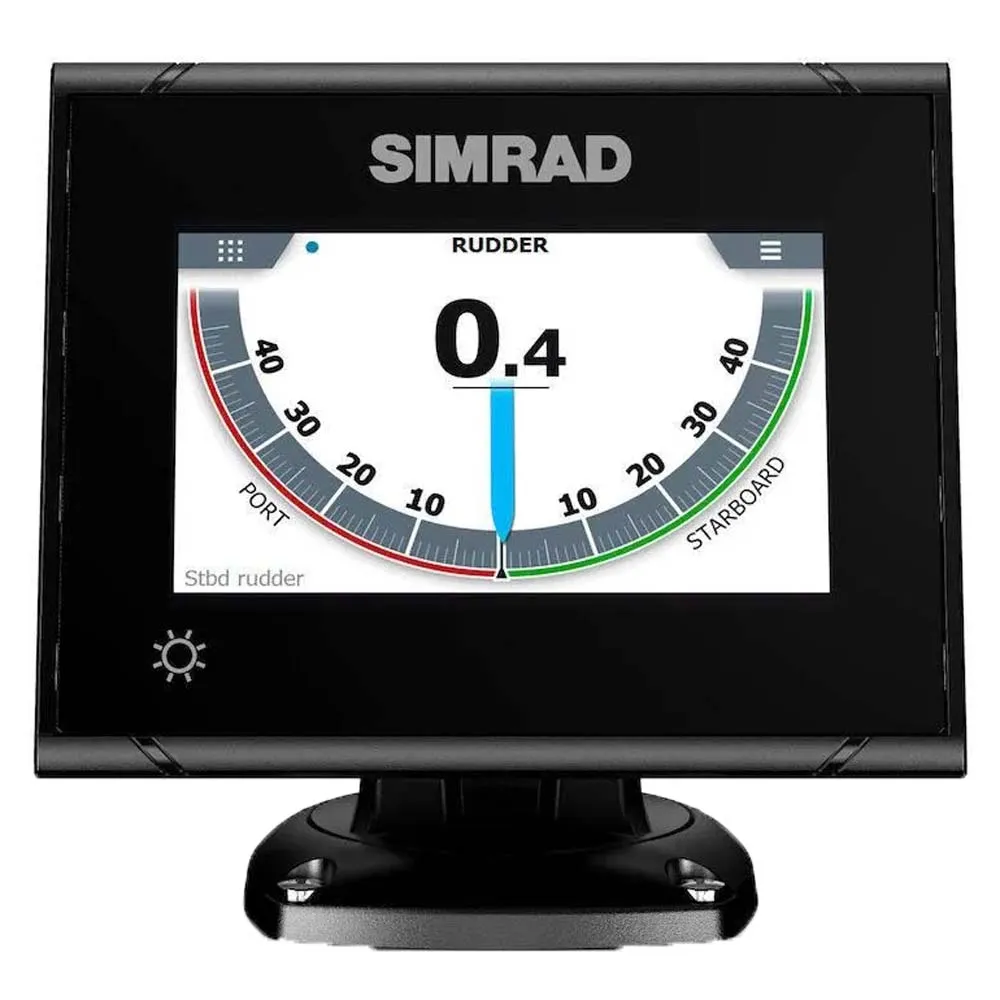

* Rudder Angle Indicator

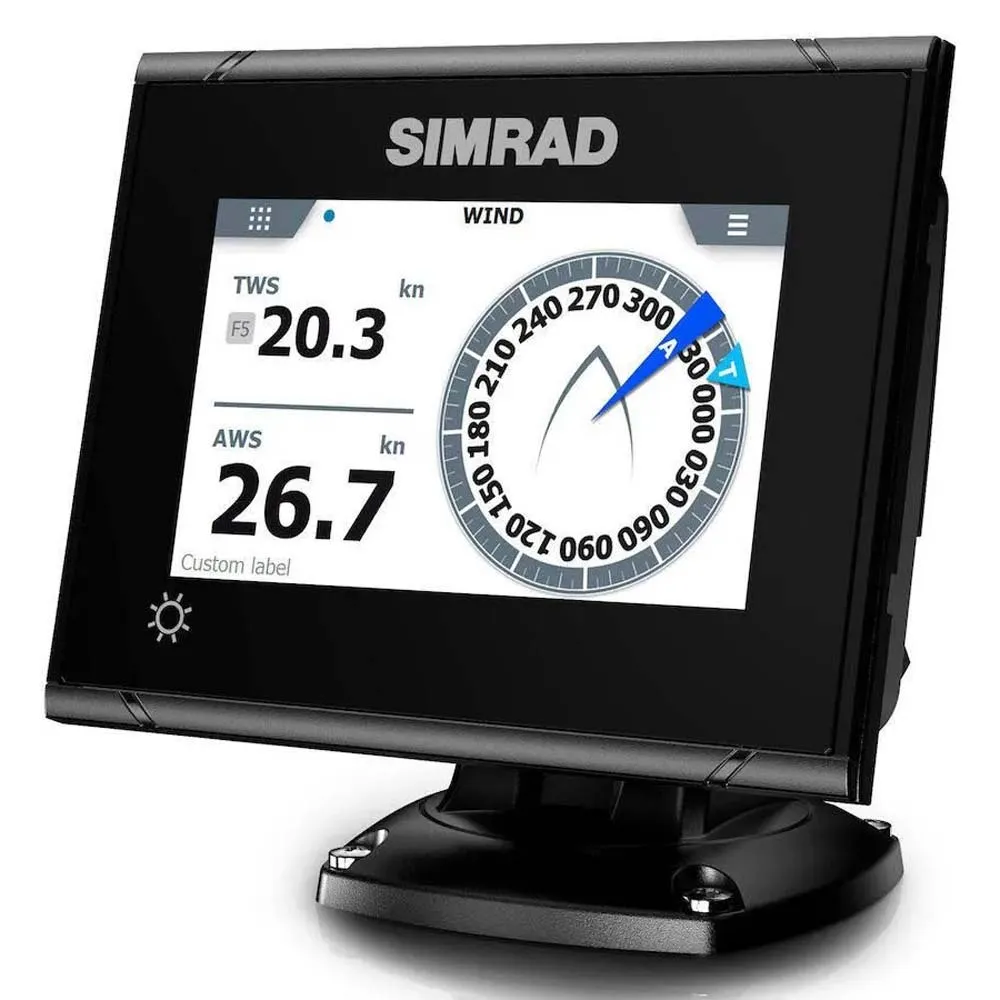

* Wind Data (Apparent, True)
* Speed (SOG, STW)
* Depth
* Engine Data
* And more critical navigation and vessel metrics.

Technical Specifications
* Display Size: 5-inch Widescreen
* Resolution: 480x272 pixels
* Brightness: 1200 cd/m²
* Waterproofing: IPx6 (Front)
* Supply Voltage: 12/24 V DC (9-32 V DC)
* Power Consumption (Typical): 1.8 W
* Connectivity: 2 x NMEA 2000 Micro-C ports (1 LEN)
* Approvals & Compliance: IMO A.694(17), MSC.191(79), MSC.74(69) Annex 2; IEC 60945, IEC 61162-1, IEC 61162-2, IEC 62288. MED-B (Wheelmark) Approved
