Simrad NSS Evo3 7´´ Fishing Plotter

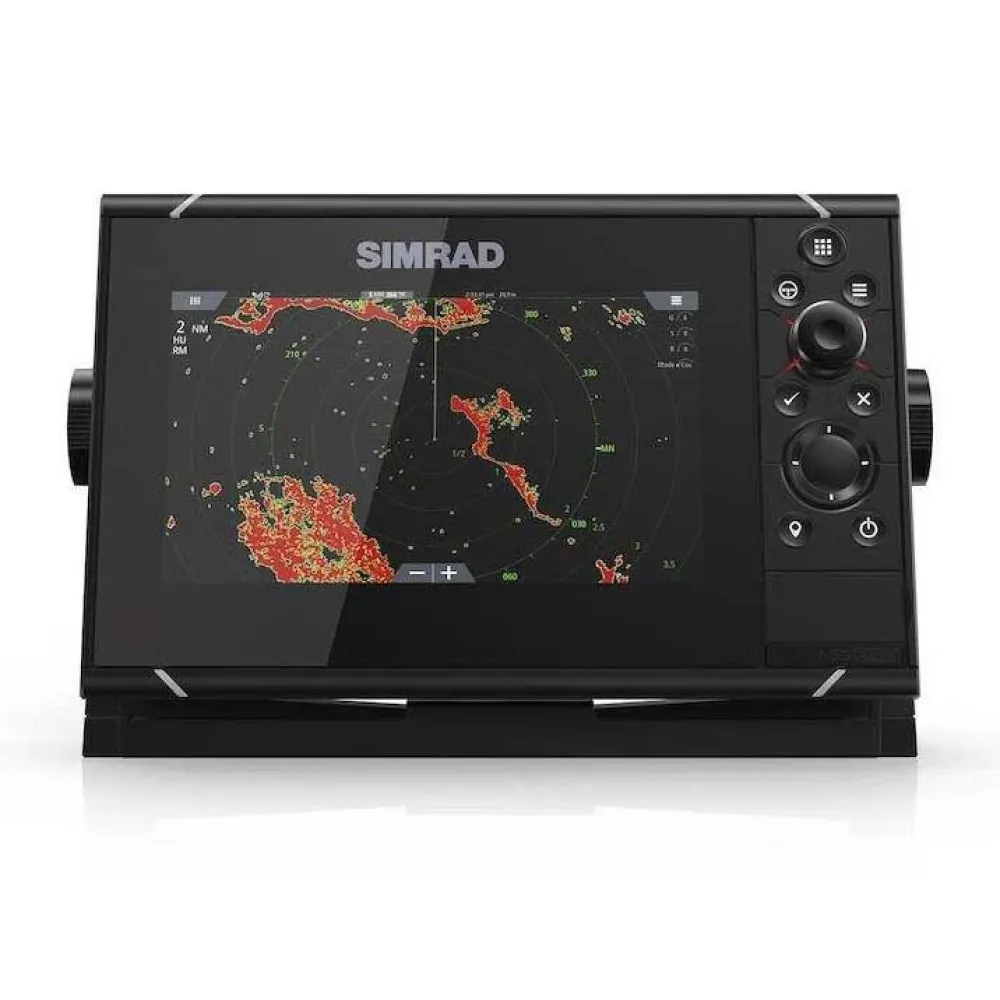

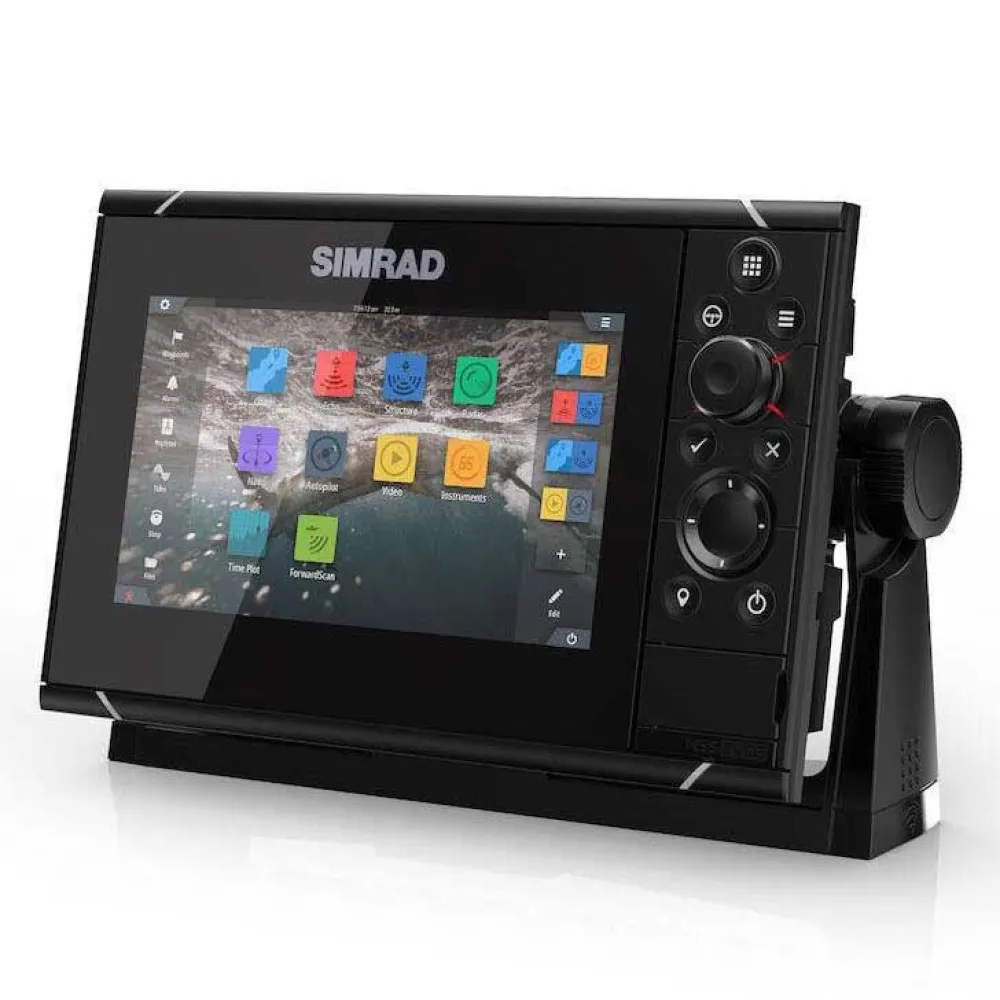

SIMRAD NSS Evo3 7" Fishing Plotter / Multifunction Display

Product Description:

Elevate your on-the-water experience with the SIMRAD NSS Evo3 7-inch Fishing Plotter, a powerful multifunction display (MFD) designed for serious anglers and powerboaters who demand performance, reliability, and total control. The NSS Evo3 serves as the command center of your vessel, seamlessly integrating best-in-class chartplotting, advanced fish-finding capabilities, and full vessel integration into a single, intuitive unit.

Experience unparalleled situational awareness with the stunning SolarMAX™ HD display. Engineered for ultimate visibility in all conditions, this high-definition screen offers exceptional clarity and ultra-wide viewing angles, ensuring you can read charts, sonar, and data with ease, even in bright, direct sunlight or while wearing polarized sunglasses. The NSS Evo3 features Simrad´s unique hybrid control system, giving you the power of choice. Interact effortlessly with the responsive all-weather touchscreen for quick, intuitive commands, or utilize the full-featured keypad with a rotary dial for precise adjustments and reliable control when rough seas make touchscreen operation difficult.

At its core, the NSS Evo3 is a premier navigation tool. A built-in high-gain 10 Hz GPS receiver provides rapid and accurate position updates, while compatibility with a wide range of cartography from C-MAP® and Navionics® allows for powerful features like automatic routing. Plan your trips with confidence using TripIntel™ technology, which tracks fuel range, tide information, and previous trip data to ensure you always have a safe and efficient journey planned.

Key Benefits:

* Unrivaled Display Clarity: The 7-inch SolarMAX™ HD screen delivers crisp, clear views from any angle, in any light.
* Total All-Weather Control: Seamlessly switch between the intuitive multi-touch display and a full keypad with a rotary dial for precise control in any sea condition.
* High-Performance Fish Finding: Features a built-in echosounder with dual-channel CHIRP, enabling you to see fish and structure with incredible detail.
* Complete Vessel Integration: Connect and control Simrad autopilot, radar, and other NMEA 2000® compatible instruments directly from the display.
* Blazing-Fast Performance: A high-speed processor ensures smooth menu transitions, instant chart redraws, and responsive performance for all functions.
* Stay Connected: Built-in Wi-Fi allows for easy software updates, chart downloads, and mirroring your display to a compatible smartphone or tablet.

Main Features:

* 7-inch SolarMAX™ HD Widescreen Display
* Reliable control with both multi-touch and full keypad functionality
* Integrated echosounder featuring dual-channel CHIRP, ForwardScan® sonar, and StructureScan® HD imaging support
* Expandable with Simrad modules for StructureScan® 3D, advanced Broadband Sounder™, and more
* Full Simrad autopilot system integration and control
* Built-in high-sensitivity 10 Hz GPS/GLONASS receiver
* NMEA 2000® connectivity for engine monitoring, sound system control, and more
* TripIntel™ trip planning and support for automatic routing
* Built-in GoFree™ Wi-Fi for online connectivity
* Dual MicroSD card slots for charts and data
* Flush-mount or bracket-mount installation options

Attribute:


Technical Specifications:

* Display Resolution: 600x1024 pixels
* Screen Brightness: 1200 nits
* Display Type: High-Visibility SolarMAX HD® IPS
* Viewing Angles: 80° top/bottom, 80° left/right
* Waterproofing: IPX7
* Operating Temperature Range: -15°C to +55°C (5°F to 131°F)
* Supply Voltage: 10 - 31.2 V DC
* GPS Receiver: 10 Hz Internal
* Ethernet Ports: 1x5 pin yellow connector
* NMEA 2000 Connectivity: 1 x NMEA 2000 Micro-C port
* Storage: 2 x MicroSD card slots, 16 GB Internal
* Waypoints, Routes, Tracks: 6000 waypoints, 500 routes with 100 max route points, 50 tracks with up to 12.000 track points
