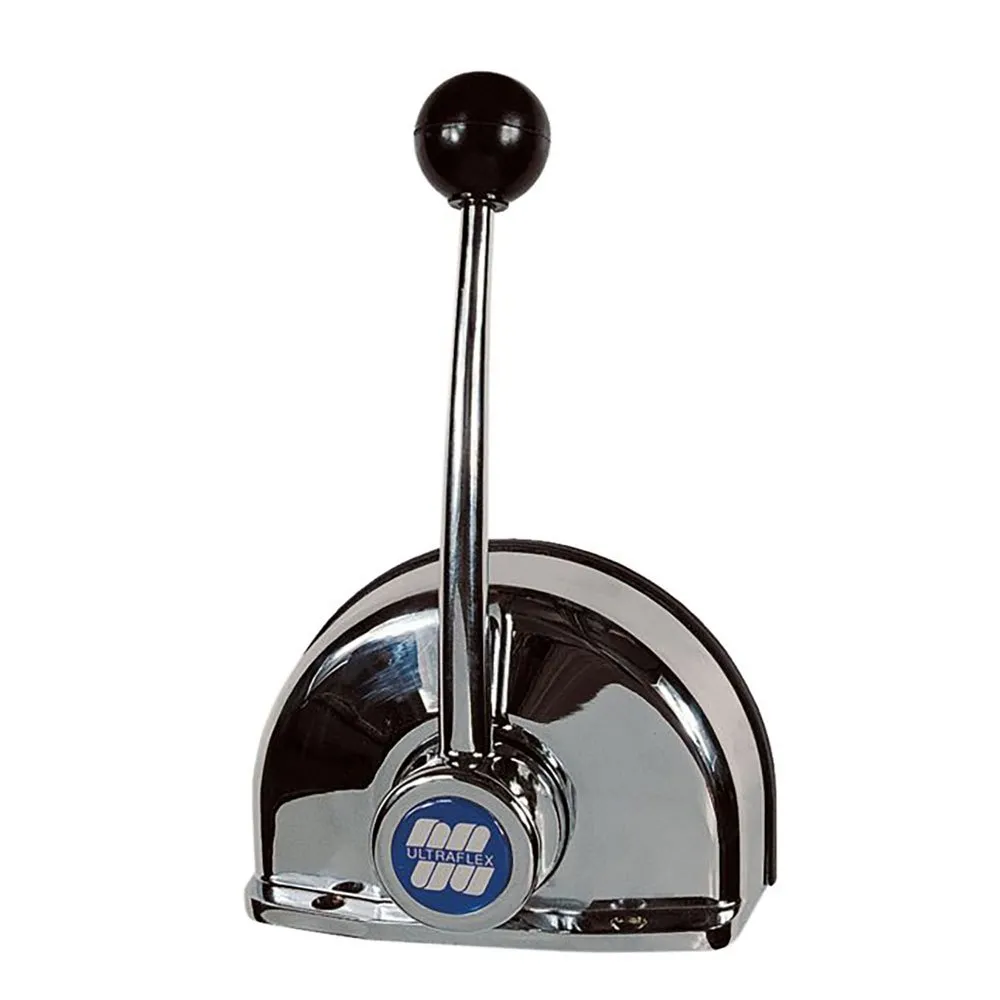

Ultraflex B103 Simple Lever Engine Control

ULTRAFLEX B103 Simple Lever Engine Control | Dual-Action Throttle & Gear

Experience superior command and reliability at your helm with the ULTRAFLEX B103 Simple Lever Engine Control. Expertly engineered for precision and durability, this control system is the definitive upgrade for boaters seeking seamless operation and enhanced safety. The B103 is designed as a single lever dual action control for one engine, masterfully integrating both throttle and gear functions into one intuitive handle. This streamlined design simplifies maneuvers, reduces helm clutter, and provides an immediate, responsive connection to your power plant.

Designed for exceptional versatility, the B103 is suitable for any type of boat with outboard, inboard, and sterndrive power plants, making it a universal solution for a wide range of marine vessels. Its core focus is on operational safety and ease of use. The system enables easy and safe shifting by preventing accidental gear engagement unless the engine is idling. This crucial feature eliminates jarring shifts and protects your transmission from potential damage, ensuring smooth transitions from neutral to forward or reverse.

Crafted for the demanding marine environment, the B103 features a robust construction of cast and chrome-plated aluminum, offering exceptional resistance to corrosion and wear while providing a sleek, professional look to your console. For essential engine maintenance and preparation, a convenient pull-out handle disengages the shift for engine warm-up, allowing you to rev the engine in neutral without engaging the propeller.

Further enhancing its safety credentials, the B103 allows for the integration of the optional X43 safety switch (art. 4242065). Through the safety switch X43, you get the engine to start only in neutral, a critical safety measure that prevents unexpected propulsion upon startup. An internally fitted and adjustable friction mechanism prevents throttle creep, allowing you to set and maintain your desired speed with confidence. The ULTRAFLEX B103 conforms to EN 11547 standards when installed with the X43 safety switch, guaranteeing its quality and adherence to rigorous safety protocols.

Levers
* Function: Controls both throttle and gear for a single engine.
* Features: Integrated pull-out handle for disengaging the shift during warm-up; internal friction brake to prevent throttle creep.

Technical Specifications
* Application: Suitable for outboard, inboard, and sterndrive engines.
* Construction: Cast and chrome-plated aluminum.
* Cable Compatibility: For use with Ultraflex C2, C8, and Mach 0 control cables.
* Compliance: Conforms to EN 11547 (in the presence of the safety switch X43)
