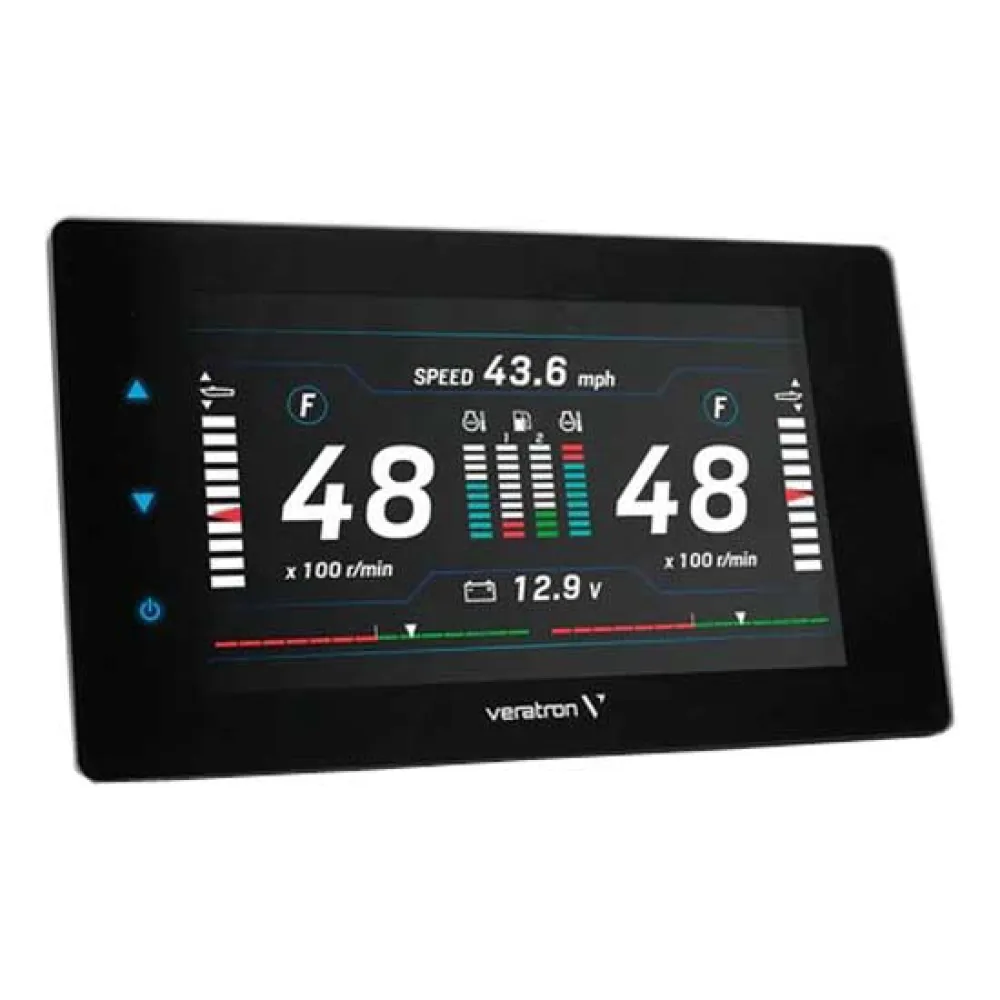

Veratron VMH 70TFT 7´´ screen

VERATRON VMH 70TFT 7” Screen | The Ultimate All-in-One Marine Display

Elevate your helm to a new level of clarity and control with the VERATRON VMH 70TFT 7” Screen. This state-of-the-art multifunction instrument is engineered to be the central nervous system of your vessel, replacing cluttered traditional gauges with a single, elegant, and powerful display. Experience unparalleled situational awareness with all your critical boat data consolidated into one intuitive and highly customizable interface. Designed for the most demanding marine environments, the VMH 70 provides vital information at a glance, allowing you to focus on the journey ahead. Whether you are monitoring engine performance, tracking navigation, or checking system vitals, this display delivers the data you need with exceptional precision and reliability.

The core benefit of the VMH 70 is its ability to seamlessly integrate a wide array of data sources. Thanks to its certified NMEA 2000 connectivity, it acts as a central hub for all your modern marine electronics. At the same time, its unique inclusion of analog inputs ensures backward compatibility, allowing you to connect legacy sensors for fuel, trim, or temperature, making it the perfect upgrade for any vessel, new or old. Customize up to 40 different data layouts to create a dashboard that is perfectly tailored to your specific needs, whether you´re cruising, fishing, or racing.

Main Features:

* Centralized Data Hub: Displays a comprehensive range of data including engine parameters (J1939 & NMEA 2000), navigation information, tank levels, battery status, and more on a single screen.
* Highly Customizable Interface: Easily configure user-friendly screens and dashboards to prioritize the information that matters most to you.
* Dual Connectivity: Features full NMEA 2000 certification for modern digital integration and multiple analog inputs for connecting to traditional resistive sensors.
* Integrated GPS Functionality: A built-in GPS receiver provides essential navigation data, including speed over ground, course, and positioning, directly on the display.
* Robust Marine-Grade Construction: Engineered to withstand the harsh marine environment, ensuring reliable performance in all conditions.
* Intuitive One-Button Control: Navigate through all pages and settings effortlessly with a simple and responsive user interface, even with gloves on.
* Data Logging and Export: Records crucial trip and vessel data, which can be easily exported for analysis or log-keeping.

Screens

The VERATRON VMH 70 is built around a brilliant, optically bonded 7-inch display featuring advanced IPS (In-Plane Switching) TFT technology. This ensures you get stunningly vibrant colors and exceptional readability from any viewing angle, even when viewed from the side of the helm. Optical bonding eliminates the air gap between the glass and the display, which dramatically reduces internal reflections, prevents fogging due to temperature changes, and significantly enhances contrast. The screen´s surface is finished with an anti-glare coating, minimizing reflections from the sun and sky. With a powerful backlight, the display is perfectly sunlight-readable, providing a crisp, clear image even in the brightest direct sunlight.

Technical Specifications
* Display Size: 7 Inches
* Display Technology: IPS TFT with Optical Bonding
* Resolution: 800x480 Pixels
* Brightness: 1000 cd/m²
* Viewing Angle: 85° all directions
* Nominal Voltage: 12/24 V
* Connectivity: 1x NMEA 2000, 1x SAE J1939, 2x Analog Input (0-5V / 0-4k Ohm), 1x Frequency Input (0-4kHz), 1x 0-5V Output
* Protection Rating: IPX7 (Front and Rear)
* Dimensions: 191x119 x 23 mm (bezel)
