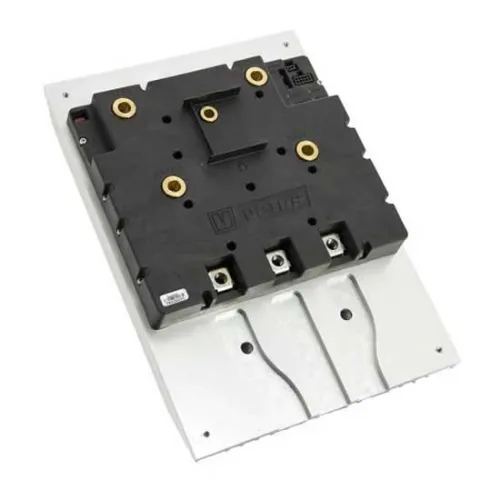

Vetus EAIR050 Motor Controller

VETUS EAIR050 Motor Controller | Intelligent Power for Electric Propulsion

Unlock the full potential of your VETUS electric propulsion system with the EAIR050 Motor Controller. As the central nervous system of the VETUS E-LINE inboard motor series, this advanced electronic accessory provides intelligent, efficient, and exceptionally reliable power management for a superior electric boating experience. Designed and engineered by VETUS for seamless integration, the EAIR050 ensures your vessel operates with optimal performance, extended range, and the whisper-quiet operation that defines modern marine electric propulsion.

The EAIR050 is one of the most critical components in the VETUS E-LINE ecosystem, translating battery power into precise and responsive motor control. Its primary benefit lies in its high-efficiency power conversion, which minimizes energy loss as heat and maximizes the usable range from your 48V battery bank. This means more time on the water and less time worrying about your state of charge.

Key Benefits:

* Optimized Efficiency for Maximum Range: The sophisticated internal electronics are engineered to deliver power with minimal waste, directly contributing to longer journey times and getting the most out of every charge cycle.
* Whisper-Quiet Operation: Featuring an actively controlled, low-noise fan, the Active Air Cooling system maintains ideal operating temperatures without disturbing the peace and quiet of electric boating. The controller only cools when necessary, conserving energy and reducing sound.
* Robust Marine-Grade Reliability: Built to withstand the demanding marine environment, the EAIR050 is equipped with a comprehensive suite of protections, including safeguards against over-temperature, over-voltage, and under-voltage, ensuring the longevity of both the controller and your motor.
* Seamless System Integration: As a V-CAN certified device, this controller communicates flawlessly with all other VETUS CAN bus components, such as the MPE1KB key switch, MPE1MB monitoring panel, and VETUS electronic throttles, for a true plug-and-play installation and unified system monitoring.

Main Features:

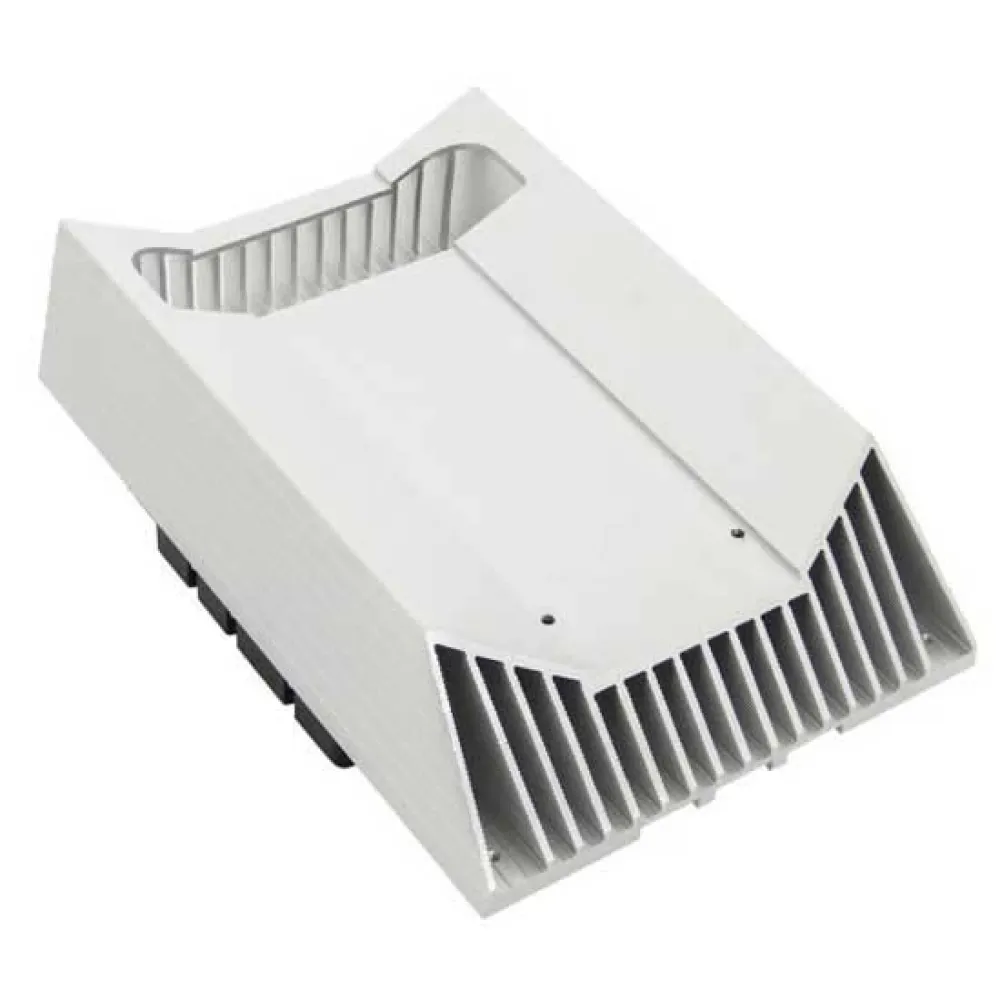

These advanced Controllers are distinguished by a set of purpose-built features designed for performance and safety. The Active Air Cooling system is a core feature, using an integrated fan to force air across the heatsink. This allows the controller to sustain its peak power output for longer periods without overheating, crucial for demanding manoeuvres or navigating strong currents. The proprietary V-CAN communication protocol ensures error-free data transmission and simple connectivity, reducing installation complexity and providing a single source of truth for system status. Its compact and lightweight design allows for flexible installation in tight engine room spaces, while its IP65 rating ensures it is protected against dust ingress and low-pressure water jets.

Technical Specifications:

* Model: EAIR050
* Nominal Voltage: 48 V DC
* Nominal Current: 150 A
* Peak Current (2 minutes): 350 A
* Cooling Method: Active Air Cooling (integrated fan)
* Communication Protocol: V-CAN (CAN bus certified)
* IP Protection Rating: IP65
* Compatibility: Specifically designed for VETUS E-LINE 48V inboard motor systems
* Dimensions (L x W x H): 231x200 x 89 mm
* Weight: 3.1 kg

Choose the VETUS EAIR050 Motor Controller for unparalleled control, safety, and efficiency. It is the definitive choice for powering your VETUS E-LINE system, guaranteeing the performance and reliability expected from a world-leading marine brand
