VETUS PWLK Second Generation Motor Instrument Panel Wiring

Category: Electronics
Subcategory: Electrical Connections

---

VETUS PWLK Second Generation Motor Instrument Panel Wiring | The Ultimate Plug-and-Play Solution for Marine Engine Monitoring

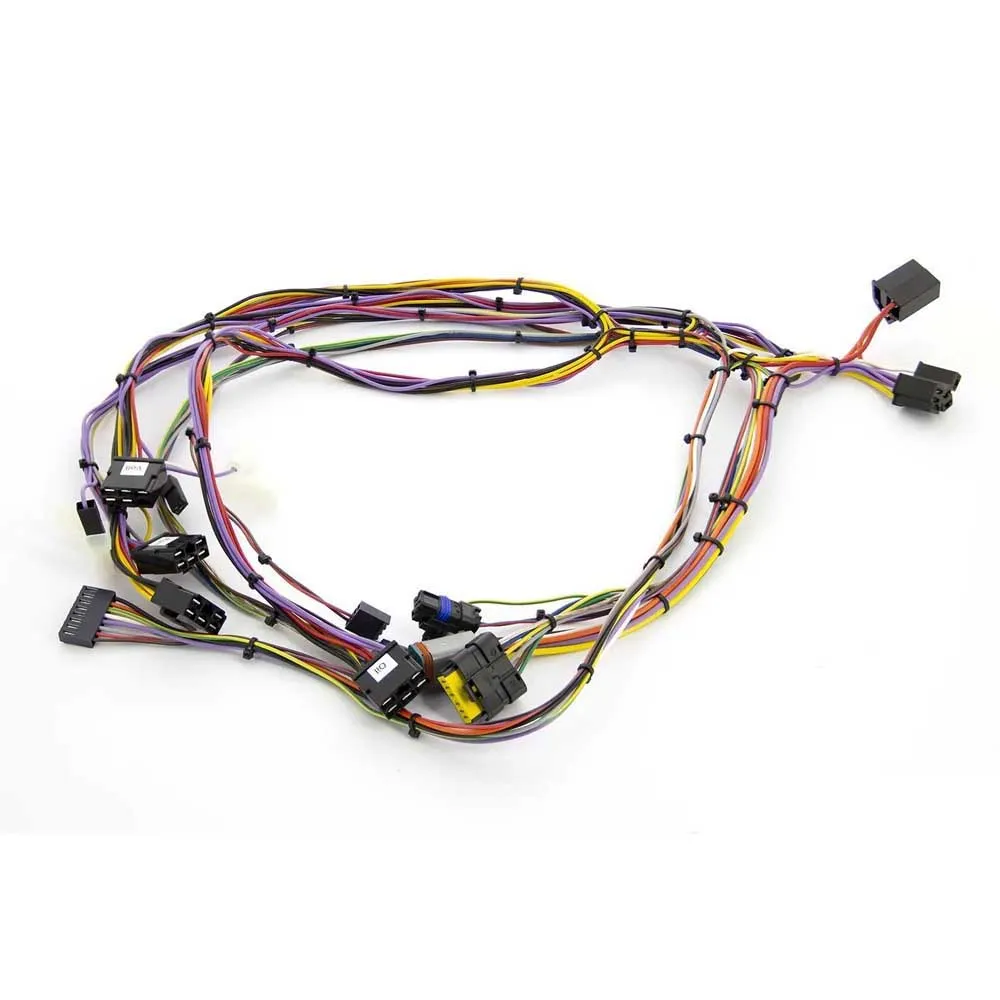

Streamline the critical connection between your VETUS engine and instrument panel with the advanced VETUS PWLK Second Generation Motor Instrument Panel Wiring loom. Engineered for simplicity, reliability, and the harsh marine environment, this complete wiring harness eliminates the complexity and potential for error associated with traditional, manual wiring. By providing a single, integrated solution, the PWLK system dramatically reduces installation time, ensuring a professional, secure, and water-resistant connection for flawless engine monitoring and control. It is the definitive choice for boat builders and owners who demand uncompromising quality and peace of mind on the water.

The core benefit of the VETUS PWLK system lies in its effortless, plug-and-play design. Forget the tedious and time-consuming process of cutting, stripping, and crimping individual wires. This pre-fabricated harness features keyed, multi-pin connectors that make incorrect connections impossible, safeguarding your valuable engine and electronic instruments from potential damage caused by miswiring. This error-proof approach not only enhances safety but also provides a clean, organized, and easily serviceable installation.

Key Benefits:

* Effortless & Rapid Installation: The plug-and-play connectors reduce installation time from hours to minutes. Simply connect the loom to the engine, the instrument panel, and the individual gauges for a complete, functional system.
* Unmatched Reliability & Durability: Designed specifically for marine use, the system features high-quality, waterproof connectors that protect against moisture, saltwater corrosion, and vibration, ensuring a stable and long-lasting electrical connection.
* Error-Proof Connections: Keyed connectors ensure that each component can only be plugged into its correct counterpart, eliminating the risk of miswiring and subsequent damage to your engine´s electronic systems.
* Complete System Integration: The PWLK is engineered to work seamlessly with VETUS engines and second-generation instrument panels, providing a fully integrated and factory-tested solution for monitoring all critical engine parameters.

Main Features:

* Second Generation Design: An evolution of the trusted VETUS wiring system, featuring enhanced connectors and optimized integration for modern VETUS engine and instrument ranges.
* Pre-Wired for Standard Instruments: The harness comes ready to connect to all essential VETUS gauges, including the tachometer (with hour meter), voltmeter, coolant temperature gauge, and oil pressure gauge.
* Integrated Warning Signal Connections: Includes dedicated connections for both audible (buzzer) and visual (LED) warning signals for critical alerts such as high coolant temperature and low oil pressure.
* Glow Plug & Ignition Switch Ready: The loom incorporates all necessary wiring for the ignition switch and pre-heating/glow plug functions, centralizing all engine control wiring into one neat package.
* Modular and Extendable: The system is designed for flexibility, allowing for the use of extension cables to accommodate various boat sizes and helm station layouts without compromising signal integrity.

---

Cables & Technical Specifications

The VETUS PWLK system is built around robust, marine-grade Cables designed for longevity and performance. The main harness provides a standard length suitable for most common installations, while a comprehensive range of extension cables offers the versatility needed for larger vessels or complex routing paths. All Cables are pre-terminated with secure, waterproof multi-pin connectors.

* Product Code: PWLK
* System Type: Second Generation Engine-to-Instrument Panel Wiring Harness
* Standard Harness Length: 3 meters
* Available Extension Cable Lengths: 2, 3, 5, 7, 10, and 15 meters (sold separately)

* Tachometer / Engine Hour Meter
* Voltmeter
* Oil Pressure Gauge
* Coolant Temperature Gauge

* Ignition Key Switch
* Glow Plug / Pre-Heat Function

* Audible Alarm (Buzzer)
* Visual Warning Lights (LEDs) for Temperature and Oil Pressure
* Connector Type: Waterproof, Keyed Multi-Pin Connectors
* Compatibility: Specifically designed for VETUS second-generation instrument panels and compatible VETUS marine diesel engines
