Wago 2 terminals connection terminal

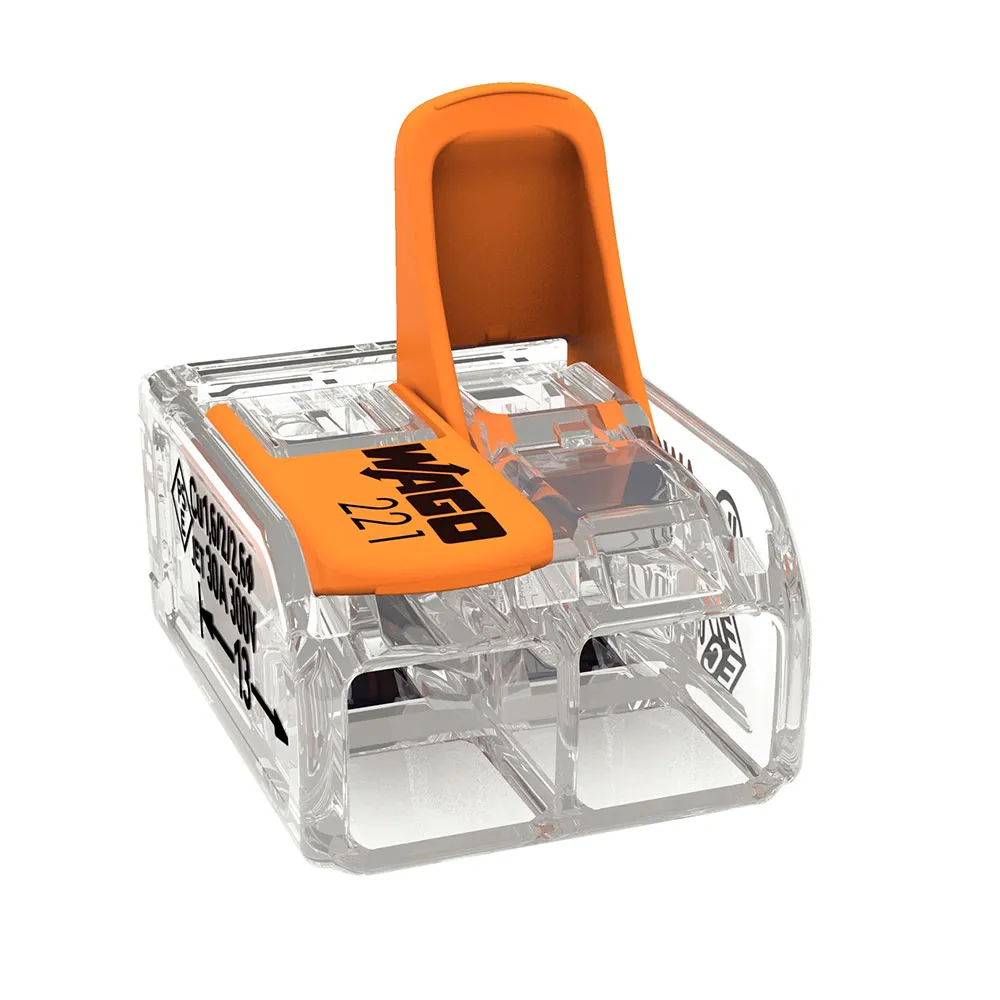

WAGO 2-Conductor Compact Splicing Connector | Lever-Operated Terminals

Revolutionize your electrical work with the WAGO 2-Conductor Compact Splicing Connector, the industry-leading solution for creating fast, easy, and exceptionally reliable electrical connections. Engineered for professionals and DIY enthusiasts alike, this innovative terminal block eliminates the need for twisting, taping, or complex tools, dramatically reducing installation time while increasing safety and performance. Its compact and transparent design makes it the ultimate choice for a wide range of applications, from residential wiring in junction boxes to complex control cabinet assemblies.

Lever-operated terminal blocks for all types of conductors (multi-strand, single-strand, flexible, rigid).

Very practical and ideal for all your electrical installations.

Up to 32 A/450 V.

Key Benefits:

* Unmatched Speed and Simplicity: Experience a tool-free installation process that is up to 50% faster than traditional methods. Simply lift the operating lever, insert a stripped conductor, and push the lever back down. The connection is secure, correct, and completed in seconds.
* Universal Conductor Compatibility: These versatile terminals are designed to accept a vast range of wire types and sizes. Effortlessly connect solid, stranded, and fine-stranded conductors from 0.14 to 4 mm² (24–12 AWG) in the same connector, providing maximum flexibility for any project.
* Enhanced Safety and Reliability: The transparent housing allows for instant visual inspection, so you can confirm that conductors are fully inserted and properly stripped. The integrated CAGE CLAMP® technology provides a vibration-proof, gas-tight, and maintenance-free connection, ensuring long-term stability and preventing loose wires.
* Compact and Reusable: With a significantly smaller footprint compared to previous models, these connectors are perfect for saving space in crowded junction boxes and enclosures. The robust lever mechanism allows the connectors to be easily opened and reused multiple times without any loss in connection quality, making them both economical and sustainable.

Main Features:

* Intuitive and ergonomic lever actuation for effortless, tool-free wire termination.
* A fully transparent body for quick and easy visual verification of proper conductor insertion and strip length.
* Two conveniently located test ports, one in the wire entry direction and one on the opposite side, for simple testing with standard probes, even when installed.
* Proven CAGE CLAMP® spring pressure connection technology ensures a consistently strong and reliable clamping force on the conductor.
* A slim, space-saving design that facilitates installation in tight and hard-to-reach areas.

Technical Specifications:

* Attribute: Terminals: 2-Conductor Lever-Operated Splicing Connector
* Number of Connection Points: 2
* Nominal Voltage (II / 2): 450 V
* Rated Surge Voltage (II / 2): 4 kV
* Rated Current: 32 A
* Connection Technology: CAGE CLAMP®
* Actuation Type: Lever
* Connectable Conductor Materials: Copper
* Solid Conductor Range: 0.2 … 4 mm² / 24 … 12 AWG
* Stranded Conductor Range: 0.2 … 4 mm² / 24 … 12 AWG
* Fine-Stranded Conductor Range: 0.14 … 4 mm² / 24 … 12 AWG
* Required Strip Length: 11 mm / 0.43 inch
* Maximum Continuous Service Temperature: 85°C (T85)

Whether you are a professional electrician demanding efficiency and safety on the job site, a panel builder requiring high-density wiring, or a DIYer tackling a home improvement project, the WAGO 2-conductor connection terminal delivers unparalleled performance, security, and ease of use for all your electrical connections
