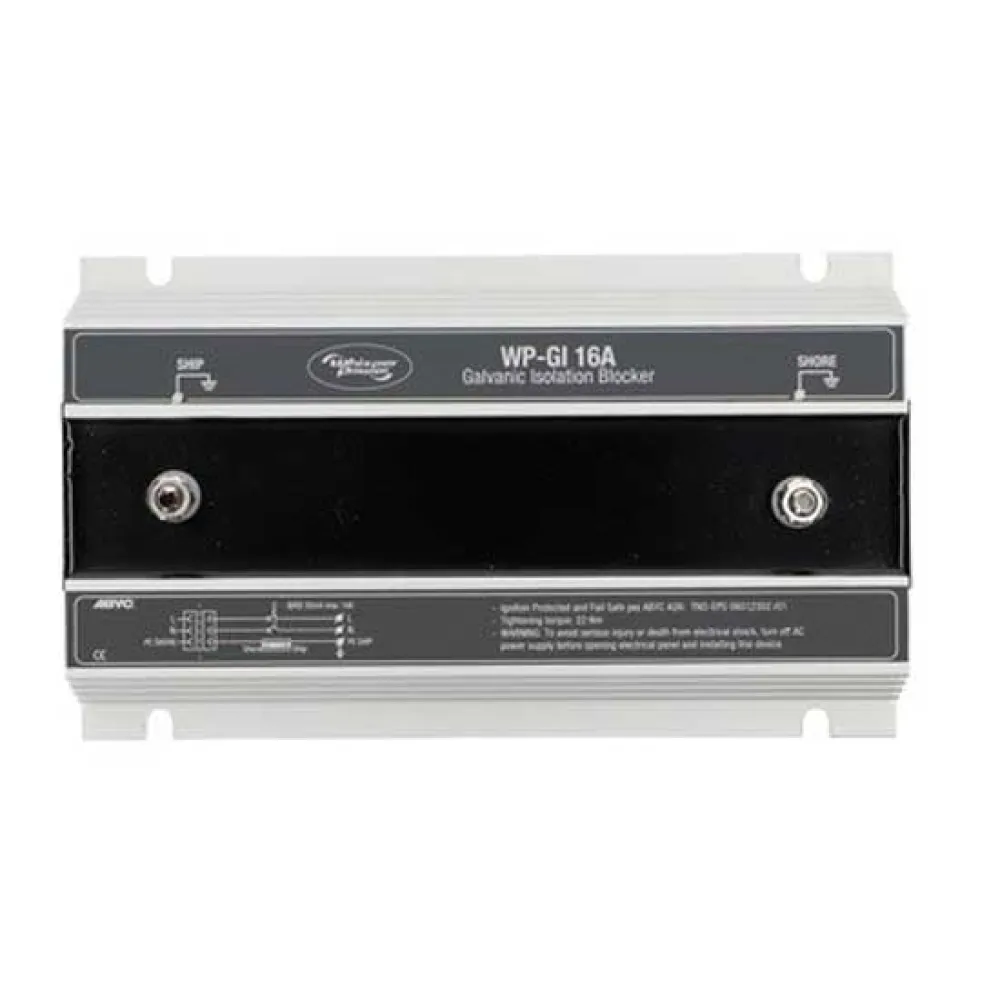

Whisper Power WP GI galvanic isolator 16A

WhisperPower WP-GI 16A Galvanic Isolator | Ultimate Corrosion Protection for Your Vessel

Ensure the longevity and safety of your marine or vehicular electrical system with the WhisperPower WP-GI 16A Galvanic Isolator. Designed for discerning owners who demand the best protection, this advanced device is the essential safeguard against galvanic corrosion, a silent and destructive force that can severely damage underwater metal parts like hulls, propellers, and shafts. By connecting your boat or vehicle to shore power, you inadvertently create an electrical path that can accelerate this costly corrosion. The WP-GI effectively stops this in its tracks, preserving your investment and providing complete peace of mind.

The primary function of these state-of-the-art isolators is to block the low-voltage DC currents responsible for galvanic corrosion, while simultaneously allowing the critical AC safety ground to function correctly. This ensures you remain fully protected from electrical faults without compromising the integrity of your vessel´s metallic components.

Key Benefits:

* Complete Corrosion Prevention: Actively prevents destructive galvanic currents from flowing between your vessel and the shore power connection, safeguarding your hull, propeller, shafts, and other submerged metal parts from premature decay.
* Enhanced Safety: Unlike simply disconnecting the ground wire, the WP-GI maintains a continuous, compliant safety earth connection, ensuring onboard circuit breakers and shore-side RCDs/GFCI´s operate correctly in the event of an AC fault.
* Superior Performance: Utilizing advanced MOSFET semiconductor technology, the WP-GI operates with no voltage drop, a significant advantage over older diode-based isolators which can cause issues with onboard electrical systems.
* "Fit and Forget" Reliability: Engineered for maintenance-free operation, this robust unit is a one-time installation that provides continuous protection without requiring any user intervention or servicing.
* Effortless Installation: Featuring a compact and lightweight design, the WP-GI is easy to integrate into existing AC systems. It is simply installed in-line with the shore power ground wire, making for a quick and straightforward upgrade.

Main Features:

* Based on high-performance semiconductor technology for maximum efficiency and reliability.
* Handles a continuous AC current of 16A, with a very high peak current rating to withstand fault conditions.
* Universal voltage compatibility, automatically working with both 115V and 230V AC systems.
* Fully compliant with key international standards, including CE and ABYC A-28, for guaranteed performance and safety.
* Robust, non-corrosive housing designed to withstand the harsh marine environment.

Technical Specifications:

* Model: WhisperPower WP-GI Galvanic Isolator
* Attribute: Isolators
* Max. Shore Current: 16 Amps
* Operating Voltage: 115 / 230 VAC, 50/60 Hz
* Technology: MOSFET Semiconductor
* Peak Current Rating (50-60 Hz sine wave, 20ms): 1600 A
* Connections: M6 Bolts
* Dimensions (L x W x H): 202x115 x 82 mm
* Weight: 1.2 kg
* Compliance: CE, ABYC A-28

Protect your valuable asset from the hidden dangers of shore power. Equip your system with the WhisperPower WP-GI 16A Galvanic Isolator and sail with the confidence that your vessel is protected by the best
