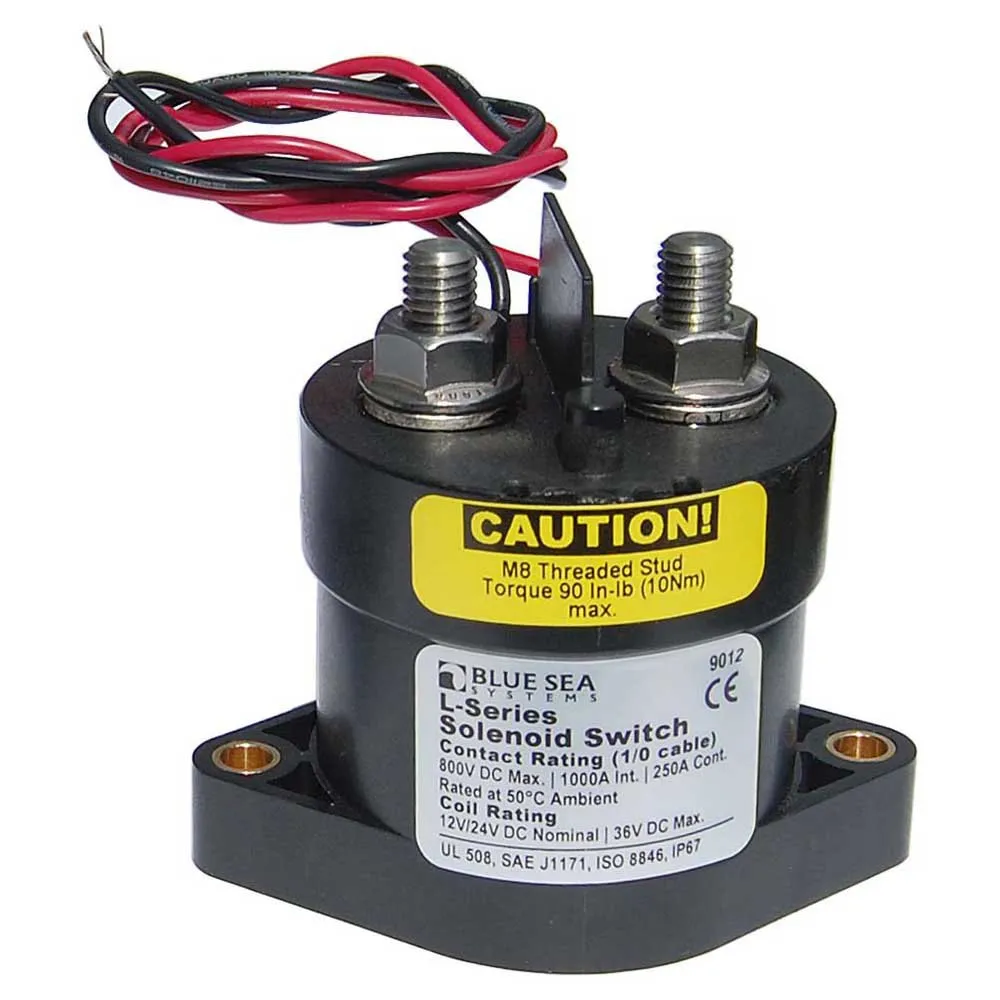

Blue Sea Systems L-Series Switch

Features:

- Hermetically sealed contacts / vaporproof
- Ignition protected - safe for installation aboard gasoline powered boats
- Activated by an ON-OFF switch mounted anywhere
- integrated coil control minimizes heating and amperage draw
- 450 Amp Class
- Designed for 12 or 24 Volt systems
- Ignition protected -- safe for installation aboard gasoline-powered boats
- Activated by a low amperage ON-OFF switch mounted anywhere


Specifications:

- Control Circuit Connection: 20 AWG Tinned Wire
- Nominal Voltage: 12V DC: 24V DC
- Coil Function: Normally Open
- Mounting: #10
- Operating Amperage Current: 3.6A when changing state
- Amperage Operating Current continuous: 0.13A @ 12 V: 0.07A @ 24 V
- Input Voltage: 9-36V DC
- Terminal Stud Torque: 90 in-lb (10.17 Nm)

Continuous Rating:
- 250A Using 1/0 Wire Size
- 300A Using 2/0 Wire Size
- 400A Using 4/0 Wire Size
- 450A Using 2 x (2/0) Wire Size

Intermittent Rating The maximum amount of current a switch is designed to carry for a minimum of a designated period of time.
- 275A (5 min) Using 1/0 Wire Size
- 400A (5 min) Using 2/0 Wire Size
- 500A (5 min) Using 4/0 Wire Size
- 600A (5 min) Using 2 x (2/0) Wire Size

Cranking Rating 30 sec Normally associated with ´cranking current´ which is the current required by the starter circuit prior to engine starting. The cranking current varies significantly during the starting cycle. Initially, there is a large surge of current required to overcome the inertia and compression of the engine. This surge can be two to four times the average cranking current. Once the engine is turning there are peaks and valleys as the pistons go through the compression and exhaust cycles. The cranking current rating is used for sizing batteries, cables, and battery switches.
- 1,000A with 1/0 cable
- 1000A DC

- Contact Form: SPST-NO
- Inrush Rating: 0.25 sec (10 repeats): 2000A
- Stud Material: Stainless Steel
- Terminal Stud: Serrated Flange Nut
- Terminal Stud Length: 0.66in (16.76 mm)
- Terminal Stud Size: 5/16´´ (M8)
- Weight: 1.00lb (0.45 kg)
