Blue Sea Systems ML Bistable Battery Switch Module 24V

Blue Sea Systems ML Bistable Battery Switch Module 24V - Model 7703

Category: Electronics
Subcategory: Electrical Connections
---

Experience unparalleled control and reliability for your 24V electrical system with the Blue Sea Systems ML-Series Bistable Battery Switch Module. Engineered for demanding marine and vehicle applications, this advanced remote battery switch provides a safe, efficient, and robust solution for managing high-amperage battery banks. It is the definitive choice for professionals and enthusiasts who refuse to compromise on the safety and performance of their electrical connections, protecting your investment from electrical issues and simplifying power management.

Key Benefits
* Exceptional Power Efficiency: The innovative bistable magnetic latch mechanism is a game-changer for power conservation. Unlike traditional solenoids that require constant power to stay engaged, this switch only consumes a minimal amount of current during the instant of switching. In both the ´ON´ and ´OFF´ states, it draws zero current, preserving your precious battery power for essential systems.
* Robust High-Amperage Switching: Designed to handle the most demanding loads, this module confidently manages high-capacity systems. With a continuous rating of 500A and the ability to handle intermittent loads up to 1450A for engine cranking, it provides the power and reliability needed for starting large engines and running heavy-duty equipment like inverters and windlasses without faltering.

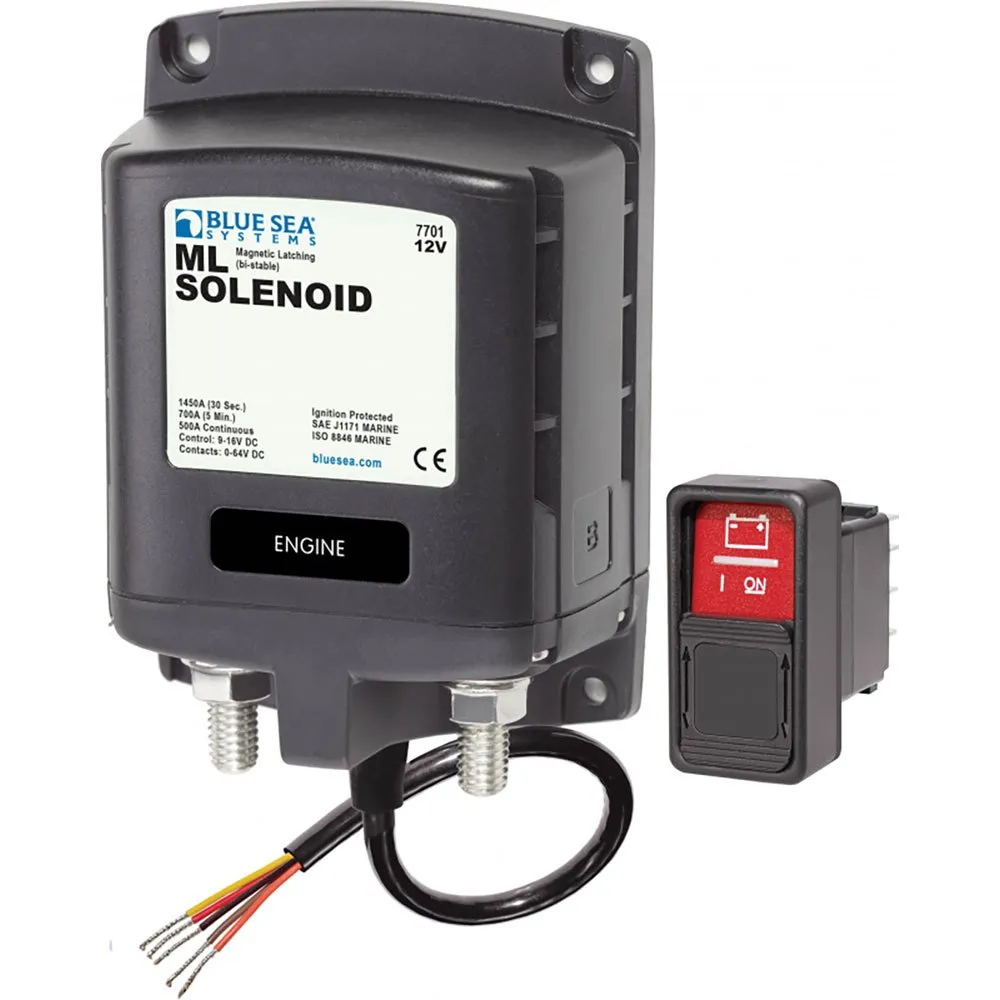

* Flexible Control with Manual Override: Gain total command over your power. The included ML-Series Contura Switch allows for convenient remote operation from your helm or dashboard. For maintenance, diagnostics, or emergencies, a prominent manual control knob on the unit provides a foolproof way to operate the switch, ensuring you are never left without control, even in the event of a control system failure.
* Built for Harsh Environments: Constructed to withstand the rigors of marine and automotive environments, the unit is fully sealed to an IP66 rating, protecting internal components from water, dust, and corrosion. Its explosion-proof and ignition-protected design (conforming to ISO 8846 and SAE J1171 standards) makes it safe for installation in engine rooms and gasoline-powered boat compartments.

Main Features

At the heart of these advanced switch modules is an innovative design focused on safety and longevity. The core feature is the bistable, or magnetic latching, solenoid which ensures minimal power draw and cool operation. High-reliability switching of live loads is guaranteed by the use of premium silver alloy contacts, which resist arcing and provide a long service life. An integrated LED output on the module provides a clear visual indication of the switch state, which can be wired to a remote panel for at-a-glance monitoring. The tactile manual override knob offers confident control and is designed to be lock-out/tag-out compatible for servicing.
---

Solenoid Series ML: Manufacturer´s Details

Solenoid Series ML Fully sealed, bistable operation, the magnetic latch does not draw current in the ‘ON´ or ‘OFF´ state, it only draws current when the switch state is changed.

Silver alloy contacts offer high reliability for switching live loads.

Includes ML series Contura Switch.

Explosion proof.

Continuous Rating 500A Max - Intermittent Rating 700A Max - Cranking Rating 30 sec.

1450A Max.

Original ref.

7703.
---

Technical Specifications
* Original Reference: 7703
* Operating Voltage: 24V DC
* Switching Mechanism: Bistable Magnetic Latch Solenoid
* Continuous Rating: 500 Amps
* Intermittent Rating (5 min): 700 Amps
* Cranking Rating (30 sec): 1450 Amps
* Contact Material: Silver Alloy
* Included Control: ML-Series Contura Switch for remote operation
* Safety Standards: Ignition Protected per ISO 8846 / SAE J1171, Explosion Proof
* Ingress Protection: IP66
* Terminal Stud Size: M10

Upgrade your vessel or vehicle with the Blue Sea Systems ML-Series Bistable Battery Switch and invest in the ultimate peace of mind for your high-amperage electrical connections
