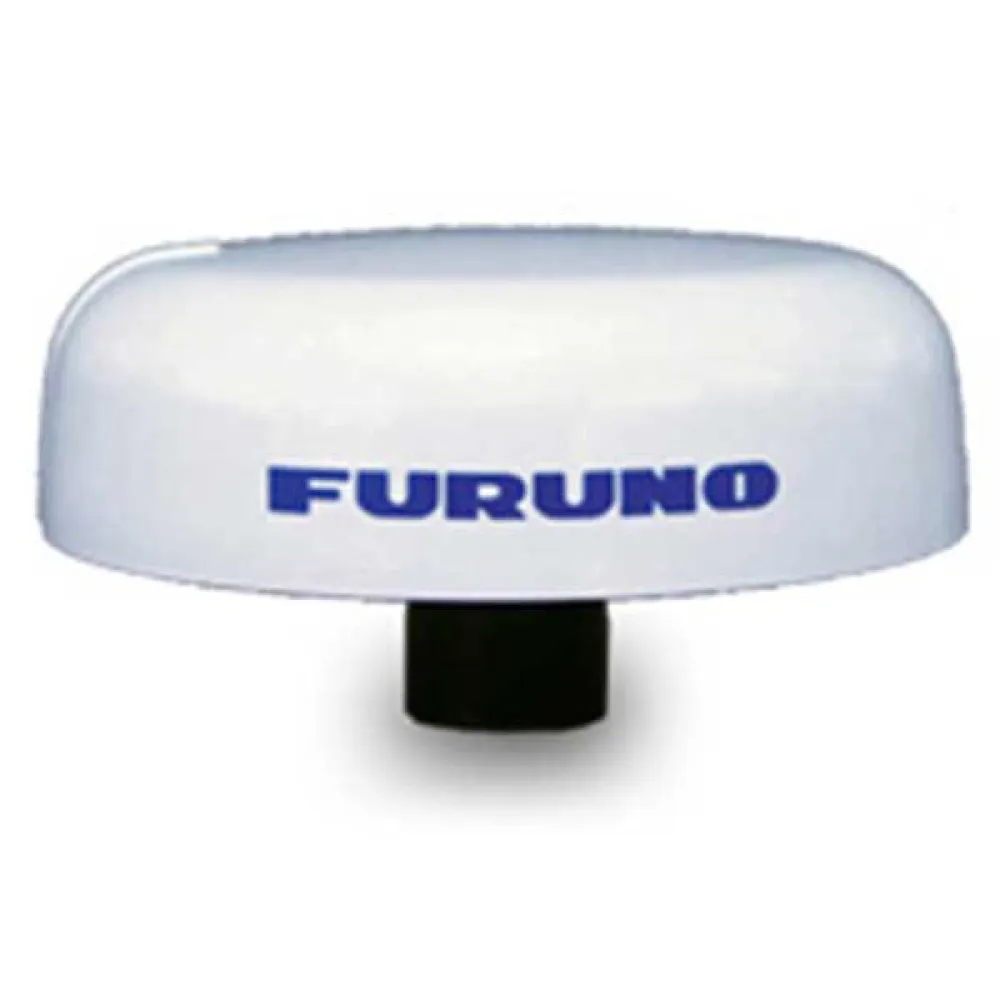

Furuno GPS GP-330B Receiver

FURUNO GPS GP-330B Receiver | High-Performance Marine GPS Antenna

Enhance your vessel´s navigation capabilities with the FURUNO GPS GP-330B Receiver, a state-of-the-art antenna engineered for uncompromising performance and steadfast reliability in the demanding marine environment. Designed as a crucial component for any modern integrated navigation system, this NMEA2000® certified sensor delivers unparalleled position accuracy to your network of marine electronics, including chart plotters, radar, autopilots, and multi-function displays (MFDs).

The FURUNO GPS GP-330B Receiver White is a high-performance GPS receiver designed for marine use. This compact and durable device is capable of providing accurate positioning information for ships, boats, and other marine vessels. The GPS GP-330B features a high-sensitivity antenna that ensures reliable and precise positioning even in challenging environments. Its compact white design makes it easy to install on any vessel, and its rugged construction ensures it can withstand the harsh conditions of the marine environment. This GPS receiver is a reliable and essential tool for navigation and positioning on the water.

Built upon FURUNO´s legacy of maritime excellence, the GP-330B utilizes a powerful 72-channel parallel tracking receiver to provide rapid and continuous position updates. Its capability to receive signals from Satellite-Based Augmentation Systems (SBAS) like WAAS (Wide Area Augmentation System), EGNOS (European Geostationary Navigation Overlay Service), and MSAS (MTSAT Satellite-Augmentation System) dramatically improves its accuracy, allowing for pinpoint positioning that inspires confidence during coastal cruising, offshore passages, and complex harbor maneuvers. Its low-profile, waterproof enclosure is designed for a simple and clean installation, offering flexible mounting options on a pole or deck to achieve the best possible view of the sky. The unit´s efficient design results in very low power consumption, drawing its power directly from the NMEA2000® backbone for a streamlined, single-cable installation.

Main Features
* High-Sensitivity 72-Channel GPS Receiver
* NMEA2000® Certified for Seamless Plug-and-Play Network Integration
* WAAS, EGNOS, and MSAS Ready for Superior Position Accuracy
* Rapid Signal Acquisition and Continuous High-Rate Position Updates
* Low Power Consumption for Efficient Onboard Operation
* IP56 Waterproof and Rugged Housing Built for Marine Conditions
* Compact, Low-Profile Design for Flexible and Easy Installation
* CAN bus / NMEA2000® Data Output Protocol

Technical Specifications

Attribute: Receivers
* Receiver Type: GPS (72 channels, L1 C/A code), SBAS (WAAS/EGNOS/MSAS)
* GPS: Approximately 3 meters
* MSAS: Approximately 2 meters
* WAAS: Approximately 1.5 meters
* Update Interval: 1 Hz (1 second)
* Output Protocol: CAN bus / NMEA2000®
* Power Supply: 15 VDC (Supplied via NMEA2000® network)
* Power Consumption: Less than 2 Watts
* Waterproofing Standard: IP56
* Operating Temperature Range: -25°C to +70°C
