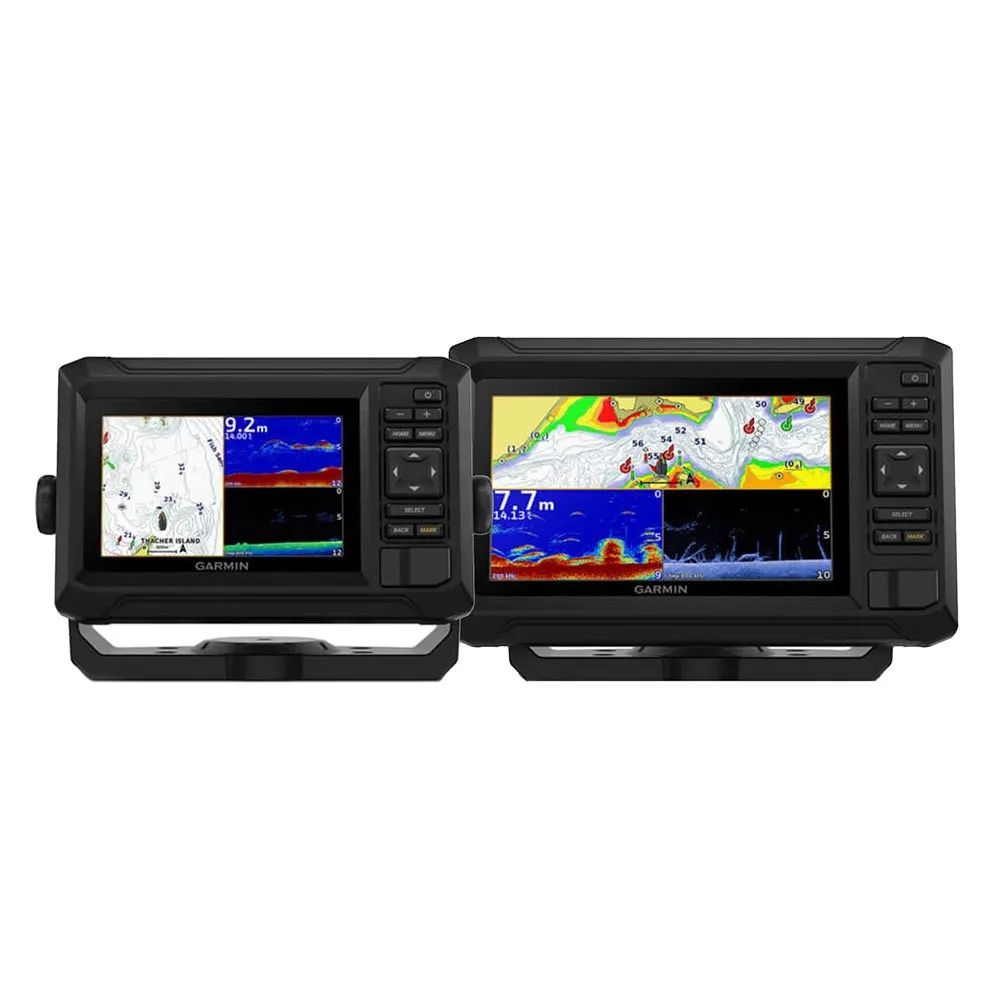

Garmin Echomap UHD2 52V plotter with transducer&cartography

Fish like a local with the 5´´ or 7´´ ECHOMAP UHD2 chart plotters. See clear, sharp fish arches with Garmin traditional sonar. Use ClearVü™™ scanning sonar featuring vivid color palettes for clear, high-contrast views below your boat. Know the waters you´re in as if you grew up fishing them by using built-in LakeVü™™™ 93 inland maps or BlueChart g3 coastal charts. It also supports Garmin Navionics+™™ and Garmin Navionics Vision+™™ marine cartography. Use built-in Wi-Fi® connectivity to share sonar, waypoints and routes with another compatible Garmin chartplotter. You can also pair with the free all-in-one Active Captain app on a compatible smartphone for access to the One Chart™ feature, software updates and more.

Key Features:

Design:
- A new industrial design resembles the full ECHOMAP aesthetic of the higher-end ECHOMAP products.

User Interface (ui):
- Both the 5´´ and 7´´ keyed products have a brand new Ul with new, improved graphics and homepage, which look more modern and include additional features, settings and capabilities.

Built-in Wi-fi® Connectivity:
- Built-in Wi-Fi provides wireless sharing of sonar (traditional and ClearVü™) and user data (waypoints, routes) from one unit to another.

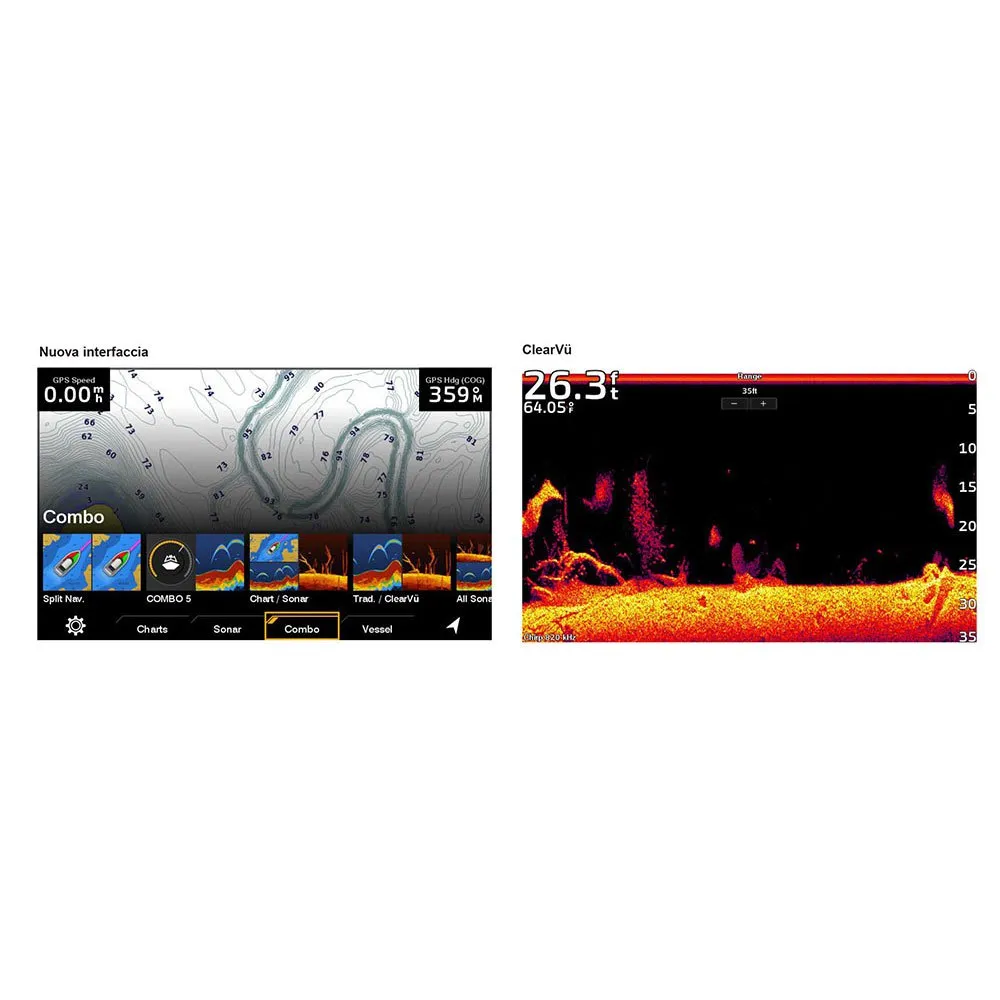

Vivid Sonar:
- High-contrast scanning sonar color palettes make it easier to better distinguish fish and structure.

Mapping:
- Enjoy built-in Blue Chart® or LakeVü™ 93 cartography with Navionics® data; also supports Garmin Navionics+™™ and Garmin Navionics Vision+™™ mapping and daily updates.

Quickdraw Contours Software:
- Quickdraw Contours software creates user-generated mapping for always-on fishing contours and bottom structure of users´ favorite fishing spots.

Active captain App:
- Get easy software updates and chart updates/upgrades via the Active Captain app.

Specifications:

- Physical dimensions: 188 x 122 x 61.5 mm (7.8´´ x 4.8´´ x 2.4´´)
- Display size: 5´´ dia 109 x 65.8 mm (4.3´´ x 2.7´´):
- Resolution: 800 x 480 pixels
- Weight: 1.1 lbs(0.5kg)
- Water rating: IPX7
- Has built-in receiver: Yes
- Built-in receiver Hz: 5 Hz
- Blue Chart g3 and Bluechart® g3 Vision: Yes
- Lake Vü g3 and Lake Vü g3 Ultra: Yes
- Garmin Navionics+™™ and Garmin Navionics Vision+ TM: Yes
- Auto Guidance technology: Yes, with supported mapping
- Card slot: 1 microSD™™ card; 32 GB maximum size
- Waypoints: 5,000:
- Track points: 50,000
- Tracks: 50 saved tracks
- Routes: 100
- Sailing features: Yes
- Built-in sonar: Yes
- Traditional: Yes
- ClearVü™™ sonar: Yes
- Sonar frequencies: Traditional: 50/200, 77/200, 83/200 kHz Single channel CHIRP: from 40 to 250 kHz Garmin ClearVü: 260/455/800/1200 kHz
- 4-pin transducer ports: Yes,1
- Wi-Fi connectivity (local): Yes
