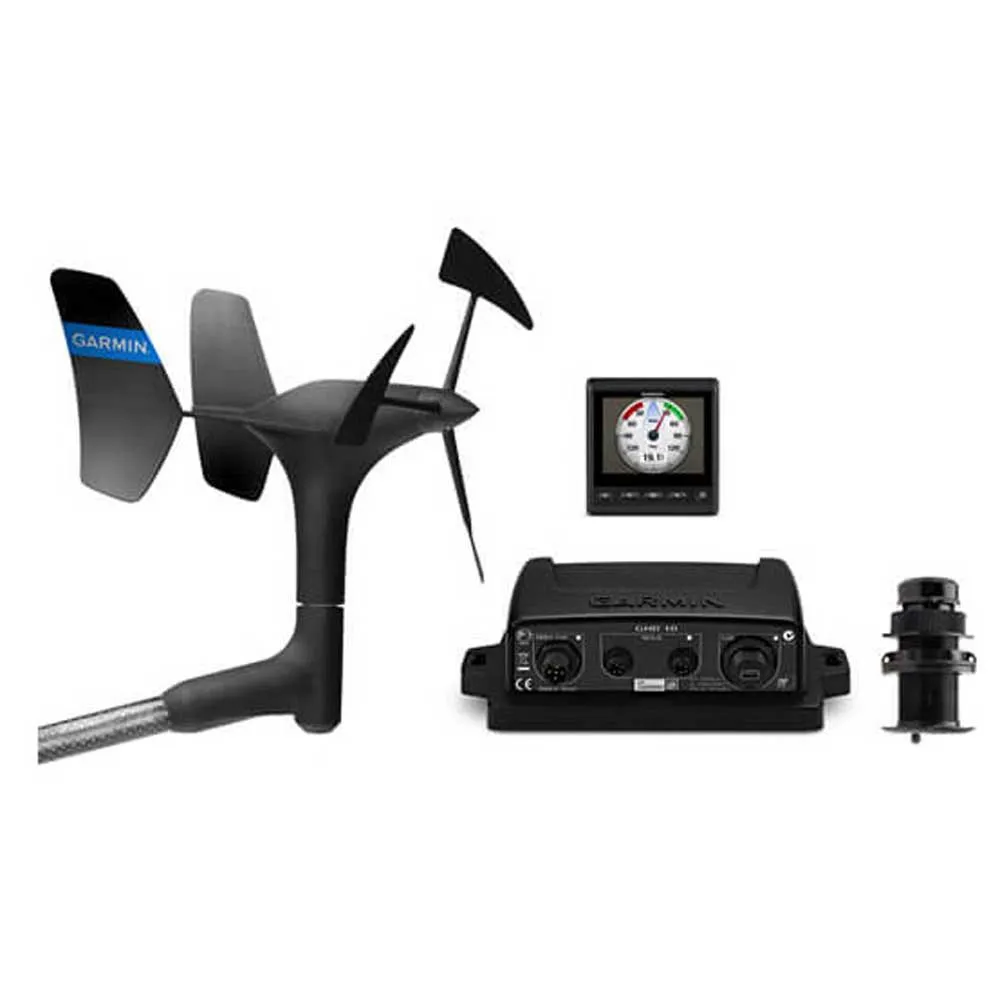

Garmin GMI™ Start Wired Sail Pack

The perfect foundation for your new on-board instrument network
Includes GMI 20 marine instrument, gWind ™ transducer and Airmar ® DST810 transducer
The GMI 20 instrument features a bright, high-visibility 4-inch color display with a rugged, anti-reflective glass finish
The gWind transducer features a double-fin design with a three-blade propeller
DST810 intelligent thru-hull transducer provides data such as depth and speed and water temperature, and enables attitude detection for pitch / roll and trim / heel inputs
Wireless connectivity to devices with Bluetooth ® allows calibration of the DST810 directly through the application of Airmar Cast
Simple plug-and-play installation and integration with Garmin chartplotters over the NMEA 2000 ® network
The perfect base or the complete pack
With GMI Wired Start Pack 52, you will have all the necessary equipment to obtain information about wind and water. If you are interested in installing more than one instrument on your network, this is the perfect starter pack. By using the NMEA 2000 network, it´s easy to expand with as many instruments as you want.

GMI 20 nautical instrument
The GMI 20´s digital marine instrument display is perfectly designed for sailing and motor boats. Its large, bright 4-inch color display with extra-large digits is easy to read from a distance and offers a 170-degree viewing angle. It is designed to clearly display data on depth, speed, wind, and more than 100 nautical and vessel parameters.

The GMI 20´s rugged glass screen prevents fogging and increases the level of contrast. Sunlight readability has been improved with a high-contrast color palette. For better nighttime visibility, you can choose from a red / black, green / black color palette, or normal night mode along with a dimmer control. You have the option to set the automatic screen change to automatically scroll through the pages without you having to do anything. This is especially useful for boaters as it allows them to install the unit in a wide variety of locations on the boat. The default profiles can be customized to suit sailing or motor sailing, fishing, specific engine / fuel requirements, and other specific user profiles.

GWind transducer
GWind transducer incorporates triple- blade propeller dual-fin technology for more accurate true wind speed (TWS) in light winds while the dual-fin design provides a more stable true wind angle (TWA). The three-blade propeller, unlike the curved edge design, is always effective. Along with optical reading, this transducer provides superior accuracy in light winds and excellent linearity.

Airmar DST810 Thru-hull Smart Transducer
The DST810 combines accurate depth, speed and temperature data with attitude detection for pitch / roll and trim / list data, which it provides to the NMEA 2000 network and the GNX ™ 20 instrument. This multi-sensor transducer detects depths up to 100 , 6 meters (330 feet), offers a fast 5 Hz water speed signal output, and has an operating frequency of 235 kHz with a fan-shaped beam width of 10 x 44 degrees. Additionally, wireless connectivity to BLUETOOTH technology devices allows the DST810 transducer to be calibrated directly through the Airmar Cast app. Advanced speed calibration works with different heel angles and speeds.

Unit dimensions (width x height): 354 x 610 mm (13.6 x 24)
Weight: 260g
Cable length: 25 m
Waterproof: yes (IPX6¹)
Temperature range: -15 ° C to 70 ° C (5 ° F to 158 ° F)
Storage temperature: -20 ° C to 80 ° C (-4 ° F to 176 ° F)
Voltage range: 9 to 16 V
Power consumption: 0.33 W
Typical current draw at 12 Vdc: 28 mA
Compass Safe Distance: N / A
Precision angle: greater than ± 1.5 °
Speed: better by ± 3%
Wind speed range: 0.8-90 knots (0.4-50 m / s)
NMEA 2000® Load Equivalence Number (LEN): N / A
Wireless connectivity: no

In the box:

Pack that offers information on wind, depth and speed

gWind transducer
GMI 20
GND 10
DST810 smart thru-hull transducer
NMEA 2000 Drop Cable (2m)
NMEA 2000 T-connector
Mast cable with female connector (25 m)
Nexus network cable (5 m, straight connector)
Nexus Field Installable Female Connector
Mast mounting bracket
Mounting components
Documentation
Pack that offers information on wind, depth and speed with GNX 20

gWind transducer

GNX 20
GMI 20
GND 10
DST810 smart thru-hull transducer
NMEA 2000 Drop Cable (2m)
NMEA 2000 T-connector
Mast cable with female connector (25 m)
Nexus network cable (5 m, straight connector)
Nexus Field Installable Female Connector
Mast mounting bracket
Mounting components
Documentation
