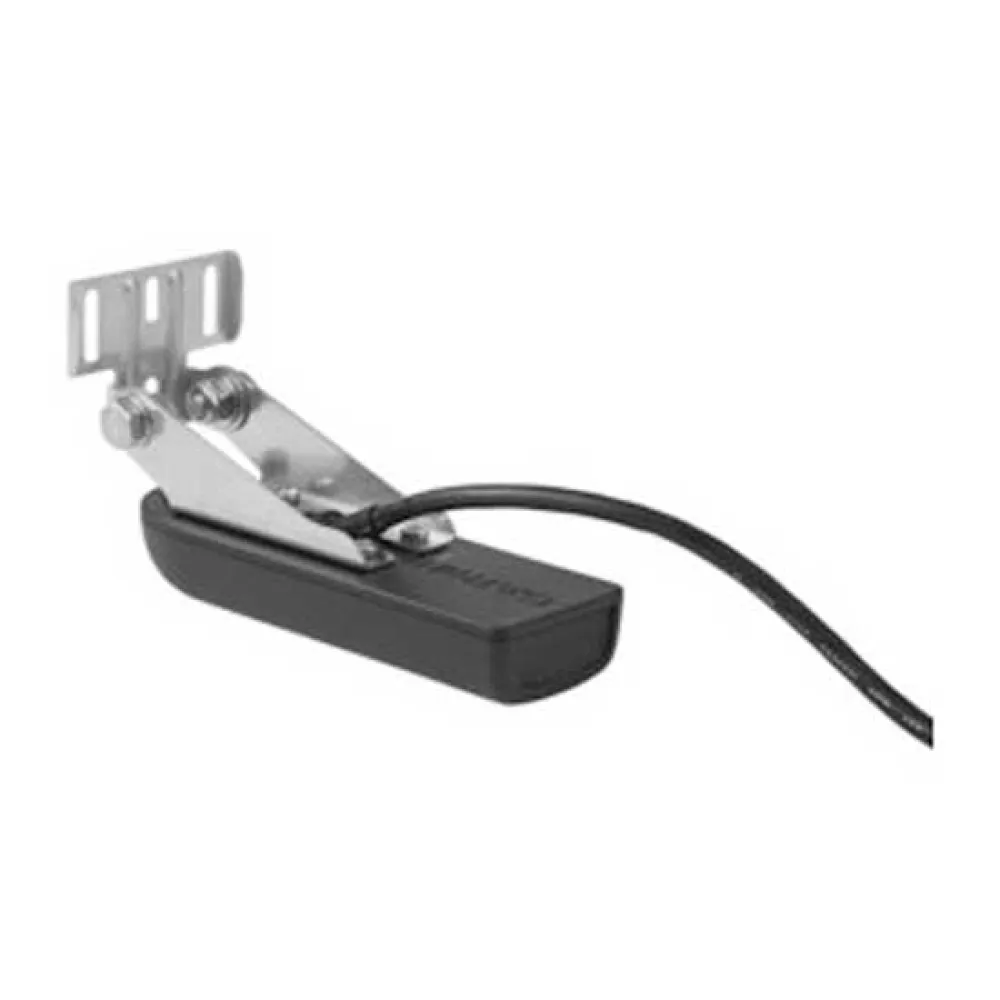

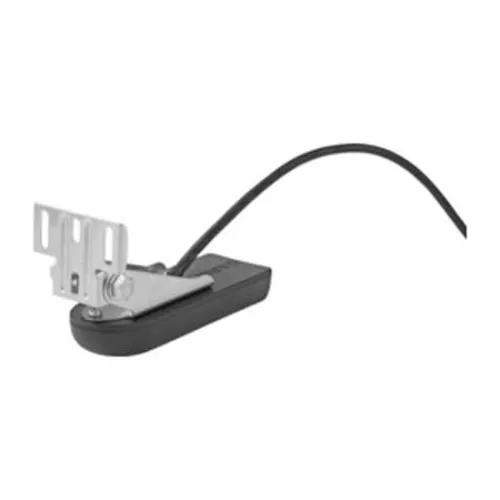

Garmin GT22HW TM Transducer

Gt22Hw Tm is a Garmin transducer. If you like freshwater fishing, this model is perfect for the traditional CHIRP and ClearView sound.

You install the transducer on the transom motor which will display the fish arches to have a clear structure. The equipment reaches a maximum depth of 800 feet.

The transducer body is 8-pin wideband and has a cable length of 20 feet. Its power is 250 W. The version can be installed on a trolling motor due to its compact size.

GT22HW-TM transducer is perfect for freshwater fishermen who want CHIRP traditional sonar and CHIRP ClearVü scanning sonar. This transom or trolling motor mounted transducer consistently displays clear and crisp fish arches with superior target separation as well as clear definition of structure below the boat.

The 8-pin transducer features high wide band CHIRP traditional sonar (150-240 kHz) and has a power rating of 250 W. The CHIRP ClearVü (455/800 kHz) element has a power rating of 350 W.

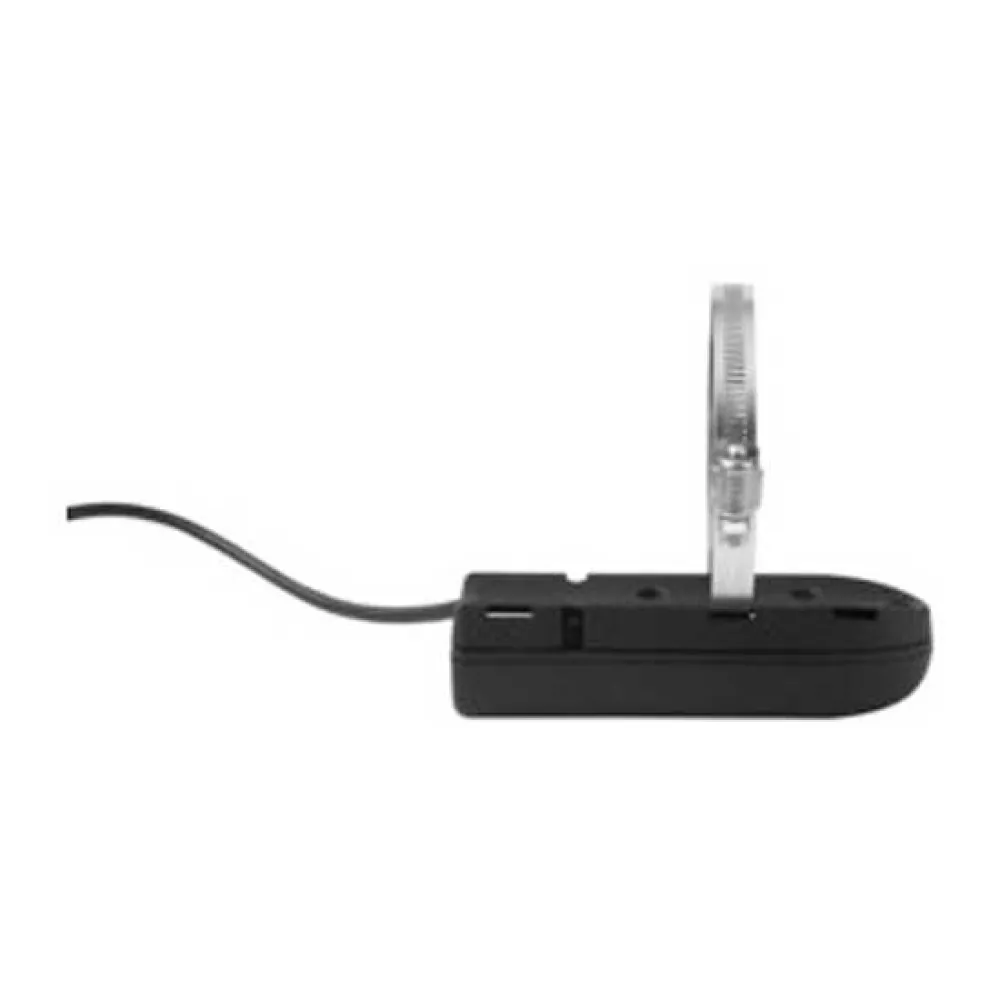

GT22HW-TM is ideal for mounting to a trolling motor due to its compact size. For installation, follow the included instructions carefully to avoid damaging your boat.


Specifications:

General
- Frequency: CHIRP High Wide (150-240 kHz); ClearVü CHIRP 455 kHz (425-485 kHz) & 800 kHz (790-850 kHz)
- Power: CHIRP Traditional 250 W; ClearVü 350 W
- Beamwidth: Traditional (24-16); ClearVü (2.0x50 @ 455 kHz) & (1.0x30 @ 800 kHz)
- Maximum depth: Traditional: 800 ft.; ClearVü: 500 ft.
- Depth/Speed/Temperature: Depth and Temperature
- Number of pins: 8-pin
- Cable length: 20 ft.
- Supported deadrise/Transom angles: 0°-70° degree transom:


In the box:
- GT22HW-TM transducer
- Transom mount
- Trolling motor mount
- Mounting hardware
- Documentation
