Lofrans X1 Windlass

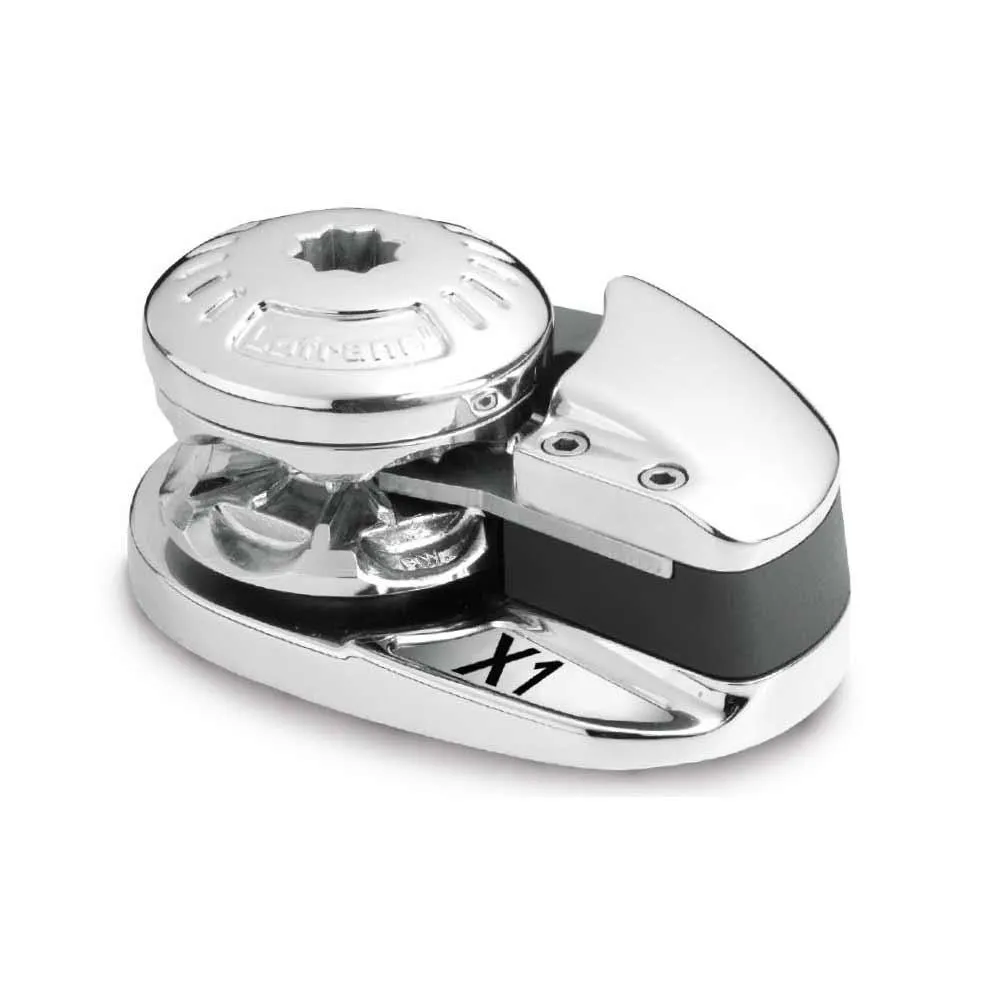

LOFRANS X1 Vertical Windlass – Premium Anchoring & Mooring Solution

Elevate your anchoring experience with the LOFRANS X1 Vertical Windlass, a pinnacle of design and engineering in the world of marine anchoring and mooring equipment. Designed for discerning boat owners who demand both style and substance, the X1 delivers effortless control and unwavering reliability when you need it most. Its robust construction and intelligent features provide the peace of mind required for secure anchoring in any condition, making it the premier choice for vessels from 6 to 12 meters (20-40 ft).

The LOFRANS X1 stands out with its superior build quality and aesthetic appeal. Crafted with a stunning luxury chrome bronze base and drum, it not only withstands the harsh marine environment but also adds a touch of elegance to your foredeck. This windlass is engineered for versatility, available in two primary configurations to suit your specific needs: a ´with drum´ version for managing secondary mooring or warping lines, and a sleek ´Low Profile´ model for a minimalist, uncluttered deck space.

Functionality is at the core of the X1´s design. It features independent Gypsy and drum operation, offering unparalleled flexibility to handle both anchor rode and mooring lines separately and simultaneously. The innovative rope and chain combination Gypsy is managed by a spring-loaded arm, which applies the necessary pressure to ensure a seamless transition and prevent chain bunching during retrieval. For modern navigation and control, a chain counter magnet comes pre-installed as standard, allowing for easy integration with your vessel´s chain counter system for precise rode deployment. The heavy-duty electric motor is protected by a fully waterproof IP67-rated cover, and the gearbox is housed in anodised marine aluminium, ensuring long-lasting performance and corrosion resistance. In the event of a power failure, a manual chain release and override system provides a reliable backup for safe anchor recovery.

Main Features
* Luxury chrome bronze base and drum
* With drum or Low profile configurations
* Independent Gypsy and drum operation
* Rope and chain combination Gypsy
* Manual chain release
* Rope chain management by the spring loaded arm
* Chain counter magnet pre-installed as standard
* IP67 motor cover
* Anodised marine aluminium gearbox

Attribute: Windlasses

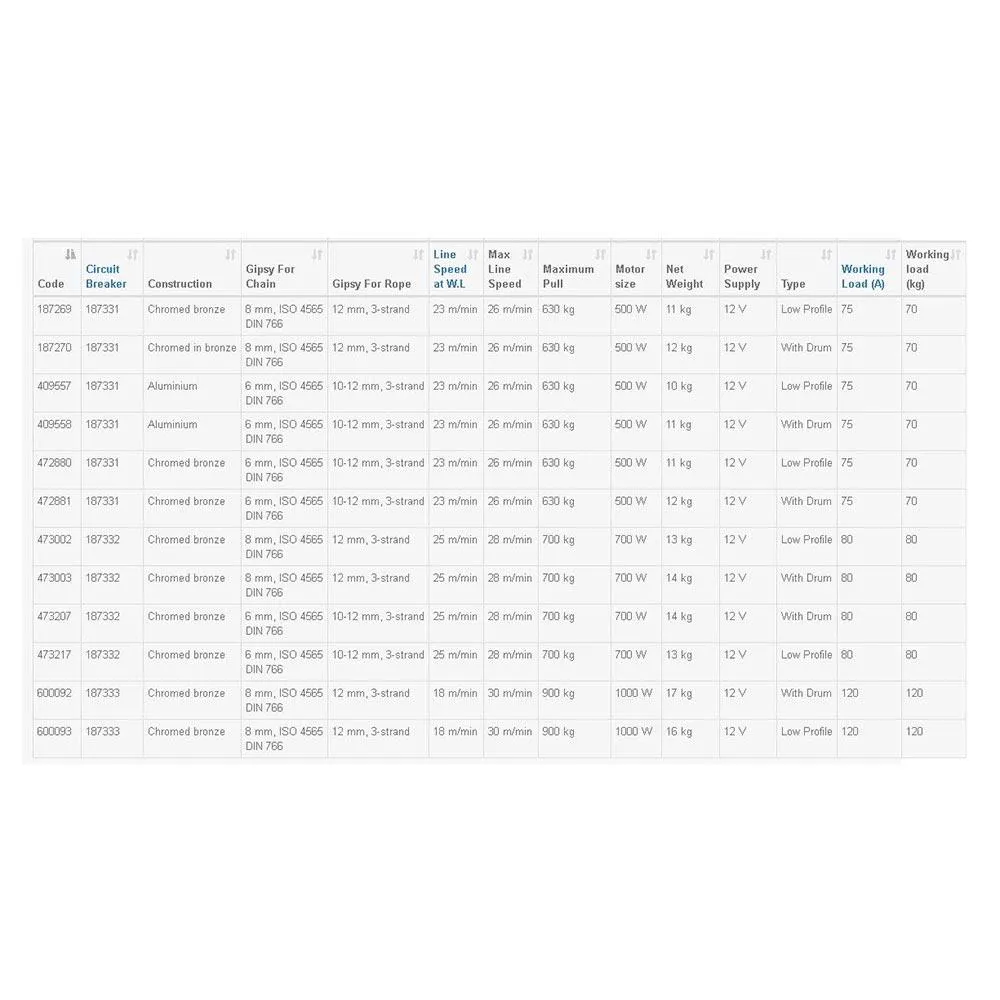

Technical Specifications
* Maximum Pull: Up to 900 kg (1984 lb) depending on model
* Working Load: Approx. 95 kg - 120 kg
* Haulage Speed (at working load): Approx. 20-25 m/min
* Compatible Chain (Gypsy): 6mm (DIN766/ISO), 7mm (DIN766), 8mm (DIN766/ISO)
* Compatible Rope: 10mm, 12mm, 14mm (3-strand)
* Weight (with drum): Approx. 18 kg - 20 kg
* Recommended Boat Length: 6m - 12m (20-40 ft)

Standard Equipment:

* Dual direction solenoid pack
* Handle
* Gypsy for chain
* CD / Instruction manual
