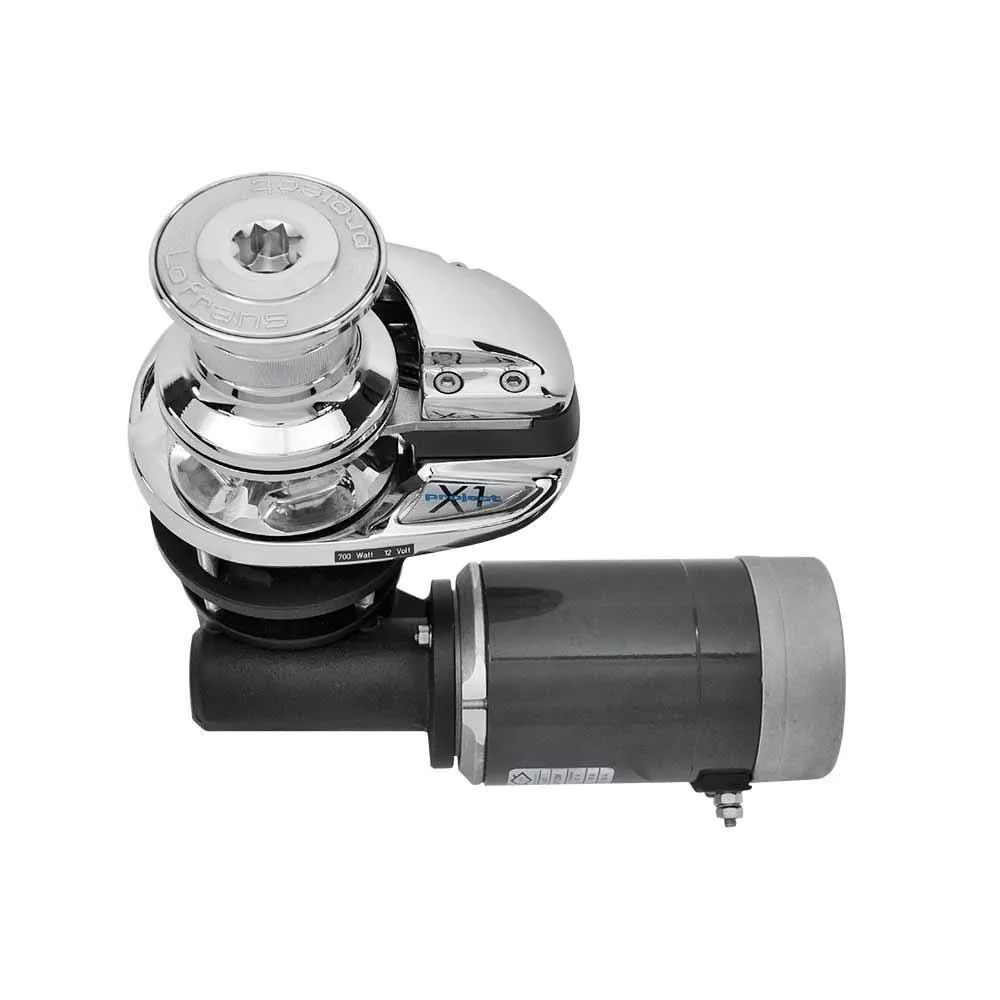

Lofrans X1 Windlass

LOFRANS X1 Windlass: Compact Power and Superior Reliability for Anchoring

Elevate your anchoring and mooring experience with the LOFRANS X1 Windlass, the definitive choice for boat owners seeking performance, durability, and style. Engineered for vessels ranging from 6 to 12 meters (20-40 ft), the X1 combines robust construction with advanced features to deliver effortless and secure anchoring in any condition. As a leading piece of boats and equipment, this windlass stands out in its class for its exceptional design and flawless operation, making it an essential upgrade for any serious boater.

The LOFRANS X1 is built upon a stunning and incredibly durable luxury chrome bronze base, providing a foundation of strength and superior corrosion resistance that will grace your foredeck for years to come. This commitment to quality is evident in every aspect of its design, from the powerful motor to the intelligently crafted gearbox. Whether you choose the version with a warping drum for added line-handling versatility or the sleek Low Profile model for a minimalist aesthetic, the X1 is tailored to meet your specific needs.

Experience unparalleled control with the ability to operate the gypsy and drum independently. This crucial feature allows you to manage your anchor rode and secondary mooring lines with precision and ease, a significant advantage when docking or rafting. The specially designed rope and chain combination gypsy ensures a seamless transition between materials, managed perfectly by the spring-loaded arm that prevents chain skipping and ensures the rode is properly seated. For added peace of mind, a manual chain release mechanism is built-in, providing a reliable override in any situation.

The X1 is also ready for the modern helm, with a chain counter magnet pre-installed as standard equipment, allowing for easy integration with your onboard electronics. Its powerful motor is shielded by a fully waterproof IP67-rated cover, and the anodised marine aluminium gearbox is meticulously engineered to withstand the harshest saltwater environments, guaranteeing long-lasting, trouble-free performance.

Main Features:

* Luxury chrome bronze base and drum for superior strength and aesthetics.
* Available in configurations with a drum or as a streamlined Low Profile unit.
* Independent Gypsy and drum operation for versatile line handling.
* Precision-engineered rope and chain combination Gypsy.
* Manual chain release for ultimate safety and control.
* Effective rope chain management by the spring-loaded arm.
* Chain counter magnet pre-installed as standard for easy electronic integration.
* High-protection IP67 motor cover, ensuring complete waterproofing.
* Robust and corrosion-resistant anodised marine aluminium gearbox.
---

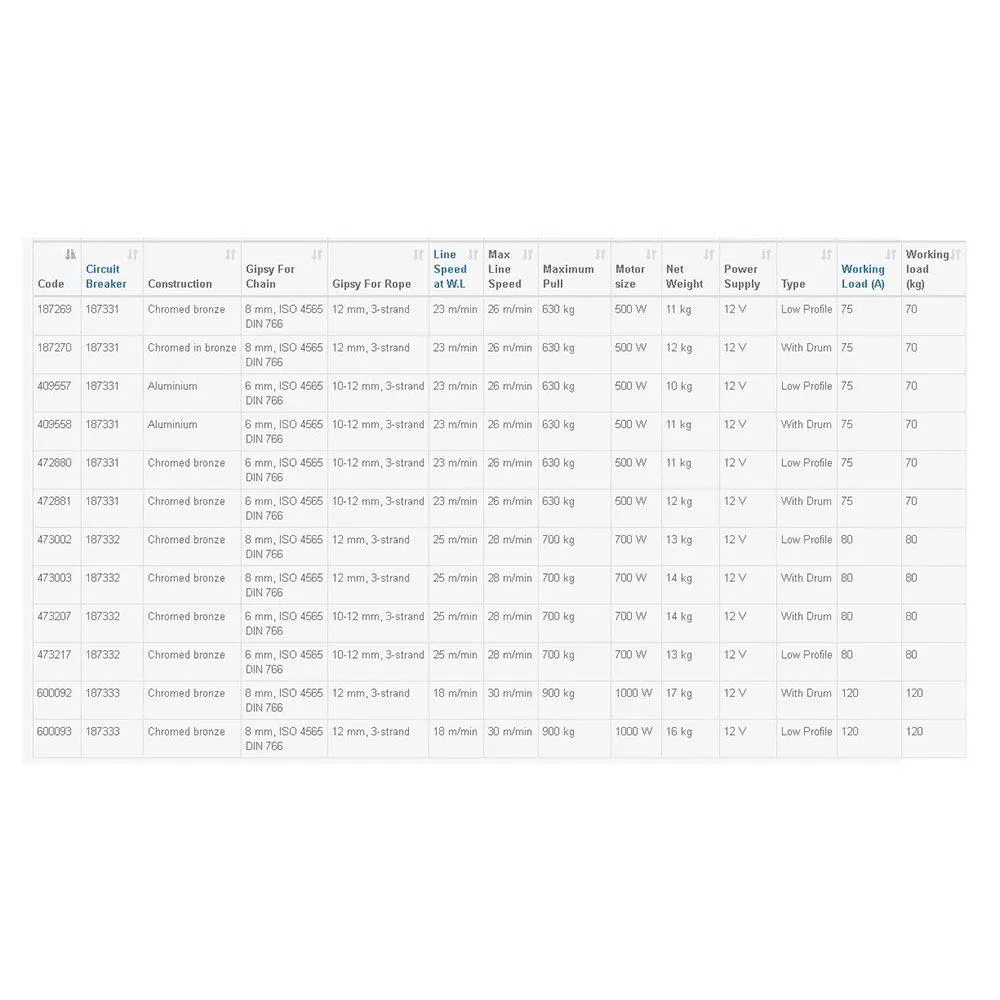

Technical Specifications
* Attributes: Windlasses
* Motor Size: 500W / 700W
* Voltage: 12V
* Max Pull: 630 kg (1389 lb) / 700 kg (1543 lb)
* Working Load: 95 kg (209 lb) / 100 kg (220 lb)
* Haulage Speed @ Working Load: 25 m/min / 28 m/min
* Chain Gypsy Sizes: 6mm (DIN766), 7mm (DIN766), 8mm (DIN766), 1/4" (HT), 5/16" (HT)
* Recommended Boat Length: 6 - 12 meters (20 - 40 ft)
* Weight (X1 Low Profile): 18 kg (40 lb)
* Weight (X1 with Drum): 19 kg (42 lb)
---

Standard Equipment:

The LOFRANS X1 Windlass comes as a comprehensive package to ensure a smooth installation and immediate operation. It includes the dual direction solenoid pack, a handle for manual operation, the specified gypsy for your chain, and a CD / Instruction manual
