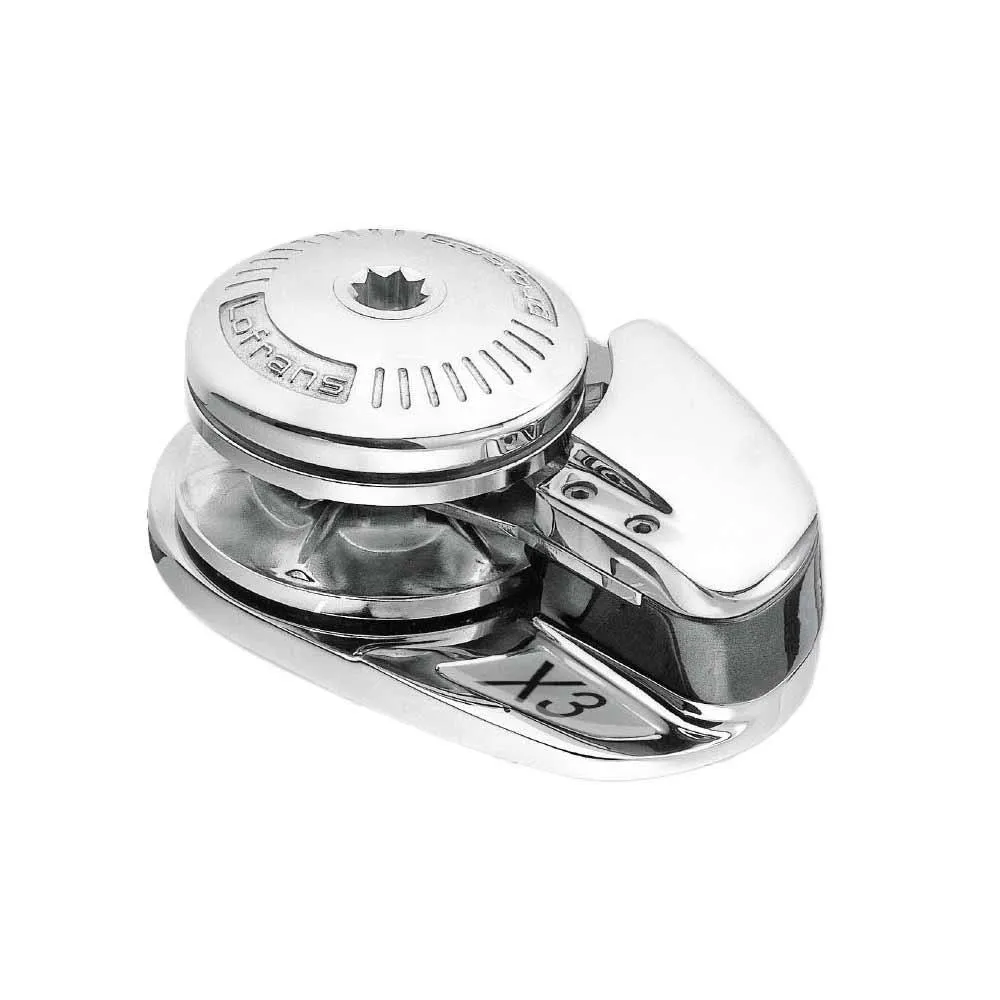

Lofrans X3 Windlass

LOFRANS X3 Windlass | High-Performance Anchoring for Demanding Mariners

Elevate your anchoring and mooring experience with the LOFRANS X3 Windlass, the pinnacle of horizontal windlasses designed for superior performance, unwavering reliability, and effortless operation. Engineered for vessels ranging from 12 to 20 meters (40-65 ft), the X3 is the definitive choice for boat owners who demand strength, durability, and complete control. Whether you´re setting anchor in a secluded cove or mooring in a bustling marina, the X3 delivers the power and precision you need, making it a cornerstone of your boat´s equipment.

Crafted with a robust, marine-grade anodised aluminium and chrome-plated bronze construction, the LOFRANS X3 is built to withstand the harshest saltwater environments. Its design focuses on longevity and flawless functionality, ensuring your anchoring system remains dependable season after season. The sleek low-profile or with-drum configurations integrate seamlessly onto your deck, adding both aesthetic appeal and practical power.

One of the standout benefits of the X3 is its operational versatility. The independent gypsy and drum operation allows for simultaneous or separate management of your anchor rode and secondary mooring lines, providing exceptional flexibility during complex docking or anchoring manoeuvres. This dual-functionality is a critical advantage for experienced sailors. Furthermore, the innovative spring-loaded arm provides expert management of the rope and chain combination, preventing jams and ensuring a smooth, consistent retrieval every time. For ultimate peace of mind, a manual override system is available on chromed bronze models, guaranteeing you can always manage your anchor even in the event of a power failure.

Main Features
* Line Management: Chain & rope management is expertly handled by the spring-loaded arm.
* Chain Counter Ready: A chain counter magnet is pre-installed as standard for easy integration with your helm controls.
* Motor Protection: Features a high-protection IP67-rated motor cover (on models up to 1500W) to seal against water ingress.

Standard Equipment
* Dual direction solenoid pack (control box)
* Handle for manual override/clutch release
* Gypsy designed for both chain & rope
* QR code card for easy access to the Instruction Manual

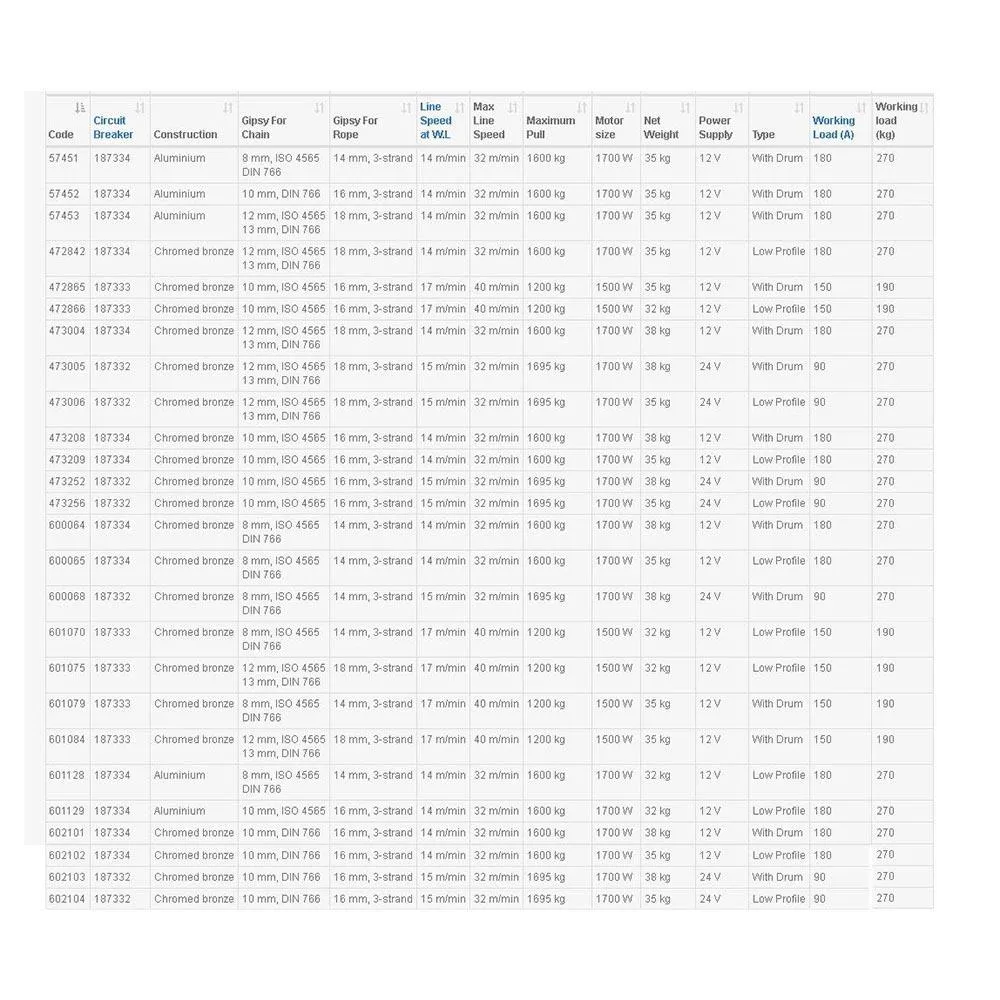

Technical Specifications: Windlasses

The LOFRANS X3 is available in various configurations to perfectly match your vessel´s requirements.
* Models: X3 1500W, X3 1700W
* Motor: 1500W - 1700W
* Voltage: 12V or 24V DC
* 8 mm (ISO 4565 / DIN 766)
* 10 mm (ISO 4565 / DIN 766)
* 12 mm (ISO 4565 / DIN 766)
* Gypsy for Rope: 14mm - 16mm - 18mm
* Maximum Pull: Up to 1700 kg
* Haulage Speed: 15 - 30 m/min
* Weight (approx.): 31 - 41 kg (68 - 90 lbs)

Invest in the LOFRANS X3 Windlass and anchor with confidence, knowing you are equipped with a world-class system engineered for power, precision, and enduring performance. Make anchoring the easiest part of your journey
