Lowrance Autopilot Hydraulic Pack

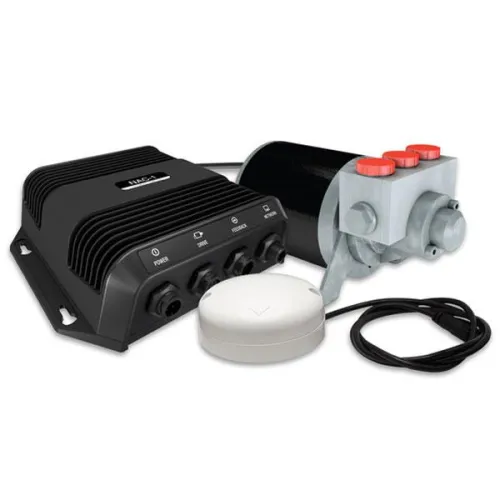

DrivePilot Hydraulic Pack: Includes RC42 Heading Sensor, NAC-1 Autopilot Computer, PUMP-1 Hydraulic Pump – 0.8L reversible hydraulic pump, Standby-Auto button and Micro-C network components.


Features:

- Easy to install system pack, hydraulic connectors and hoses all included
- Dash-mount button for one-touch Auto/Standby activation
- Steer to Heading, Course or Route
- Automatic Turn Patters
- NAC-1 Plug & Socket connectors reduce the installation time
- High efficiency, super-quiet 0.8L hydraulic gear pump


Specifications:

MECHANICAL/ENVIRONMENTAL:

- Casing: Per NEP -2
- Water Ingress: IPX5
- Weight: TBC
- Overall Dimensions Width: 7.1 in 180 mm, Height: 2.2 in 57 mm

ELECTRICAL:

- Supply Voltag: 12v only
- Max Drive output: 8A continuous, 16 Amp peak

INTERFACES:

- Network: 1xMicroC
- Feedback: Variable voltage from HELM -1 drive unit
- Drive output: To PUMP-1 or HELM-1
- Power supply: 12V


COMES WITH:

- NAC-1 AUTOPILOT COMPUTER: NAC-1 Autopilot Computer – The brains behind the Outboard Pilot and Drive Pilot systems. It contains the steering computer and electronics for the drive unit motor and clutch.
- RC42N: RC42N, Rate compass with 5 m (16ft) cable and Micro-C connector
- PUMP-1 FOR OUTBOARD PILOT: PUMP-1 Hydraulic Pump – 0.8L reversible hydraulic pump, compatible with SeaStar manual helm pumps up to 14ci
- N2KEXT-2RD - 0.61 m (2-ft) NMEA: N2KEXT-2RD - 0.61 m (2-ft) NMEA 2000 cable for backbone extension or or drop cable to connect an additional network device
- N2KEXT-6RD: N2KEXT-6RD - 1.82 m (6-ft) NMEA 2000 cable for backbone extension or drop cable to connect an additional network device
- N2KEXT-15RD: N2KEXT-15RD - 4.55 m (15-ft) NMEA 2000 cable for backbone extension or or drop cable to connect an additional network device
- TR-120-KIT: TR-120-KIT - Set of 1 male and 1 female NMEA 2000 terminators
- MICRO-C POWER CABLE ONLY - NO T CONN:
- PUMP-1 FITTING KIT
- AUTO-STBY BUTTON FOR NAC-1
- N2K, 4 WAY (Low Loss): New low loss NMEA2000 4-way joiner. Connect four NMEA2000 Micro-C devices to the NMEA2000 Network.This replaces 000-10996-001
