Maretron DSM570 5.7´´ screen

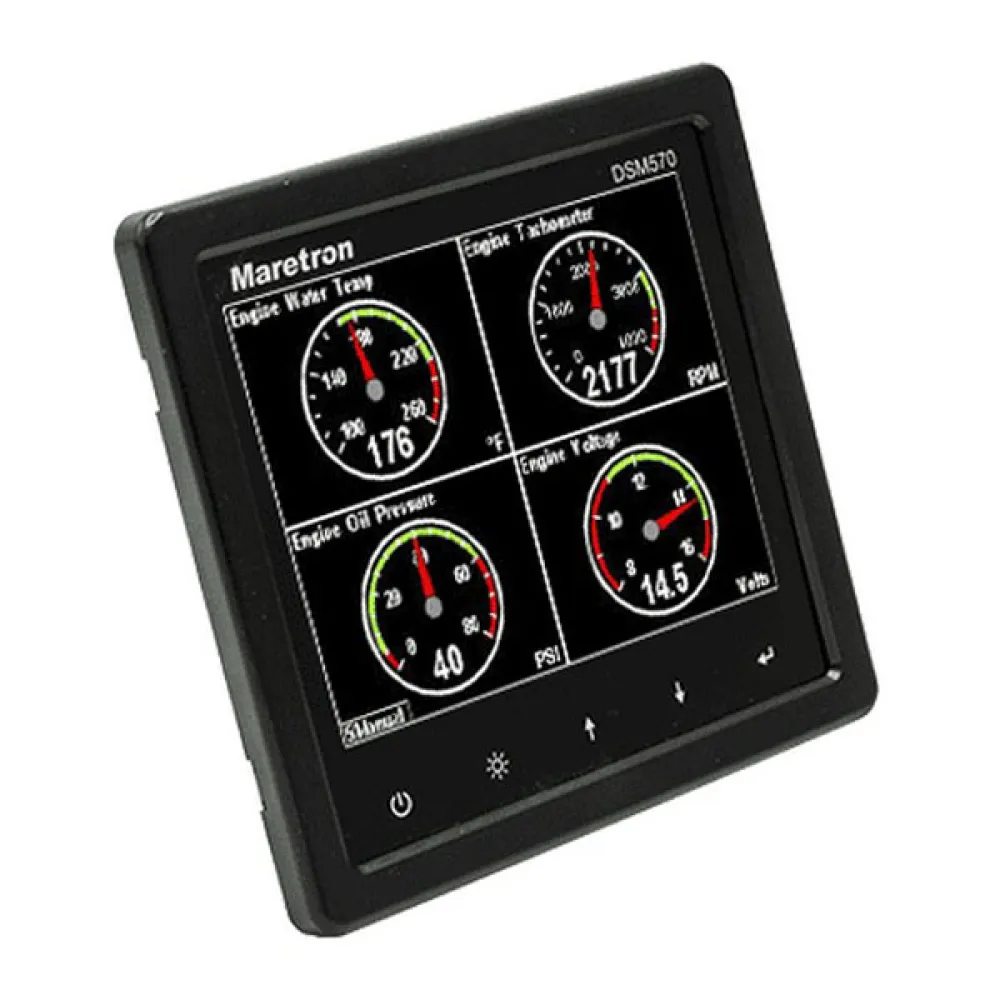

MARETRON DSM570 5.7” High-Resolution Color Display

Product Category: Electronics
Product Subcategory: Instruments

Gain complete command and unparalleled clarity over your vessel´s vital systems with the Maretron DSM570, a premium 5.7-inch NMEA 2000® multi-function color display. Engineered for the demanding marine environment, the DSM570 serves as your centralized information hub, consolidating data from across your boat´s network into a single, easy-to-read interface. Experience a new level of situational awareness, safety, and operational efficiency, whether you´re at the helm, in the nav station, or any other critical location on board.

The DSM570’s primary strength lies in its brilliant, direct-sunlight-readable screen. Its high-resolution VGA display and powerful LED backlighting cut through the brightest glare, ensuring that crucial information is always visible. From engine performance and fuel management to tank levels, electrical systems, and navigation data, you can monitor it all at a glance.

Beyond simple viewing, this display empowers you with full customization. Create multiple "Favorite Screens" with your preferred data layouts, utilizing a wide range of display formats including numeric, gauge, bar graph, and trend graphing. This flexibility allows you to tailor the interface precisely to your needs, whether for cruising, racing, or engine diagnostics. Enhance your safety with the advanced, user-configurable alarm and alert system. The DSM570 can be programmed to provide both visual and audible warnings for any parameter on the NMEA 2000® network that falls outside of your preset limits, giving you the peace of mind to react quickly to potential issues.

Key Benefits:

* Exceptional Readability: Enjoy crystal-clear data in any lighting condition, from total darkness to bright, direct sunlight, thanks to the high-resolution, optically bonded screen.
* Total Data Customization: Configure an unlimited number of custom display screens, arranging gauges, numbers, and graphs exactly as you see fit for any operational scenario.
* Enhanced Safety and Awareness: Leverage the comprehensive alarm system to monitor critical parameters and receive immediate alerts. Connect an onboard camera to the video input for improved situational awareness while docking or monitoring the engine room.
* Centralized Vessel Monitoring: Consolidate data from all NMEA 2000® compatible devices—including engines, generators, tank monitors, and electrical systems—onto one versatile and powerful display.
* Efficient and Rugged Design: Built to last in the harsh marine environment with a waterproof housing and low power consumption, making it ideal for vessels of all sizes.

Main Features:

* Bright 5.7” VGA Color Display with LED Backlighting
* Direct Sunlight Readable Screen
* Fully Customizable Screen Layouts and "Favorite Screens"
* Integrated and Highly Configurable Alert and Alarm System
* NTSC/PAL Video Input for Onboard Camera Display
* Multiple Display Formats (Numeric, Gauge, Bar Graph, Graphing)
* NMEA 2000® Certified Network Connectivity
* Low Power Consumption for Extended Use
* Rugged, Waterproof Construction for Marine Environments

Attributes:
Screens, Without sensors

Technical Specifications:

* Display: 5.7" (145mm) Transflective TFT LCD, Optically Bonded
* Resolution: 640x480 (VGA)
* Brightness: 700 cd/m² (nits)
* Operating Voltage: 9 to 32 Volts DC
* Power Consumption: 6W (Typical), 8W (Max)
* Network Connection: (1) NMEA 2000® Micro-C Port
* Video Input: (1) NTSC/PAL Composite
* Waterproofing: IP67 (Front and Back)
