MARETRON Micro/Mid Field Attachable Connectors

Category: Electronics
Subcategory: Accessories
Attribute: Connectors

Achieve professional, reliable, and flexible marine electronic installations with the MARETRON Micro/Mid Field Attachable Connectors. Designed for technicians and boat owners who demand the highest standards of quality and performance, these connectors provide the ultimate solution for creating custom-length NMEA 2000 network cables directly on your vessel. Say goodbye to the limitations of pre-made cables that are often too long or too short, leading to messy installations and signal integrity issues. With Maretron´s field-attachable design, you can use bulk cable to build a perfectly tailored, robust, and efficient network backbone.

These connectors are engineered to withstand the harsh realities of the marine environment. Their superior construction ensures a secure and stable connection, vital for the uninterrupted flow of critical data between your marine electronics. Whether you are installing a new chartplotter, autopilot, or a complete vessel monitoring system, these connectors form the bedrock of a dependable NMEA 2000 network. The ability to terminate cables in the field saves time, reduces waste, and allows for a clean, professional-grade installation every time.

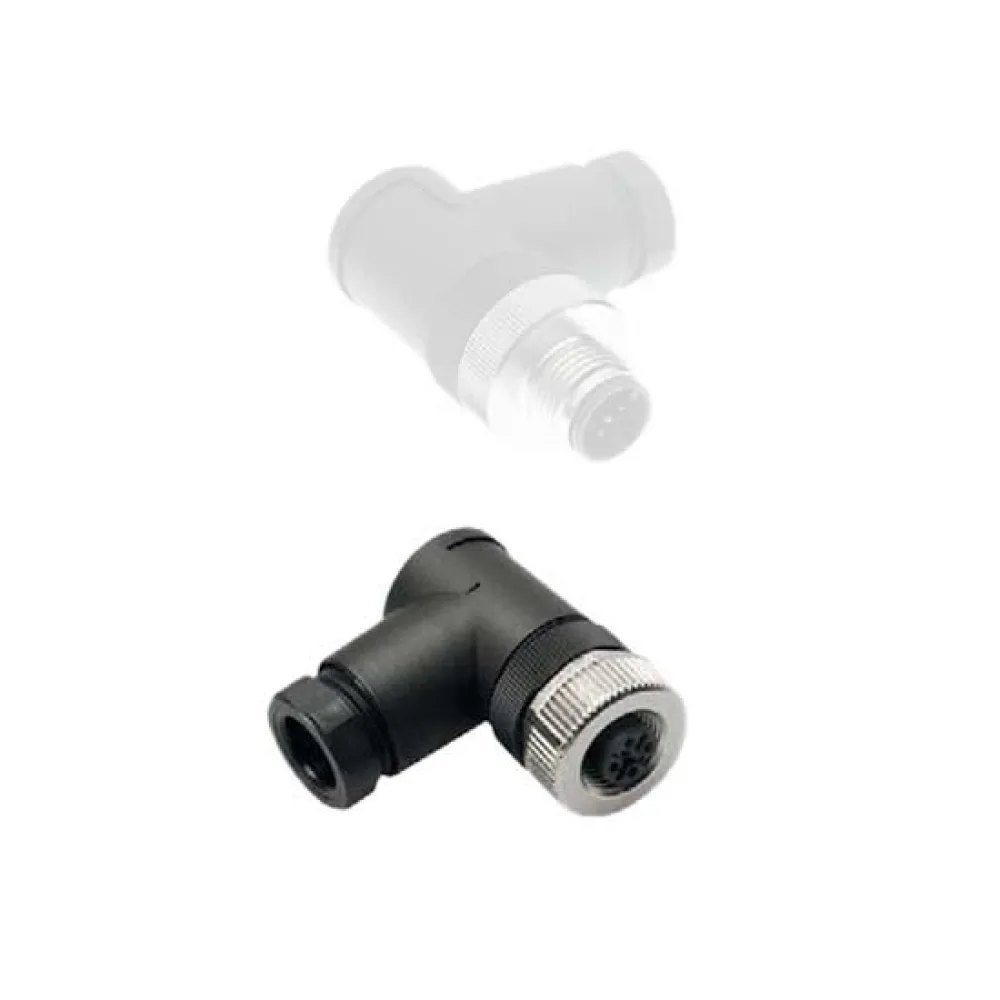

Like the straight Micro/Mid Field-attachable Connectors, the 90° field attachable connectors allow you to make field connections to bulk cable.

The 90° connectors are particularly well suited for tight spaces like the back of displays where there is limited space for a straight connector.

Key Benefits:

Experience unparalleled flexibility in your marine wiring projects. These connectors empower you to create connections of the exact required length, ensuring a tidy and optimized installation. The right-angle variant is a problem-solver for challenging locations, enabling clean cable routing around obstacles and in constrained areas behind instrumentation and panels. The certified waterproof rating provides peace of mind, protecting your critical network connections from moisture, spray, and immersion, ensuring long-term reliability and preventing data loss or component failure.

Main Features:
- Useful in tight spaces or where sharp corners need to be made.
- Waterproof rated to IP67.
- NMEA 2000 Approved for guaranteed network compatibility and performance.
- Supports a maximum wire size of 18 AWG for robust power and data transmission.
- Wide operating temperature range ensures functionality in extreme conditions.
- Constructed with high-quality, corrosion-resistant materials for longevity in marine environments.

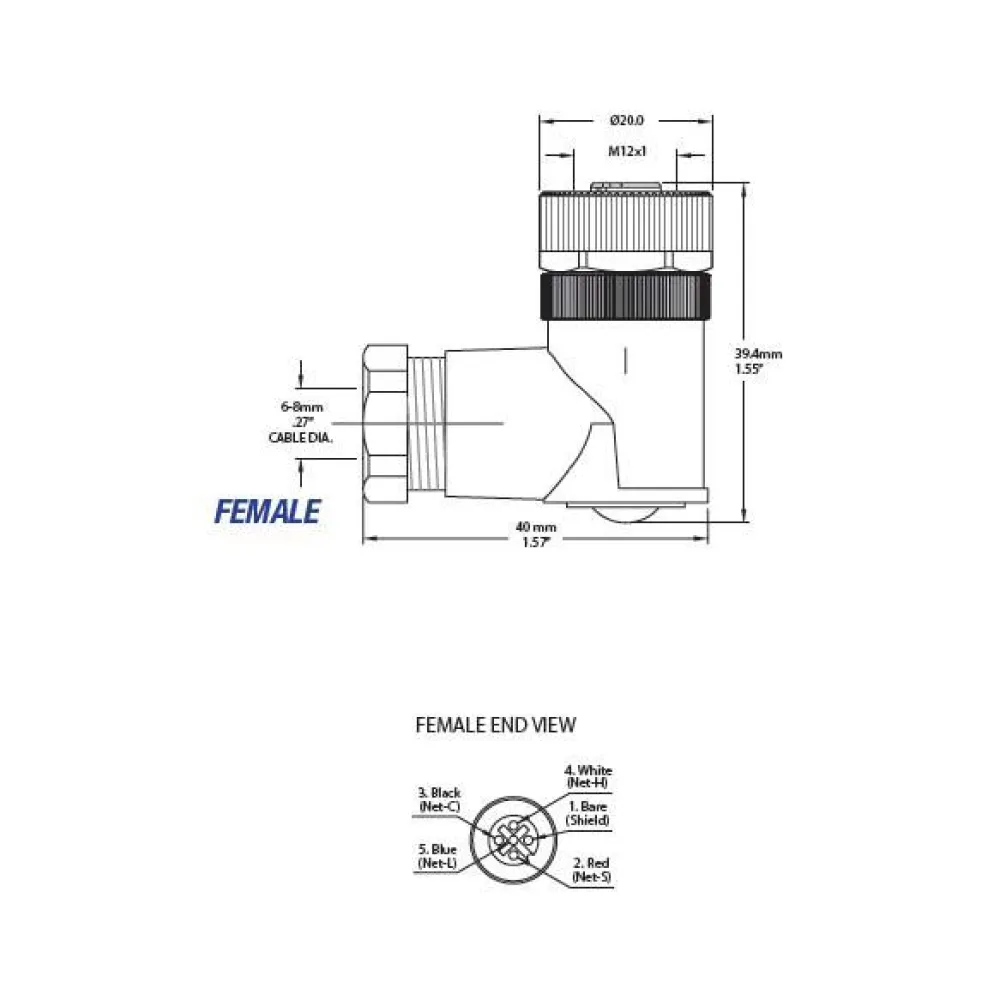

MECHANICAL:
- Contact Mat/Plating: Brass/Optaloy
- Coupling Nut Mat/Plating: Brass/Nickel
- Maximum Wire Size: 18 (1.02mm) AWG
- Cable Grip Range: 6-8 mm

ELECTRICAL:
- Rated Current: 4.0 Amps
- Rated Voltage: 30 V AC/ 36 V DC

ENVIRONMENTAL:
- Protection Class: IEC IP67
- Temperature Range: -40°c TO 85°C (-40°F to 185°F)

APPROVALS:
- NMEA: NMEA 2000 Approved
- IEC: IEC-61162-3
