Muir VRC3500 winch 24V

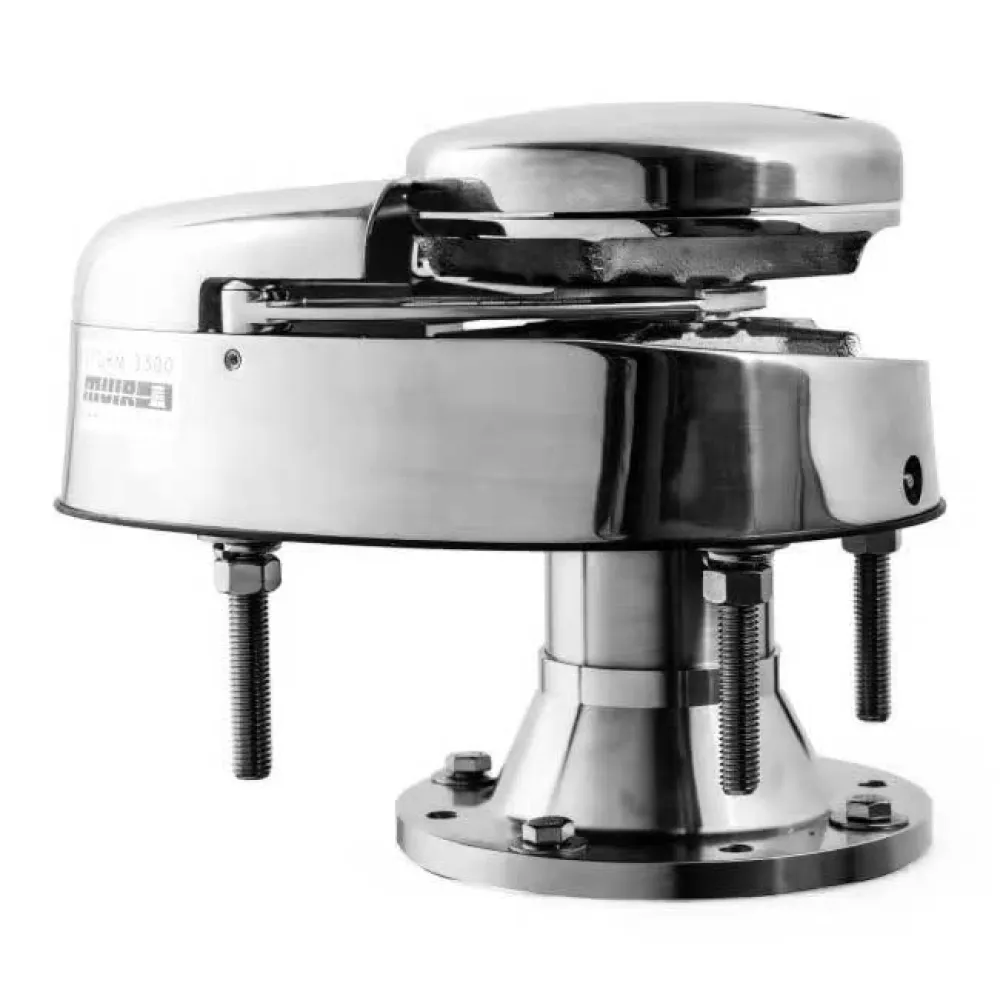

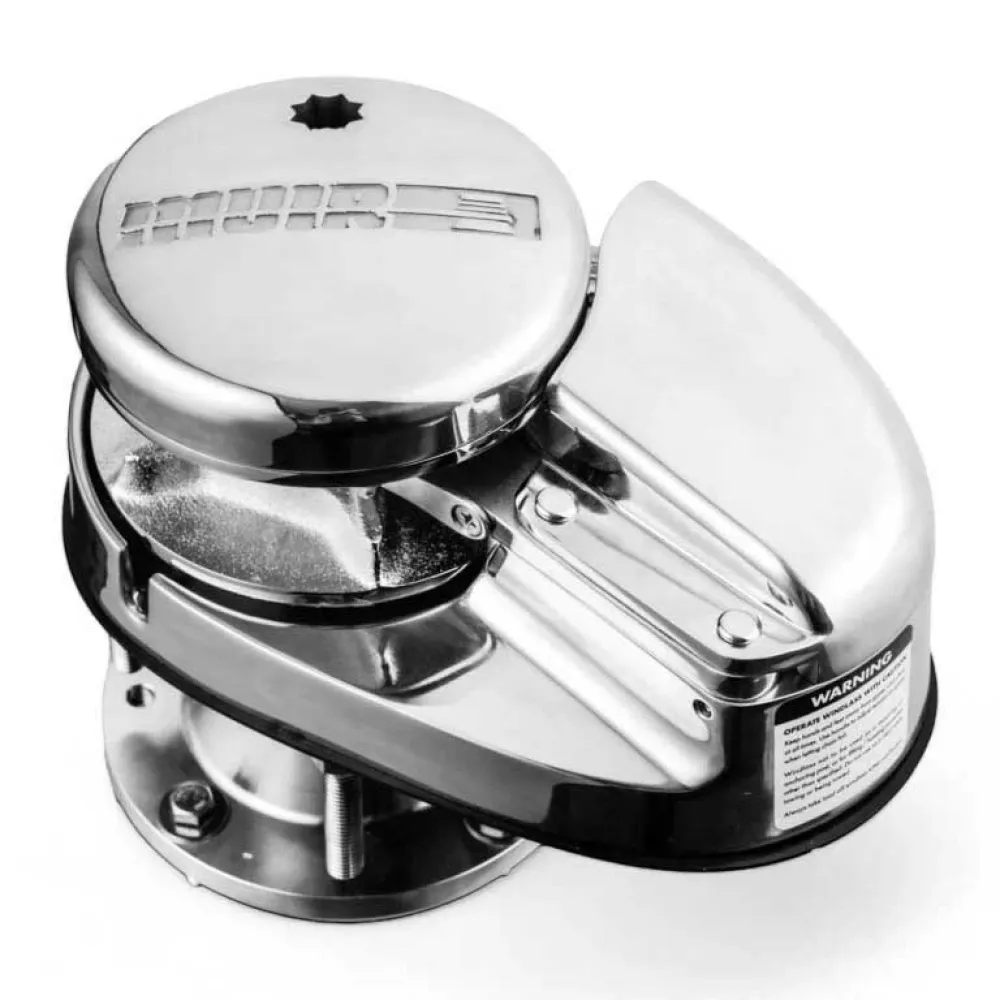

MUIR VRC3500 24V Vertical Windlass | Powerful Anchoring for Large Vessels

Secure your vessel with confidence and experience unparalleled performance with the MUIR VRC3500 24V Vertical Windlass. Engineered for luxury yachts, superyachts, and commercial vessels ranging from 16 to 22 meters (52 to 72 feet), this powerful anchoring system delivers robust reliability and effortless operation when you need it most. The VRC3500 is a premier choice for discerning mariners who demand the ultimate in control, safety, and durability for their anchoring and mooring needs.

Experience Superior Anchoring Control and Reliability

The MUIR VRC3500 is designed to take the strain and stress out of anchoring. Its heavy-duty 24V motor provides immense lifting power, allowing for rapid and smooth retrieval of your anchor, even in challenging currents and windy conditions. The vertical design offers a significant advantage by saving valuable deck space, with the motor and gearbox situated securely below deck, protected from the harsh marine elements. This configuration not only provides a cleaner, uncluttered look on your bow but also enhances the longevity of the unit. With its integrated manual override system, you are guaranteed peace of mind, knowing you can always deploy or retrieve your anchor, even in the event of a power failure.

Core Features of the VRC3500 Windlass

This top-tier model from our range of windlasses is packed with features designed for performance and ease of use:

* Rope and Chain Combination Gypsy: Provides exceptional versatility, allowing for seamless use with both rope and chain rodes without any modifications.
* Powerful Dual-Direction Motor: The heavy-duty 24V DC motor operates in both directions, giving you precise control over anchor deployment and retrieval.
* Manual Override and Free-Fall: Equipped with a clutch release handle for full manual control and the ability to engage a rapid free-fall drop, essential for quick anchoring.
* Progressive Cone Clutch/Brake: A sophisticated cone clutch mechanism ensures smooth, progressive engagement, giving you firm and reliable control over the anchor´s descent.
* Chain Counter Ready: Includes a pre-installed magnet in the gypsy and a sensor mounting point, making it simple to integrate with your preferred chain counter system for precise scope monitoring.
* Simplified Installation: Features a clever self-aligning gearbox design that allows for easy, one-person installation and straightforward maintenance.
* Exceptional Finish: The above-deck housing boasts a luxurious, highly polished finish that provides outstanding corrosion resistance and adds a touch of elegance to your vessel´s foredeck.

Technical Specifications

* Model: VRC3500
* Recommended Vessel Size: 16m - 22m (52 ft - 72 ft)
* Voltage: 24V DC

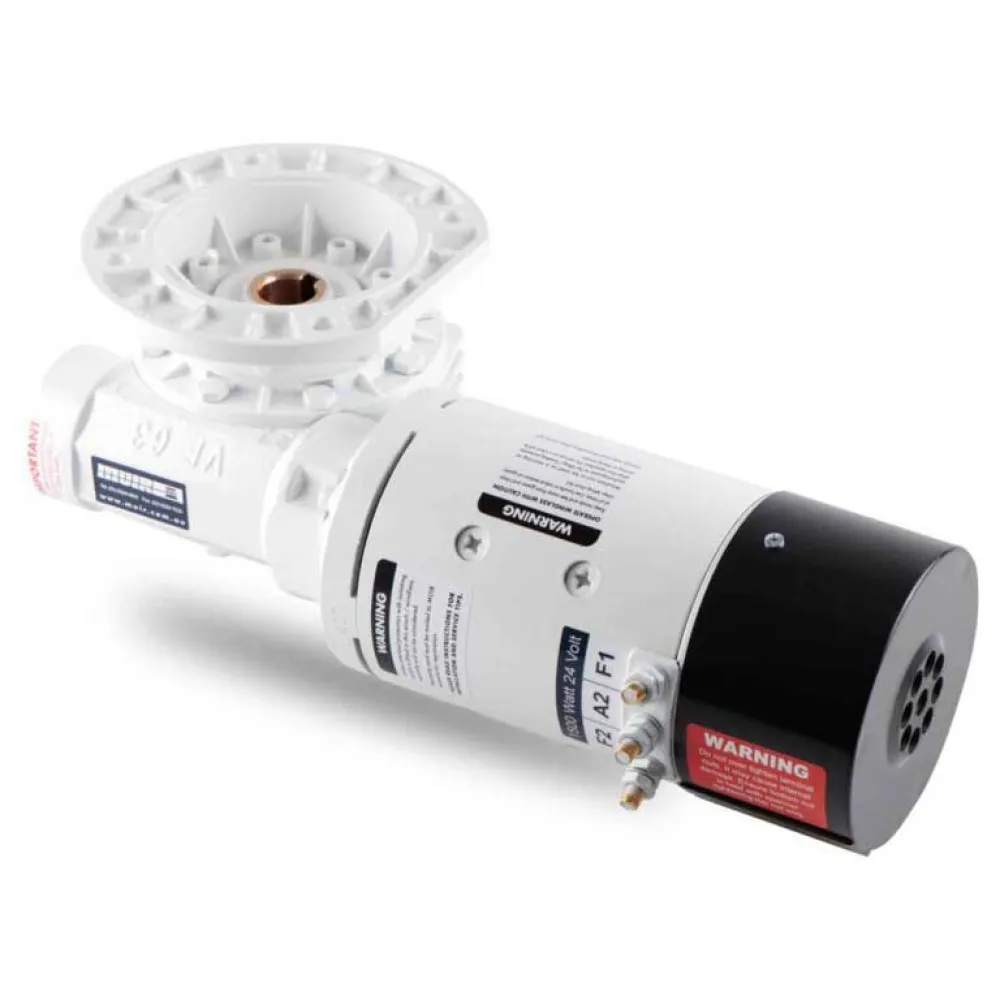

* Motor Power: 1500W
* Maximum Load: 1590 kg (3500 lb)
* Work Load: 395 kg (870 lb)
* Chain Size Compatibility: 10mm & 13mm (3/8" & 1/2")
* Rope Size Compatibility: 16mm - 20mm (5/8" - 3/4")
* Retrieval Speed (at working load): Approximately 24 m/min (79 ft/min)
* Net Weight (approx.): 51 kg (112 lb)

Upgrade your boat´s anchoring equipment with the MUIR VRC3500, a vertical windlass that combines brute strength with refined engineering. Choose MUIR for uncompromising performance and security at sea
