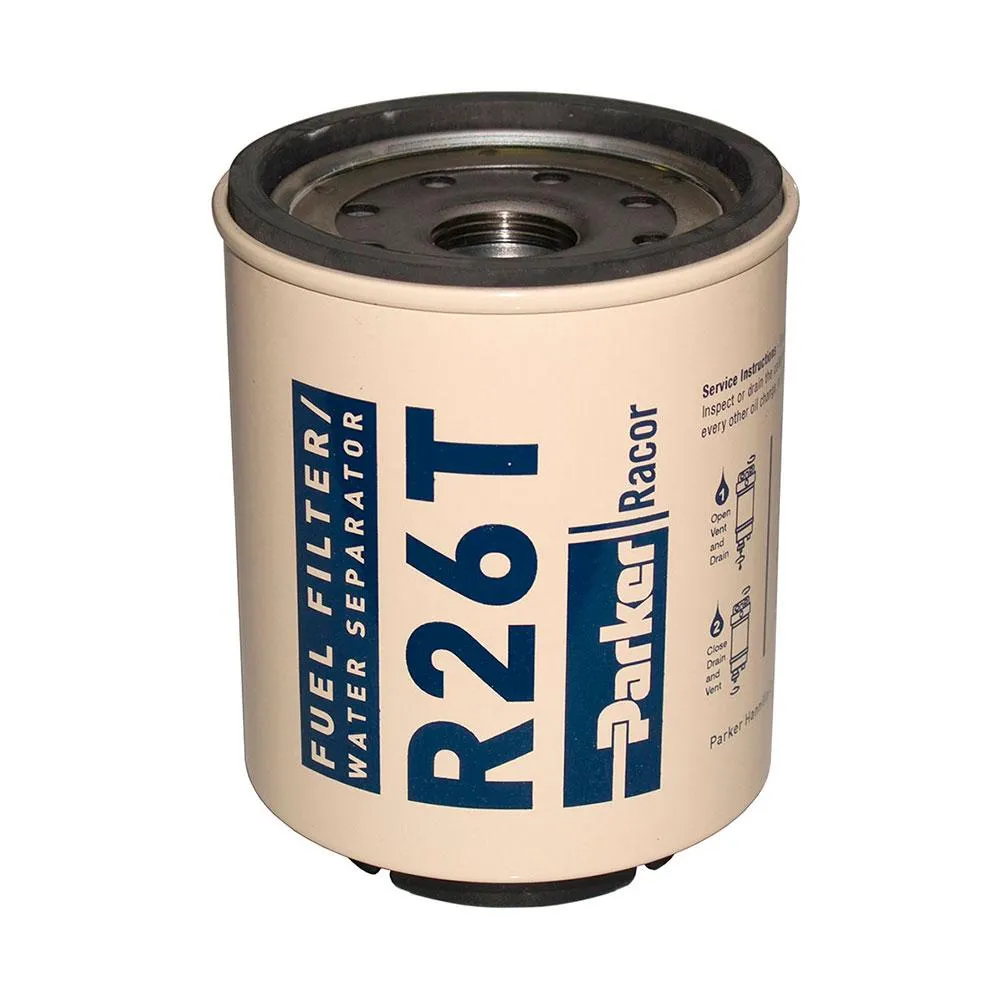

Parker Racor Replacement Filter Elemment Spin On 225R

Racor replacement spin-on elements are available in different lengths and diameters for different flow rates. The silk screens are color-coded ?Brown? for ?2? micron, ?Blue? for 10 micron, and ´red? for 30 micron. The smaller the micron rating the finer the filtration. The ?2? micron rating is required when there is no additional downstream filtration. 10 and 30 micron are appropriate for pre-filtration, protecting a downstream or engine mounted filter. Ultimately, the micron rating preferred will be a function of fuel quality, operating climates and maintenance schedules.

Fuel contamination, either in the form of dirt, sludge or water will always find its way into your fuel system. Every time you squeeze the fuel dispensing trigger, you threaten your engine?s life. No matter how carefully fuel is handled or stored, dirt, rust, gums, algae, and water are going to find their way in. Racor fuel filter/water separators with Aquabloc® media effectively remove damaging water and solids, allowing engines to run with more power and greater efficiency. Install a Racor mounting head, and spin-on a Racor fuel filter/water separator, for the life of your engine.

How It Works:

Racor Diesel Spin-on Series filters use Aquabloc® media to reliably remove dirt and water from diesel and gasoline. Aquabloc® media is pleated, corrugated, and arranged for optimum water rejection and longest service life. Fuel entering the filter head is diverted downward past the vertical media pleats, allowing larger water droplets and contamination particles to fall directly to the collection bowl. Smaller water droplets converge and coalesce on the specially treated media surface until they are large enough to also drop to the collection bowl. Small contamination particles are stopped at the surface of the Aquabloc® media, while even smaller particles are held deeper in the media layers. The result is the driest, cleanest motor fuel available for your engine.


Features:

These fuel filter/water separators are designed for high performance applications, and will help your engine perform better than ever with clean, water-free fuel. The filter body is protected with a durable electrostatically applied powder coating for superior corrosion resistance. This spin-on filter design is simple to service, and the reusable clear engineering plastic bowls feature a self-venting drain for draining out unwanted muck and water.

- High contaminant holding capacity replaceable elements provide long service life
- Corrosion-resistant coatings and construction
- Aquabloc® media is standard
- Gasket and o-ring materials designed for use in diesel or gasoline
- The Parker global support and distribution network ensures that you can find our products where ever you are in the world
- Product is built in an ISO TS 16949 quality system environment to ISO 14001 Environmental requirements.
- Note: Clear bowls in gasoline systems are a routine inspection item: Inspect for damage, deformation, and discoloration often, and replace as necessary

How to choose the correct fuel filter:

1. Find the Racor Series that matches your filter
2. Choose the micron rating of the Aquabloc® media. 10 and 30 micron elements recommended for primary applications and ?2? micron for secondary, final filter applications.
3. Alternately you may choose by height and diameter

Applications:

- Power Generation
- On or off Highway
- Truck and Bus
- Construction
- Agriculture
- Any engine fuel filtration application


Specifications:

- SERIES: 225R
- ELEMENT TYPE: 2 Micron Aquabloc® Spin-on
- HEIGHT (INCH): 4.1
- HEIGHT (MM): 102
- DIAMETER (INCH): 3.7
- DIAMETER (MM): 94
