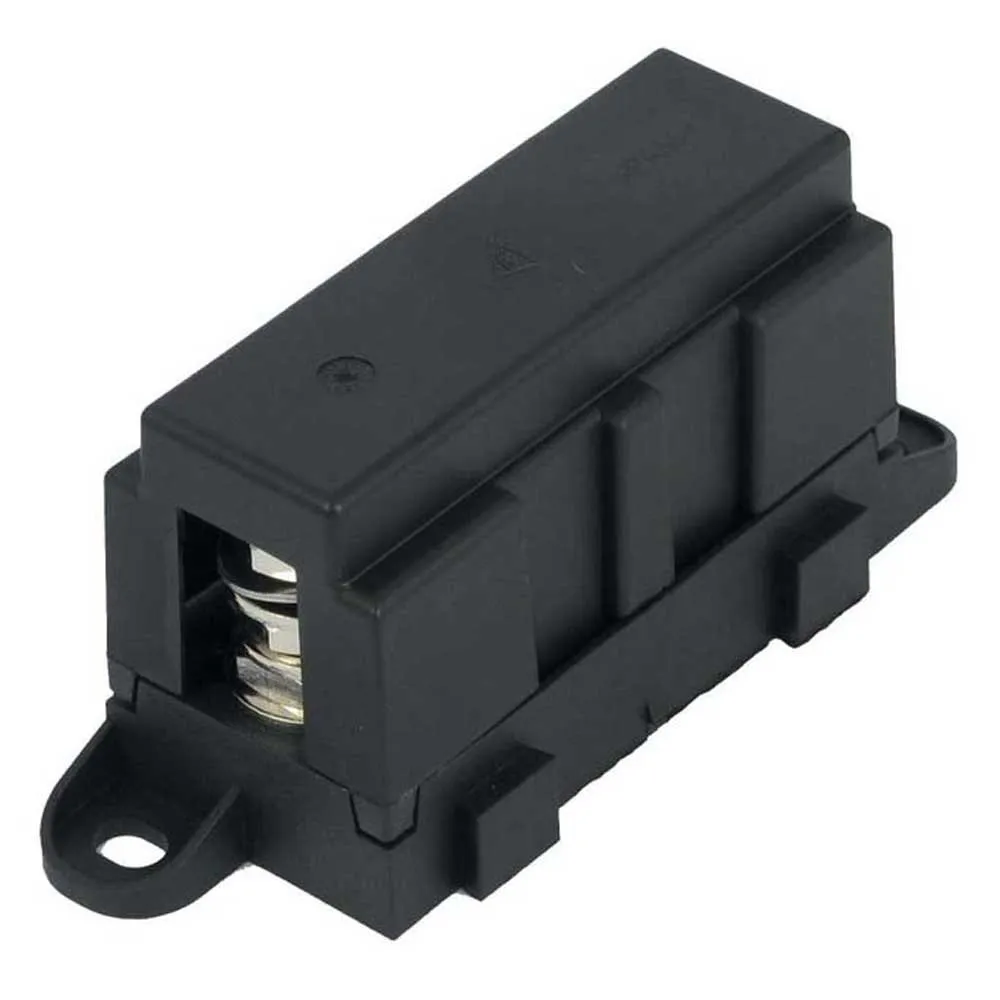

Philippi SHD1 Fuse Holder

PHILIPPI SHD1 High-Current Fuse Holder | For DIN Strip Fuses

Category: Electronics
Subcategory: Electrical connections

Ensure uncompromising safety and reliability for your high-amperage electrical circuits with the PHILIPPI SHD1 Fuse Holder. Engineered for demanding applications, this robust fuse holder is the professional´s choice for protecting critical main lines against overcurrents and short circuits. It is specifically designed to provide a secure and efficient connection point for high-capacity strip fuses, making it an essential component for marine electrical systems, automotive main circuits, battery chargers, inverters, bow thrusters, and industrial power distribution setups. The SHD1 stands as a testament to superior design, offering both exceptional performance and remarkable ease of installation.

The primary benefit of the SHD1 lies in its innovative modularity. It is a stackable fuse holder, allowing you to create custom, multi-circuit fuse blocks with a clean, professional finish. This feature provides unparalleled flexibility for system integrators and installers looking to optimize space in tight compartments while building a scalable and organized power distribution panel. By interlocking multiple SHD1 units, you can create a consolidated protection hub tailored precisely to your system´s needs.

Built for durability and optimal electrical performance, the connection points are meticulously crafted. The connection screws and nuts are made of substantial M10 nickel-plated brass. This choice of material ensures a highly secure, low-resistance connection for large-gauge cables, maximizing power transfer and minimizing heat buildup under heavy loads. The nickel plating provides excellent corrosion resistance, guaranteeing long-term reliability even in harsh marine or humid environments.

Main Features:

* Modular and Stackable Design: The innovative stackable fuse holder design enables the creation of compact, customized multi-circuit fuse blocks, offering exceptional versatility for complex electrical systems.
* Professional Standard Compliance: Expertly engineered for accommodating strip fuses according to DIN 43560/1 (STS), ensuring compatibility with industry-standard, high-amperage fuses.
* Simplified Installation: The base is thoughtfully designed with 2 integrated tabs for easier assembly, allowing for a quick, stable, and secure mounting process on any flat surface.
* Superior High-Current Connections: Features robust M10 connection screws and nuts made of nickel-plated brass, providing a secure, low-resistance terminal for large cable lugs and ensuring maximum electrical conductivity and corrosion resistance.
* Versatile Voltage Compatibility: Perfectly suited for a wide range of low-voltage DC systems, fully compatible with both 12V and 24V setups.

Fuses

This holder is designed to be used with high-capacity Strip Fuses (also known as STS fuses) that comply with the DIN 43560/1 standard. These fuses are specifically intended for high-current DC applications and are widely available in various amperage ratings to match your specific protection requirements. The open-style design of the SHD1 allows for easy visual inspection and replacement of the strip fuse.

Technical Specifications:

* Tension: DC 12V, DC 24V
* Connections: M10 Nickel-Plated Brass
* Weight: 0.183 kg
