Plastimo 1038 45l/min Bilge Pump

Plastimo bilge pumps have been designed in cooperation with boatowners and engineered by the Plastimo Research and Development team.

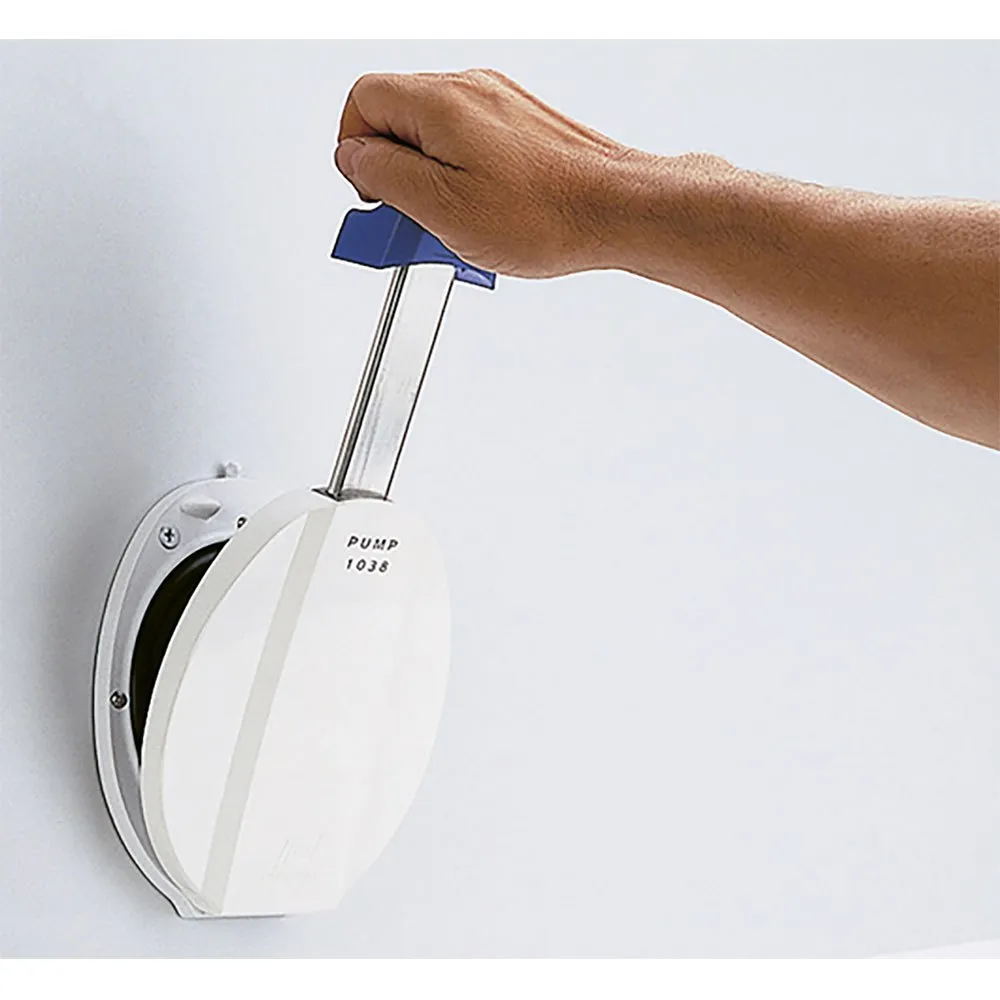

Bilge pump with telescopic handle, for efficient and more comfortable pumping.

A version with By-Pass connector allows the connection of both a hand pump and an electric centrifugal on a single water circuit.

Not suitable for a diaphragm or a flexible impeller electric pump.

Output:

1 litre per cycleCapacity, as per ISO 15083 standard (45 strokes per minute, with a 10 kPA depression):

40,5 litres/minuteWeight:

1,050 kgHose diameter:

Ø 38 mm (1 1/2´´)Supplied with:

2 elbow fittings with valve (inlet & outlet)Compact.

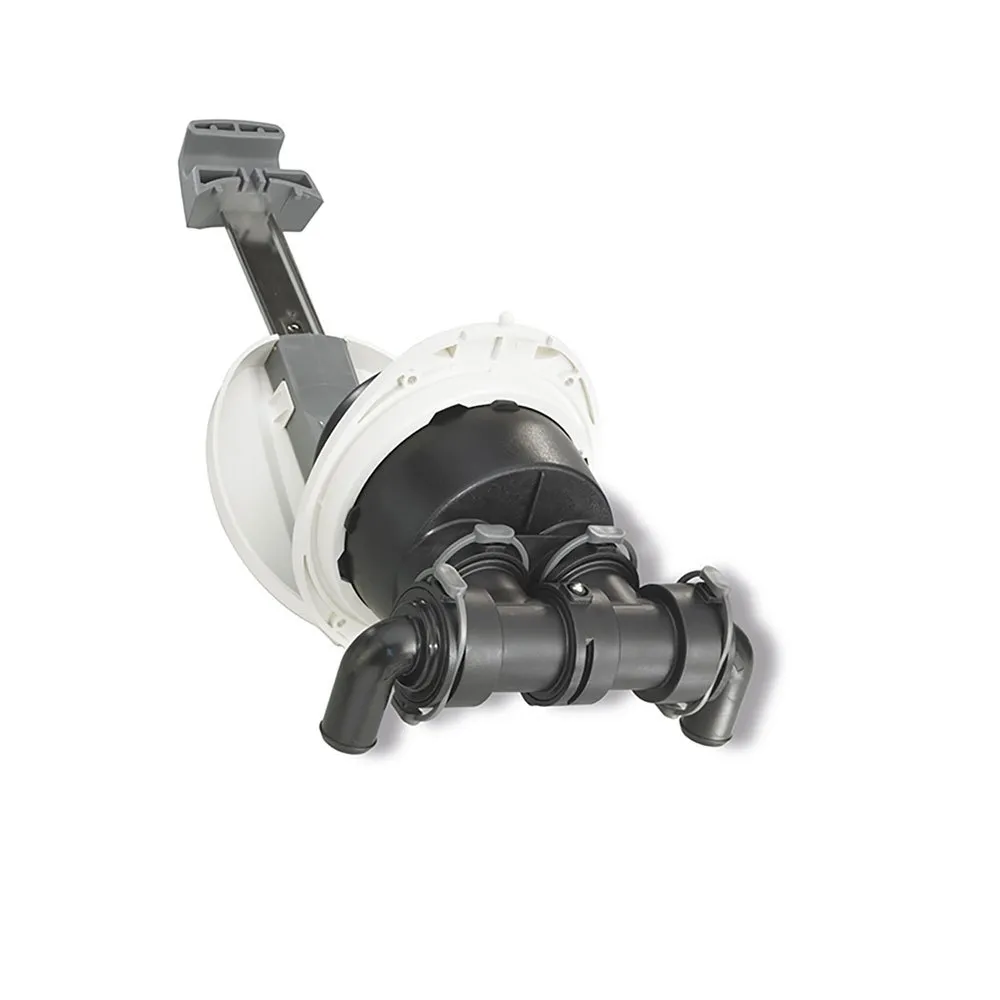

The Plastimo pump is very compact and the 90° position of the outlets allows installation where space is limited or access difficult.

Outlets swivel through 360° and therefore adapt perfectly to the pump position in relation to the strainer and thru-hull fitting.

Optimum safety.

No hassle looking for the handle at the critical moment:

the Plastimo bilge pump is always ready-to-pump, thanks to its fully integrated handle.

In case the diaphragm would leak, the water is rejected in the cockpit (not in the bilge), so you can´t help noticing it immediately.

Simple installation and maintenance.

Installing the pump is extremely simple:

all done from the cockpit.

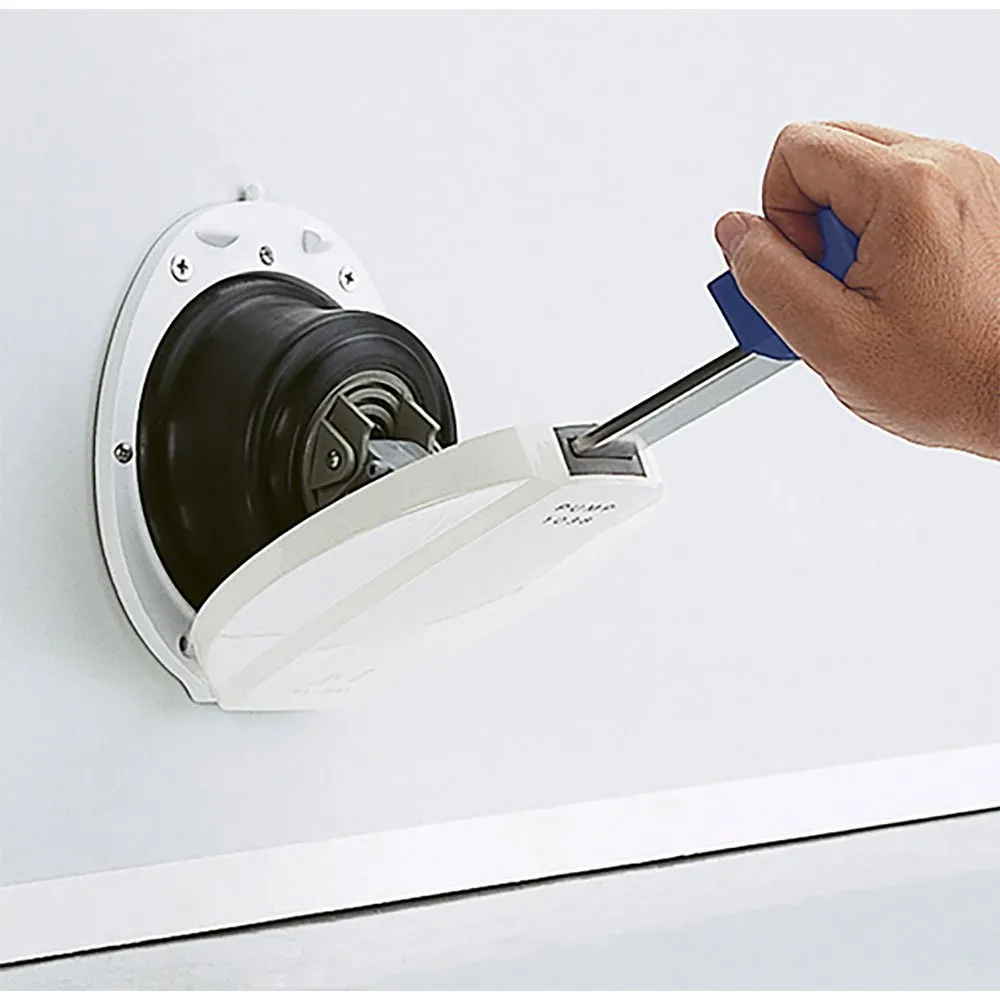

The diaphragm can be removed within seconds.
