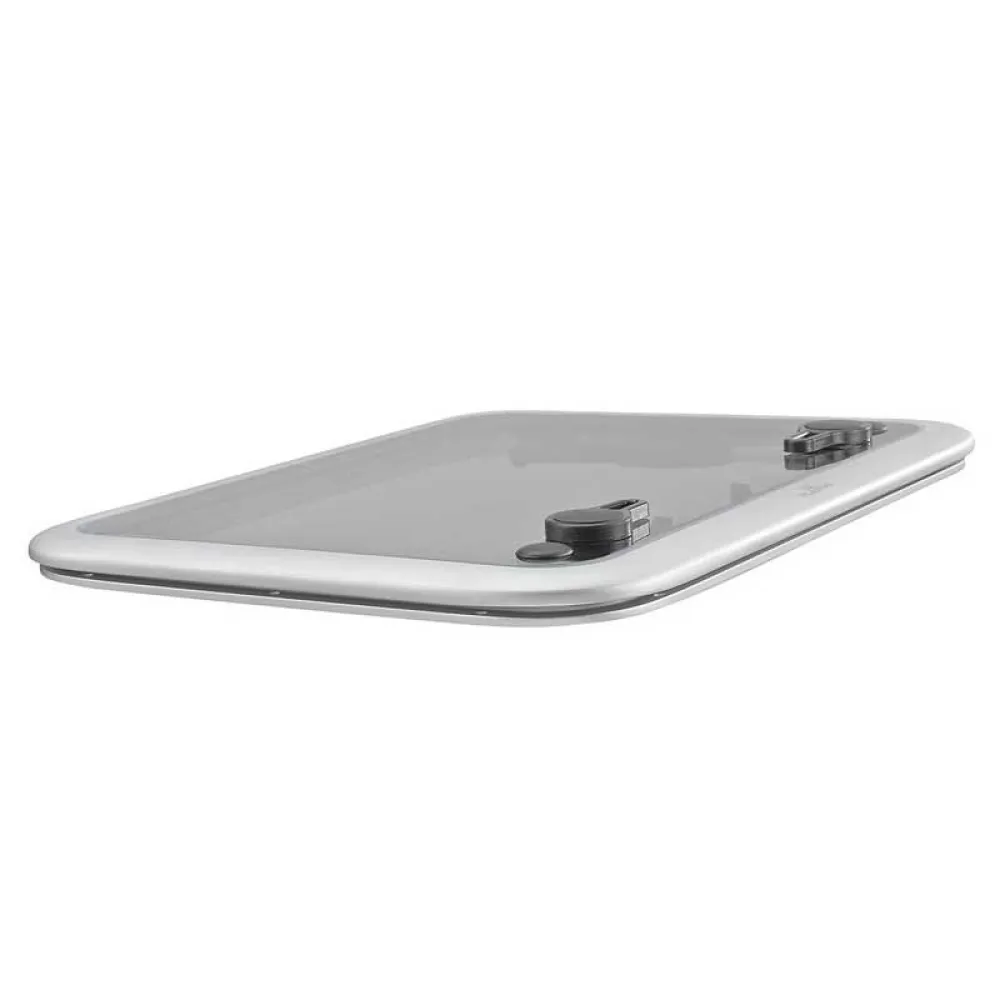

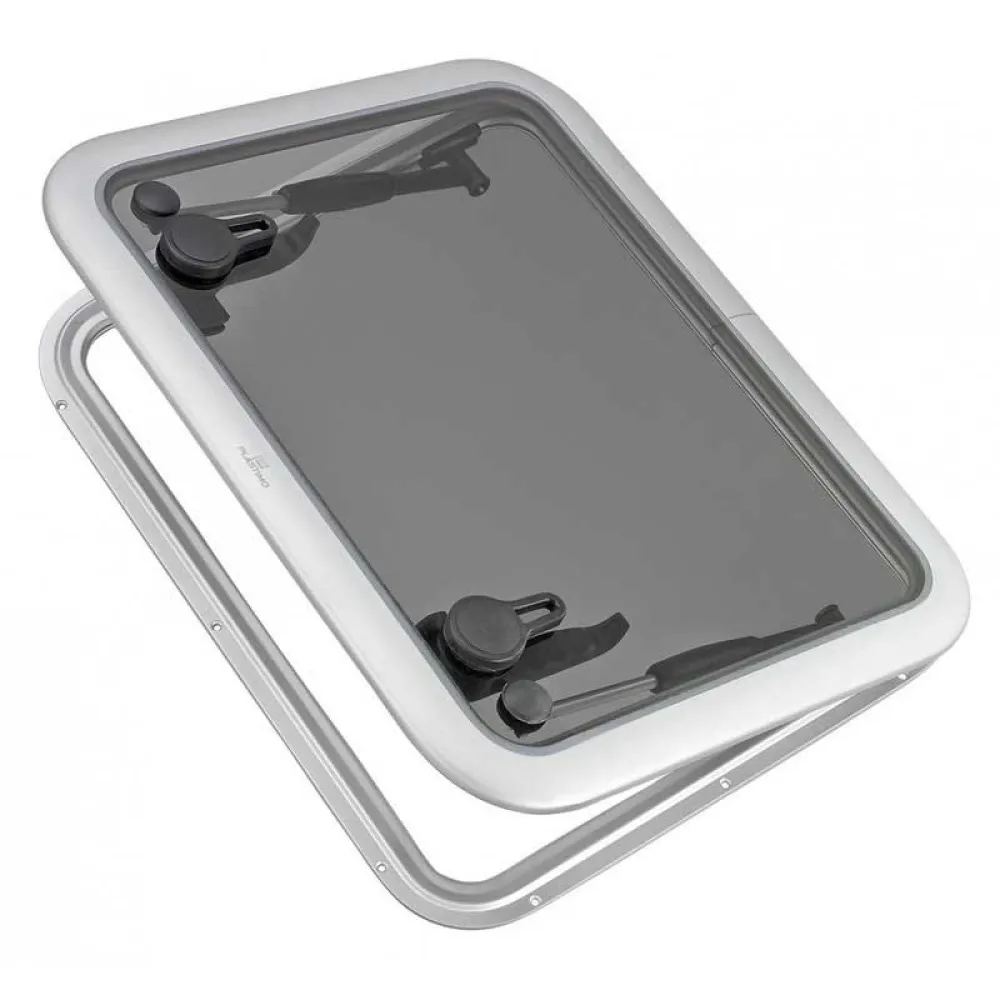

Plastimo T20 Hatch

The range of Plastimo deck hatches combines optimum watertightness, easy installation and stylish looks :

- Satin-finish aluminium frame and grey acrylic glass - Invisible hinges - One-piece aluminium lid with a thick frame section to provide optimum rigidity - Deck-hugging lid height, as slim as 19 mm to accommodate teak decks.

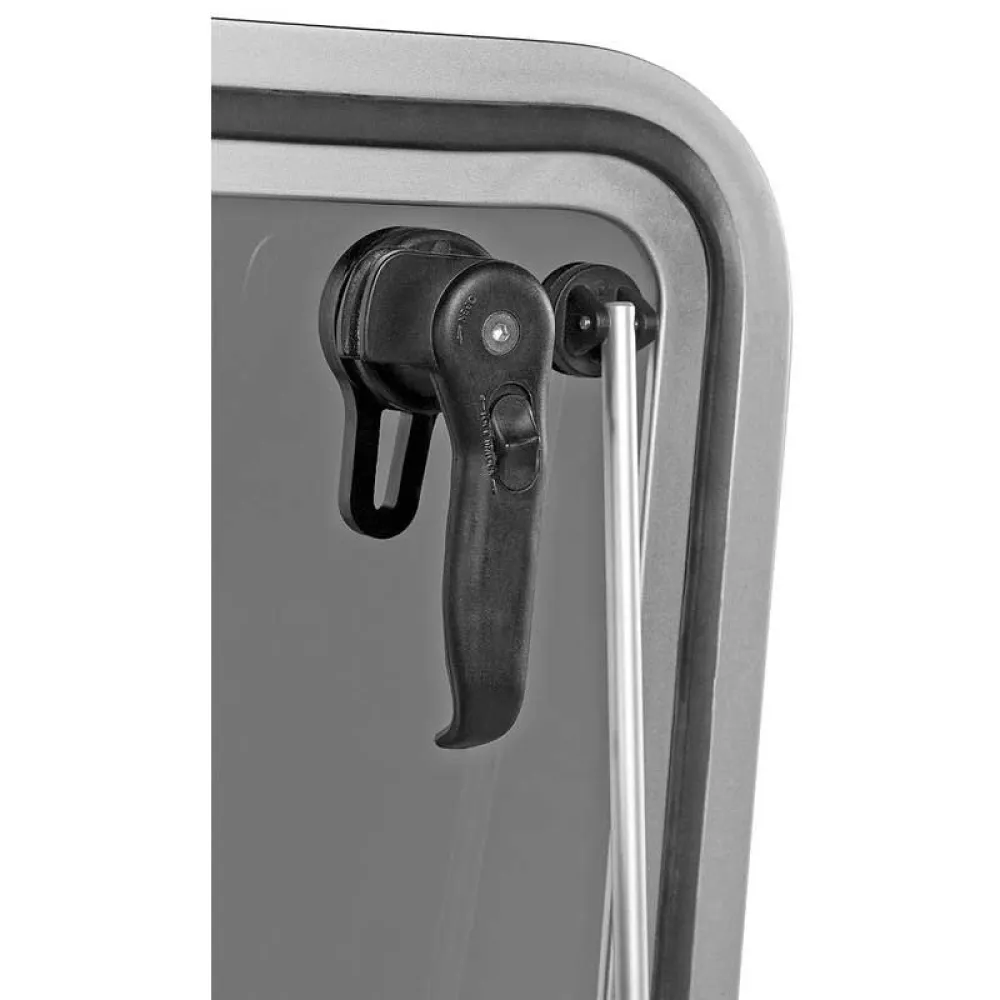

Opening device The ergonomic shape of the handles allows comfortable space for an excellent prehension.

They feature a lock catch which prevents breaking in from outside.

No neeed to fit any other locking system from outside.

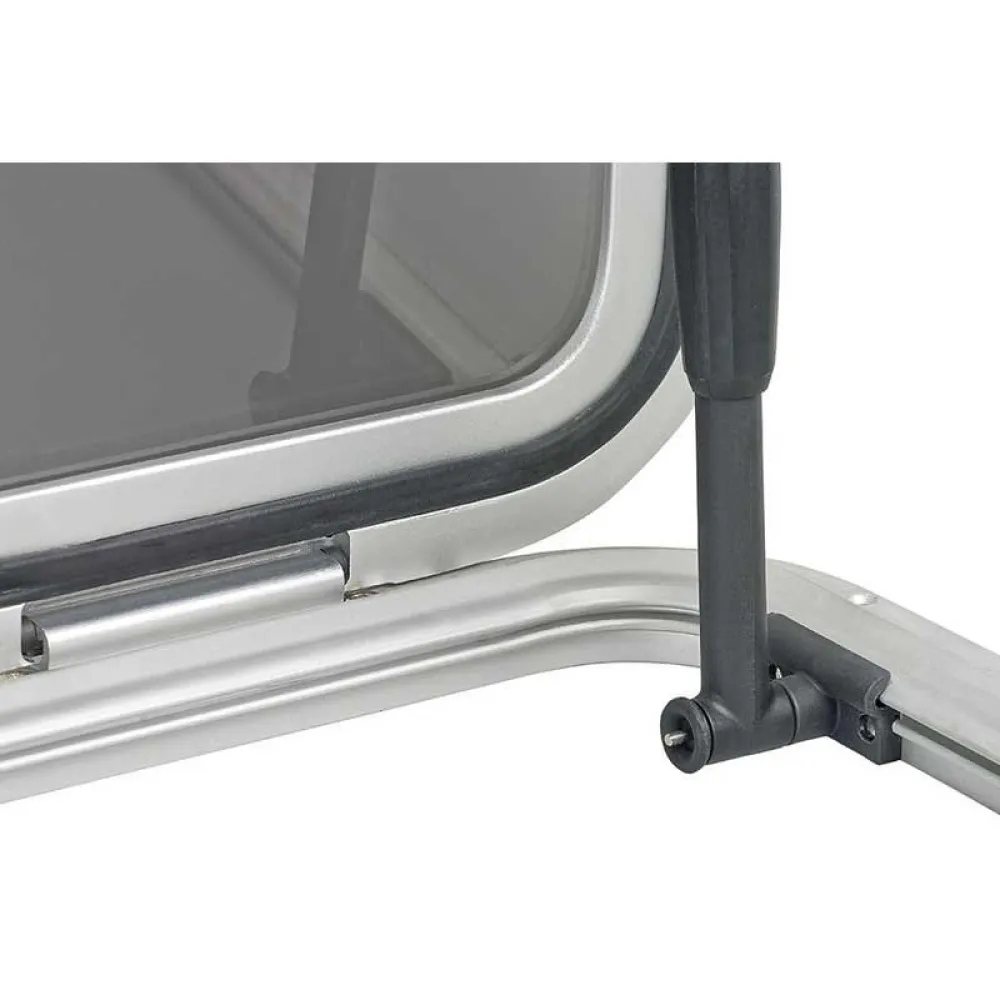

All models are equipped with adjustable stay.

Adjustable opening is as simple as releasing the stay to obtain the right position.

Aluminium hinges.

Sizes available are standards commonly installed by the industry on mass production boats.

Hatches are supplied as standard with a grey acrylic pane.

- Acrylic thickness 10 mm - Telescopic stay - Aluminium hinges - Height below deck :

15 mm - Radius 42.5 mm (1.7 ´´).

Specifications:

- External dim:

271 x 271 mm - Internal dim:

209 x 209 mm External dimensions:

- 271 x 271 mm - 10.7 x 10.7 in.

Internal dimensions:

- 209 x 209 mm - 8.2 x 8.2 in.

Cut-out dimensions:

- 211 x 211 mm - 8.3 x 8.3 in.

- Radius:

42.5mm - Radius:

1.7 in.

- Weight:

2.1 kg
