Rockford Fosgate Canbus multi function display interface module

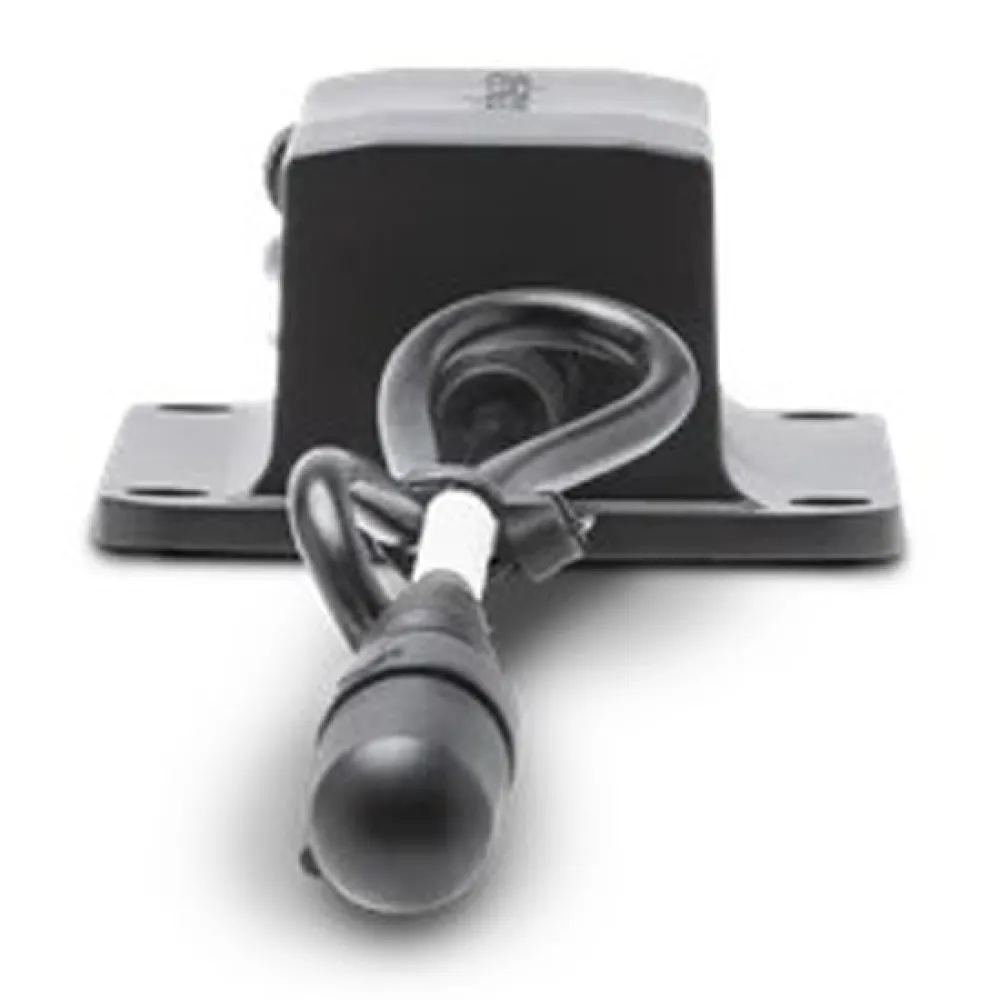

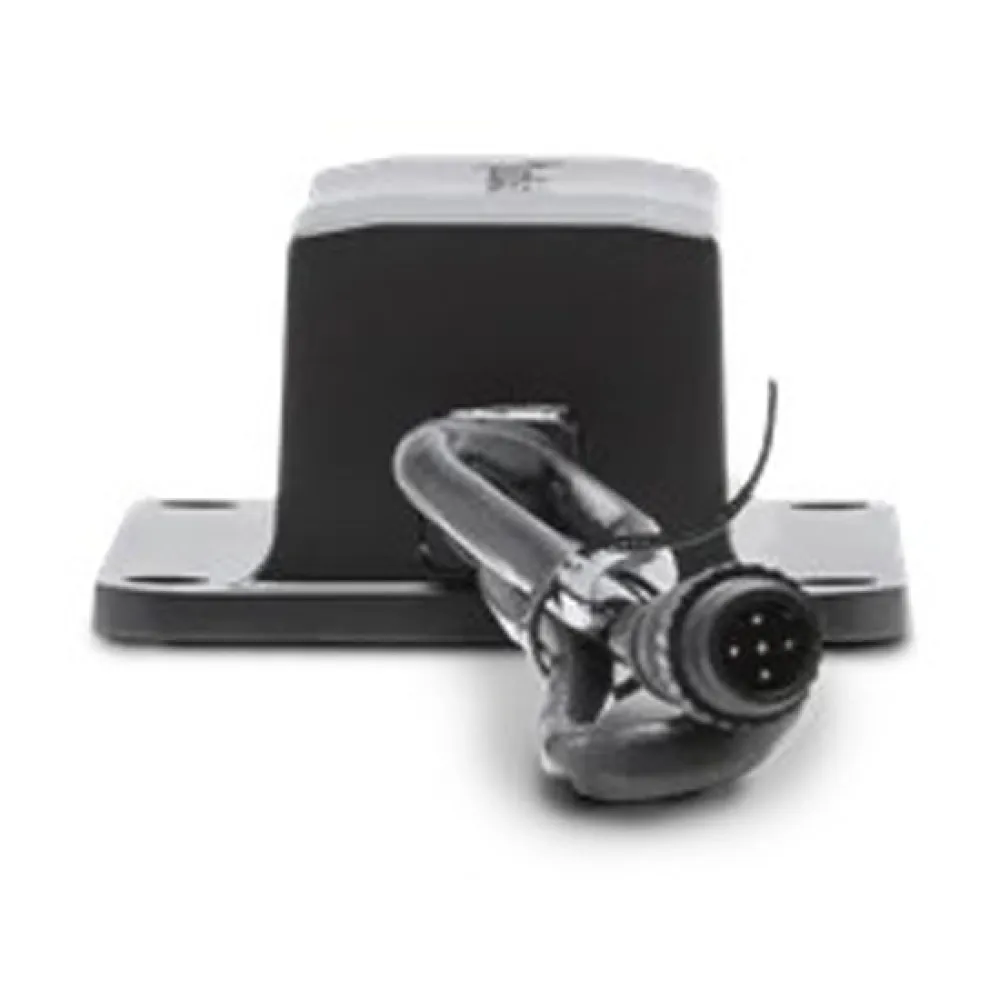

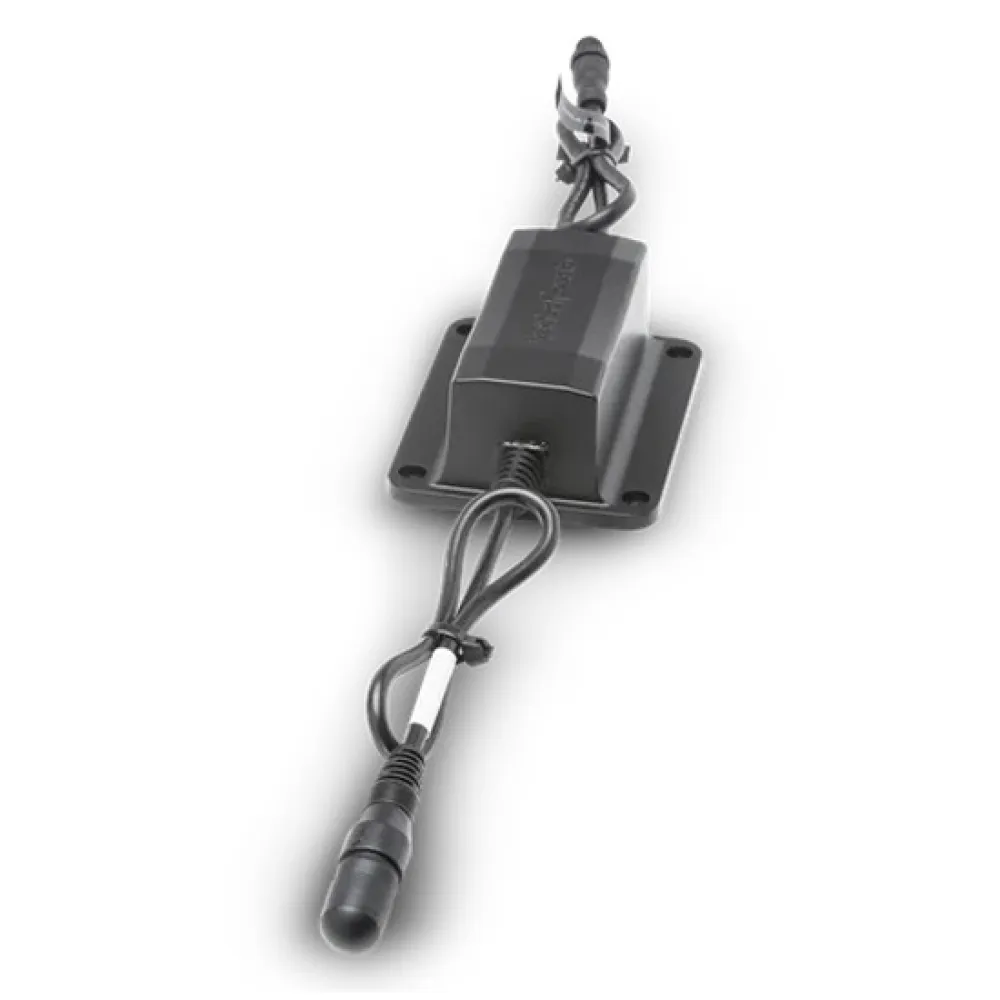

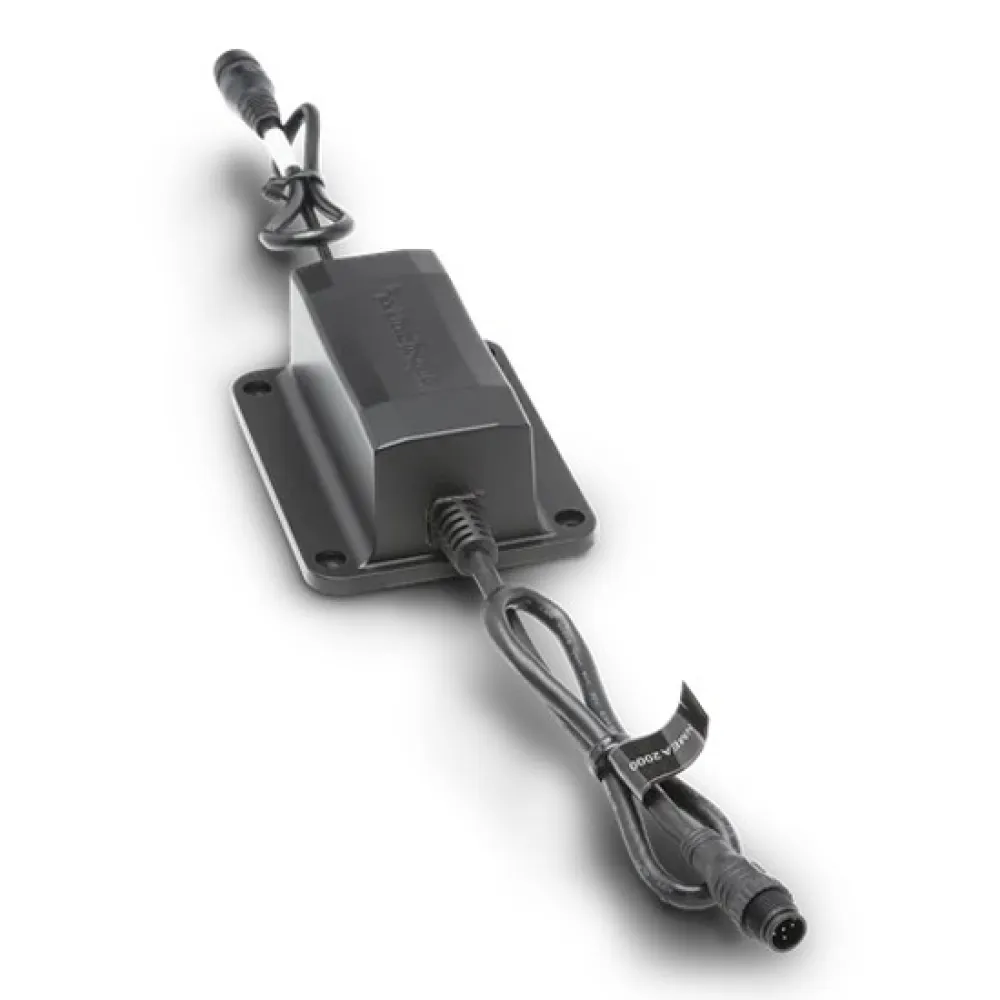

Rockford Fosgate PMX-CAN Canbus Multi-Function Display Interface Module

Elevate your marine or off-road audio experience to the pinnacle of integration with the Rockford Fosgate Canbus Multi-Function Display Interface Module. Designed for the modern vessel and vehicle, this advanced interface seamlessly bridges the gap between your high-performance Rockford Fosgate source unit and your existing Multi-Function Display (MFD). Experience the ultimate convenience of centralized control, allowing you to command your entire audio system directly from the primary navigation or information screen you already trust. This eliminates the need for separate audio head unit controls, creating a cleaner, more streamlined, and professional "glass cockpit" helm or dash. By leveraging the power of the NMEA 2000 network, this interface ensures flawless communication and instantaneous response, putting total audio command at your fingertips. Built to withstand the harsh conditions of marine and powersports environments, these modules are engineered with Rockford Fosgate´s legendary commitment to durability and performance. Unlock a new level of sophisticated control and integrate your audio and display modules into one cohesive, intuitive system.

Main Features
* Provides a direct interface to CAN bus (Controller Area Network) systems.
* Enables communication via the NMEA 2000 marine industry standard protocol.
* Compatible with specific Rockford Fosgate PMX source units for perfect integration.
* Interfaces with MFDs from major manufacturers supporting the NMEA 2000 entertainment standard.
* True plug-and-play installation requires no wire cutting or splicing on the module.
* Eliminates the need for any complex software programming or user configuration.
* Enables MFD control of primary audio functions: Volume Up/Down, Power On/Off, and Source Selection.
* Provides MFD control of playback functions: Track Up/Down and Play/Pause.
* Allows for independent Subwoofer Level control directly from the display screen.
* Engineered with a robust, water-resistant design for reliability in demanding environments.

Technical Specifications
* Device Type: NMEA 2000 CANbus Interface Translator
* Supported Protocols: NMEA 2000 (Certified)
* Operating Voltage: 9 VDC - 16 VDC
* Power Source: Powered via NMEA 2000 Backbone
* Connector Type: 8-pin Deutsch / A-Male NMEA 2000 Micro-C
* Water Intrusion Rating: IPX7 (Front), IPX6 (Back)
* Compatibility: Designed for use with Rockford Fosgate PMX-5, PMX-5-CAN, and PMX-8DH source units.
* MFD Compatibility: Compatible with MFD models from brands such as Lowrance, Simrad, and Garmin that feature NMEA 2000 connectivity and support the standard entertainment protocol
