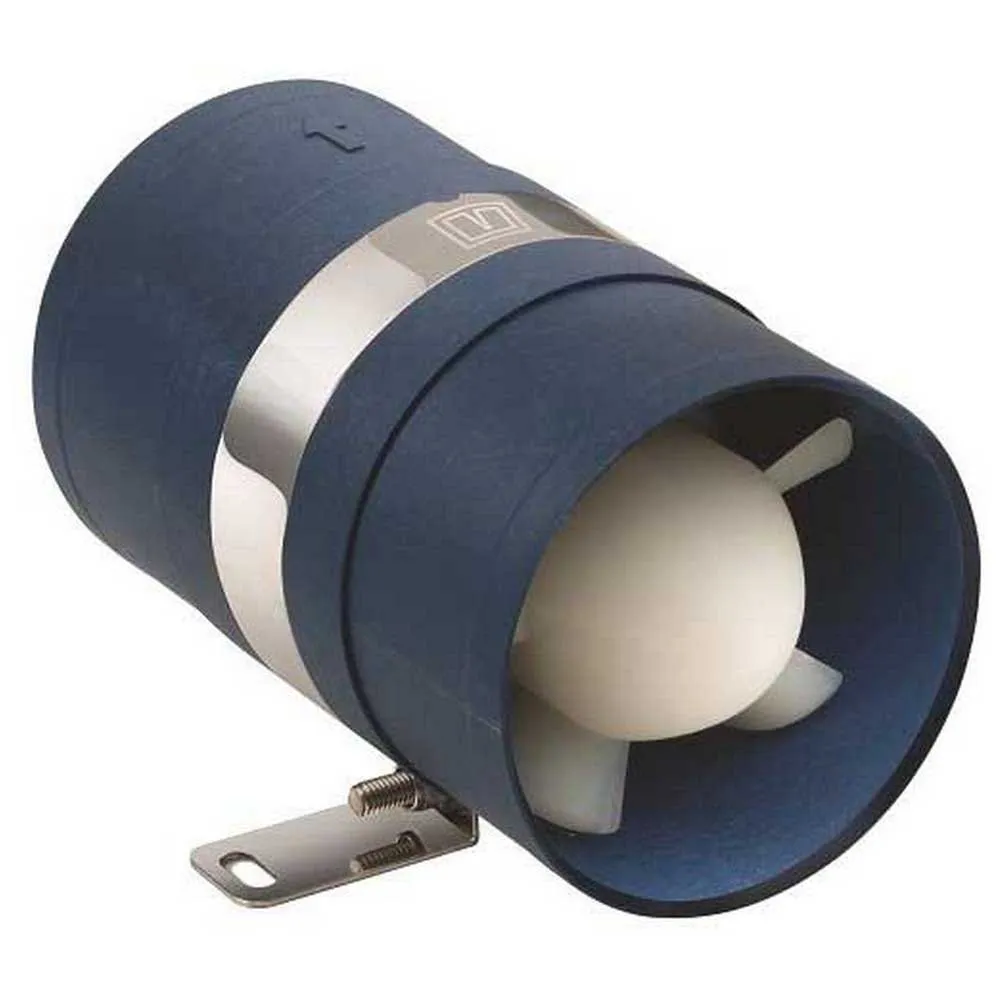

Vetus Twin Line Extractor 24V

The Twinline series is rated ‘ignition protected’, making it safe to use when a petrol/gasoline engine is installed or in spaces where combustible gases can accumulate.

These dangerous fumes can be extracted safely with the TWINLINE ventilators, so you can fire up your engine with peace of mind. The TWINLINE series is also perfectly suitable to simply extract the heat from your engine room, making it a valuable addition to diesel and electric powered boats as well.
These powerful ventilators have a very compact housing, allowing installation in the most confined spaces.

A versatile ventilator series suitable for a wide variety of applications! Twinline ventilators are not designed for continuous use and should be linked with the vessels power system. They are available from stock.Note: Vetus does not recommend using any type of extraction ventilator to provide air to the main engines. A versatile ventilator series suitable for a wide variety of applications


Specifications:

- Ignition protected to ISO 8846, ideal for application in engine rooms
- Waterproof to IP67
- Complies with ISO 9097 Marine Standard
- Capacity (depending on size) from 5 to 7 m³ per minute
- Static pressure: 36 mm H2O
- Hose may be connected to Scirocco (TWinline Ø 76 mm only ) or Typhoon (TWINLINE Ø 76 mm & Ø 102 mm) shell ventilator
- Hose diameter in mm: 76
- Capacity (m³/minute): 5
- Static pressure: 36 mm H2O
