BSD Substance Crank Tool – Professional BMX Crank Installation & Removal

Ensure the heart of your BMX drivetrain is installed with professional precision using the BSD Substance Crank Tool. As a vital piece of any serious rider´s maintenance kit, this transmission tool is engineered specifically to eliminate the guesswork and potential damage associated with installing and removing modern 2-piece and 3-piece BMX cranks. Say goodbye to hammers and makeshift methods that can mar your crank arms, damage your bottom bracket bearings, or strip delicate spindle threads. This tool provides the controlled, even pressure required for a perfect fit every time, protecting your investment and ensuring your bike runs smoothly and silently.

The BSD Crank Tool is the definitive solution for any rider running BSD Substance or Substance XL Cranks. Its primary benefit lies in its dual-function design, which masterfully handles both assembly and disassembly. For installation, the tool smoothly pulls the crank arm onto the 48-spline spindle, seating it perfectly against the bearings without any brutal force. For removal, it acts as a self-extracting system, pushing the arm off the spindle with simple mechanical leverage. This process not only makes maintenance effortless but also significantly extends the life of your components by preventing stress fractures and alignment issues. Built for the demands of dedicated BMX riders, this tool is an indispensable asset for home mechanics and bike shops alike, guaranteeing a professional-grade result for your bike´s transmission.

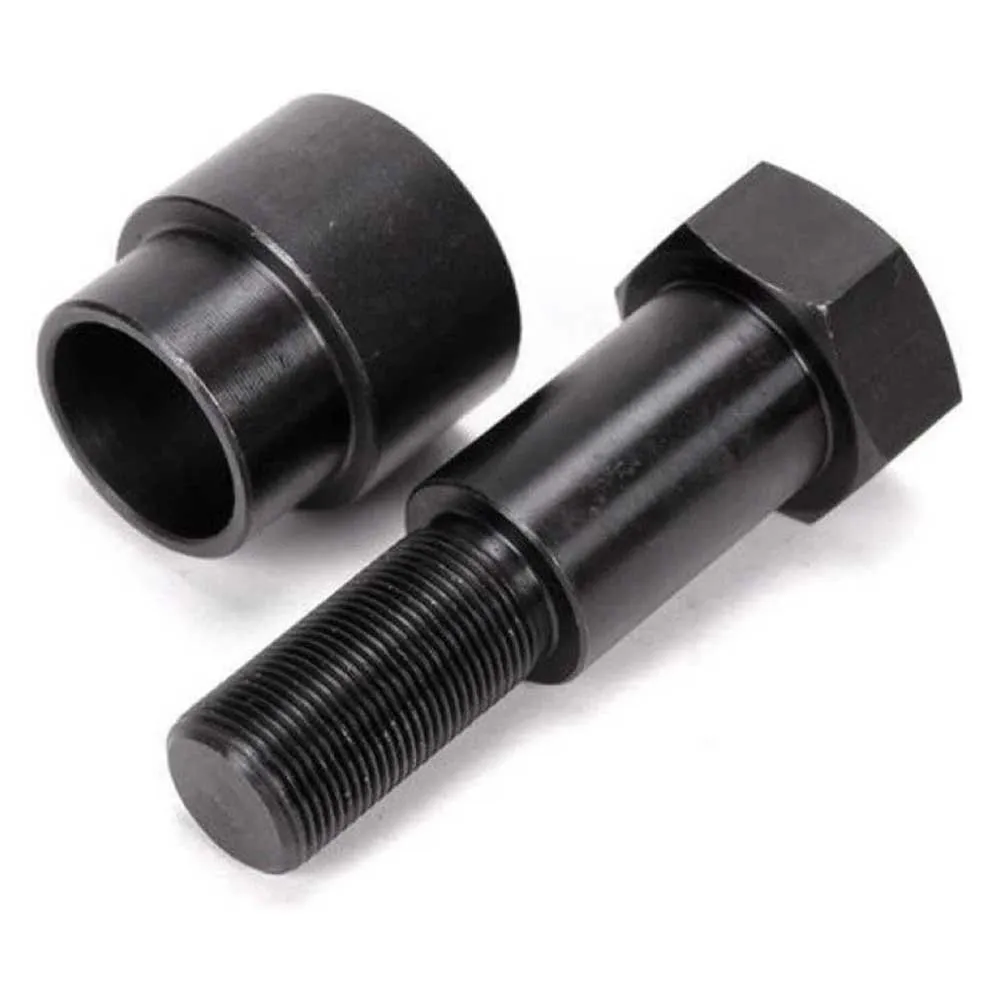

BSD Substance Crank Assembly Tool black.

FEATURES:

-Color:black.

-Area of application:BMX.

- Dual-Function Design: Expertly engineered for both the installation and removal of BMX crank arms, making it a versatile all-in-one solution.
- Damage-Free Operation: The integrated protective cap and precision threads ensure that your crank arms and spindle remain in pristine condition, free from scratches, dents, or stripped threads.
- High-Strength Construction: Manufactured from hardened, heat-treated steel to withstand high torque and provide years of reliable service in your workshop.
- Optimized for BSD Cranks: Specifically designed for a perfect interface with BSD Substance, Substance XL, and other compatible 22mm and 24mm 48-spline BSD crank systems.

Technical Specifications:

- Product Type: Crank Installation & Removal Tool
- Material: Heat-Treated Chromoly Steel
- Primary Compatibility: BSD Substance Cranks, BSD Substance XL Cranks
- Spindle Compatibility: 22mm & 24mm, 48-Spline Spindles
- Required Tools for Operation: 8mm Allen Key and a 17mm Wrench (not included)
- Function: Pulls crank arm onto spindle for installation; pushes crank arm off spindle for removal
