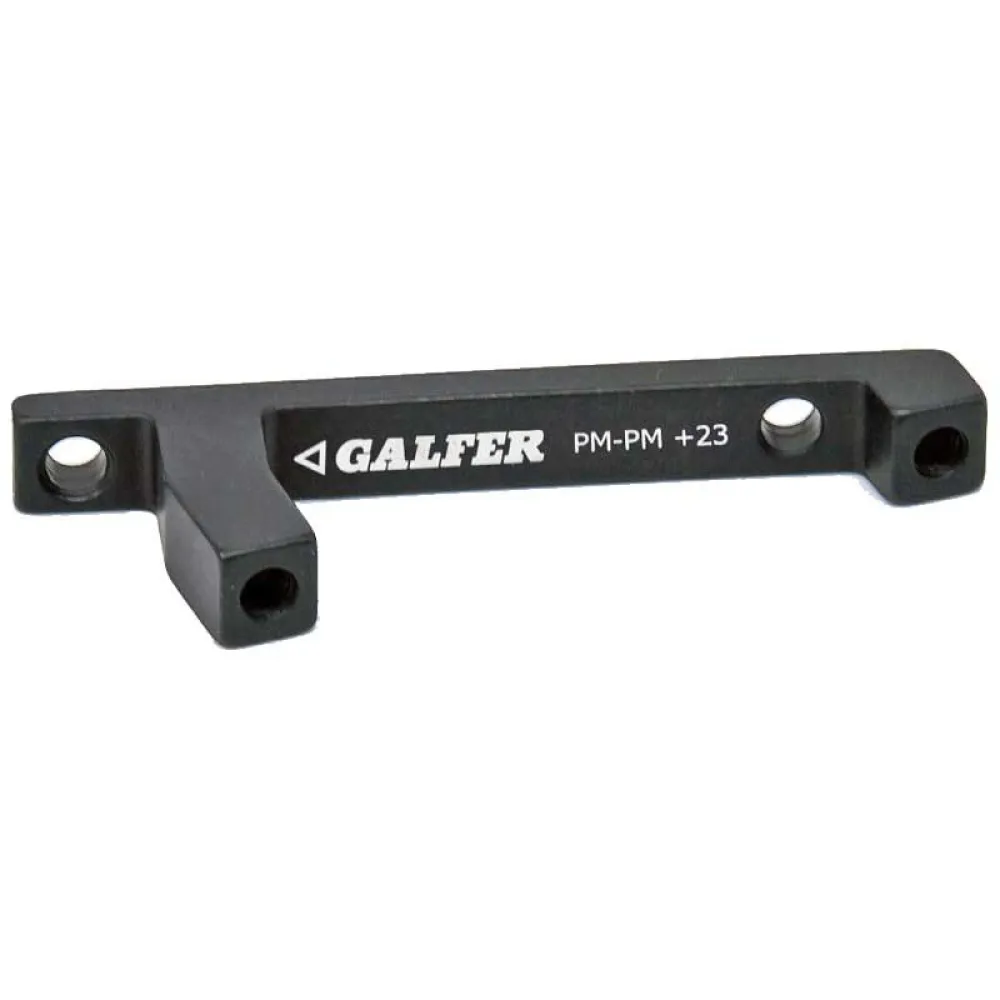

Galfer PM-PM + 23 mm disc brake caliper adapter

Answer of Albert

Yes, that´s what it´s for.

si, es para eso.

Answer of Albert

The adapter is to put a 223 disc, the caliper is the same

El adaptador es para poner disco de 223 la pinza da lo mismo

Answer of Aaron

Check the front adapter for its size. Probably a + 20. If this is the case it should work at the back allowing you to go from a 160 rotor to a 180 rotor. Now you also need to replace that +20 at the front so to go from a 180 rotor to a 203. You will need the +43 adapter from galfer. Not the + 23.

Check the front adapter for its size. Probably a + 20. If this is the case it should work at the back allowing you to go from a 160 rotor to a 180 rotor. Now you also need to replace that +20 at the front so to go from a 180 rotor to a 203. You will need the +43 adapter from galfer. Not the + 23.

Answer of Adel

The front is different from the rear

El delantero es diferente al trasero

Answer of Rubén

If your bike does not come with an adapter on the caliper as standard, and the caliper is directly screwed to the fork, this +23 adapter is correct. On the contrary, if it comes with a +20 adapter, like the 2022 aluminum bikes come with for Fox forks, you would have to buy the +43 adapter.

Si tu bici no trae adaptador, en la pinza, de serie, y la pinza va directamente atornillada a la orquilla, este adaptador de +23 es correcto. Por el contrario, si trae un adaptador de +20, como si traen las bicis de aluminio del 2022 para las orquillas Fox, tendrías que comprar el adaptador de +43.

Answer of Diego

You give all the necessary information, so it is a pleasure to answer your question. Yes, this adapter is the one you need. It comes with 2 screws, which are for attaching this support to the fork. You don´t need longer screws, you use the ones you have now to hold the caliper to this support, and the ones it comes with to hold the support to the fork. Comes with 4 holes

Das todos los datos necesarios, así da gusto responderte la pregunta. Si, este adaptador es el que necesitas. Viene con 2 tornillos, que son para la sujeción de este soporte a la horquilla. No necesitas tornillos mas largos, los que tienes ahora los utilizas para sujetar la pinza a este soporte, y los que trae para sujetar el soporte a la horquilla. Trae 4 orificios

Answer of francesco

This increases by 23mm screws are not included

Questo aumenta di 23 mm le viti non sono incluse

Answer of German

Yes, the Lyrik Ultimate has a PM (Post Mount) system and this adapter allows you to go from 180 mm to 203 mm in PM systems. The adapter includes the screws that fix the adapter to the fork and to install the caliper on the adapter, the same screws that you have are used (the adapter only moves the caliper longitudinally, in the direction of movement of the fork, not in the radial direction, and this way the screws that you have for the 180 mm assembly), you do not need new screws. In my upgrade from 180 mm to 203 mm with this adapter I didn´t need to buy anything, I just got to mount it anyway.

Sim, a Lyrik Ultimate leva sistema PM (Post Mount) e este adaptador permite ir de 180 mm a 203 mm em sistemas PM. O adaptador inclui os parafusos que fixam o adaptador ao garfo e para instalar a pinça no adaptador servem os mesmos parafusos que tens (o adaptador apenas move a pinça longitudinalmente, na direção de movimento do garfo, não na direção radial, e esta maneira servem os parafusos que tens para a montagem de 180 mm), não precisas de novos parafusos. Na minha atualização de 180 mm para 203 mm com este adaptador não precisei de comprar nada, foi chegar em montar na mesma.

Answer of francesco

Increases 23 mm so I don´t think so on the 200, I used the rear to mount Galfer 203 and the front Galfer 223

Aumenti 23 mm quindi il 200 non credo, io l´ho usato posteriore per montare galfer 203 e anteriore galfer 223

Answer of German

Galfer´s PM-PM +23mm brake adapter was enough to go from 180 to 200 mm on my rear disc without any problems. Small adjustments to brake and disc slamming can be made with extra washers on the bolts.

O adaptador de freio PM-PM +23mm da Galfer deu para ir de 180 a 200 mm no meu disco traseiro sem problema. Pequenos ajustes para bater travões e disco podem ser feitos com arruelas extras nos parafusos.

Answer of Diego

It depends on whether it is the rear or front brake. If it is the rear, in my case the galfers are almost useless, I had to put a magura QM40. The supports are universal, the brand does not matter. If it is the front one you have to know how many mm parts without support and add what you need. For example, a fox 38 starts at 180mm without an adapter, so you would need a +43 to reach the 223mm disc. A zeb, if I´m not mistaken, starts at just 200mm, so you need a +23 like this. One of +20mm is this: https://www.tradeinn.com/bikeinn/es/galfer-postmount-adaptador-20-mm/137749388/p

Depende de si es el freno trasero o delantero. Si es el trasero, en mi caso los galfer no sirven por poco, tuve que poner un magura QM40. Los soportes son universales, da igual la marca Si es el delantero tienes que saber de cuantos mm partes sin soporte y añadir lo que necesites. Por ejemplo una fox 38 parte de 180mm sin adaptador, por lo que necesitarías un +43 para llegar a los 223mm del disco Una zeb, si no me equivoco parte de 200mm justos, por lo que necesitas un +23 como este. Uno de +20mm es este: https://www.tradeinn.com/bikeinn/es/galfer-postmount-adaptador-20-mm/137749388/p

Answer of francesco

I used this to mount 223 Galfer disc and it´s perfect

Io ho usato questo per montare disco galfer da 223 è perfetto

Answer of francesco

I used this both back for disk 203 and forward for disk 223.

Io ho usato questo sia dietro per disco 203 che avanti per disco 223.
