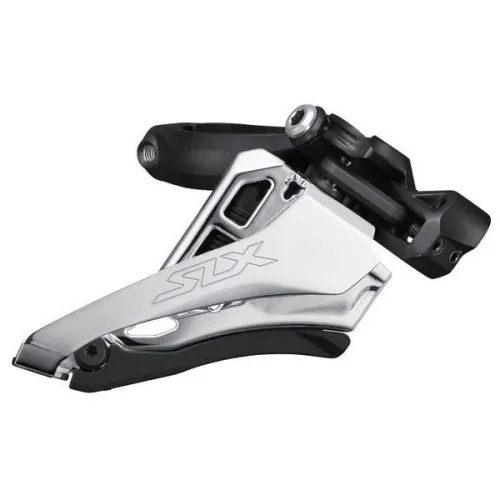

Shimano SLX M7100 Clamp front derailleur

SLX - for those who listen to the call of the mountain bike

- Like the DEORE XT, the new SLX M7100 also features Shimano innovations such as the innovative 12v cassette with MICRO SPLINE system with 10-45 or 10-51 developments, connecting rods 1x12 or 2x12, a 12v chain specific to the SLX, 2 or 4 piston disc brakes, fully adjustable ISPEC-EV controls, bushings, derailleur and rear derailleur optimized for 12v, bringing premium technologies closer to those who discover authentic cycling of Mountain.

- Changes: With monoplate versions (RD-M7100-SGS) and double plate (RD-M7120-SGS), the SLX rear derailleur allows precise and rapid changes in the 12 speeds. The two changes feature SHIMANO SHADOW RD + technology, damping stops and 13T pulley wheel that make it easier to enjoy quieter outings. Rear gear weight: RD-M7100-SGS: 316 g, RD-M7120-SGS: 322 g.

- The front derailleur arrives with a specification valid for 48.8 mm and 51.8 mm chain lines, but is available for Type D, Type E and Type M assemblies. Derailleur weight: FD-M7100-D: 135 g , FD-M7100-E: 16 6g, FD-M7100-M: 114 g.


Features:

- Front Derailleur SIDE SWING
- Increased traction range and no chain friction for long distance bikes
- Same specifications for 48.8 mm and 51.8 mm chain lines
- Range extra wide with double front 36-26D
- Available in D, E and M type mounts
- The M type bracket needs an adapter (ø 34.9 mm)
- Compatible with 2.3 inch tires in wider rings
- Keep your concentration and fun on rough and uneven terrain.
- Wide chassis mounting compatibility
- Greater tire separation
- Greater compatibility


Specifications:

- Remarks S-size adapter is available in OTC package only. Chainline 48.8 mm, 51.8 mm compatible
- Drive: Side Swing (Rocker with cable side travel)
- Action: SIDE SWING
- Angled clamp design
- Angle travel adjustment bolt
- Cable passage type Exclusive front drive
- Cable Route Type Front-Pull
- Chain line (mm): 48.8 (142 mm OLD), 51.8 (148 mm OLD)
- Sheath angle: 66-69
- Compatible chain: HG 12-speed
- Link bearings: 6
- Support Clamp 28.6 mm - *
- 31.8 mm Clamp Bracket: X (w / M size adapter)
- 34.9 mm Clamp Bracket
- Type E Bracket with bottom bracket
- Mount: Clamp Band 31.8 mm, Clamp Band 34.9 mm, E-type with BB Plate
- Speeds Front part: 2
- Speeds Rear part: 12
- Toothed top gear: 36-38T
- Total capacity: 10T


Technology:

- SIDE SWING Front Derailleur, Horizontal movement that follows the direction of the chain Smooth and efficient front shift effort
- More separation of covers for large wheels
- Without linkage behind the seat post
- Freedom to reduce the length of the sheath
