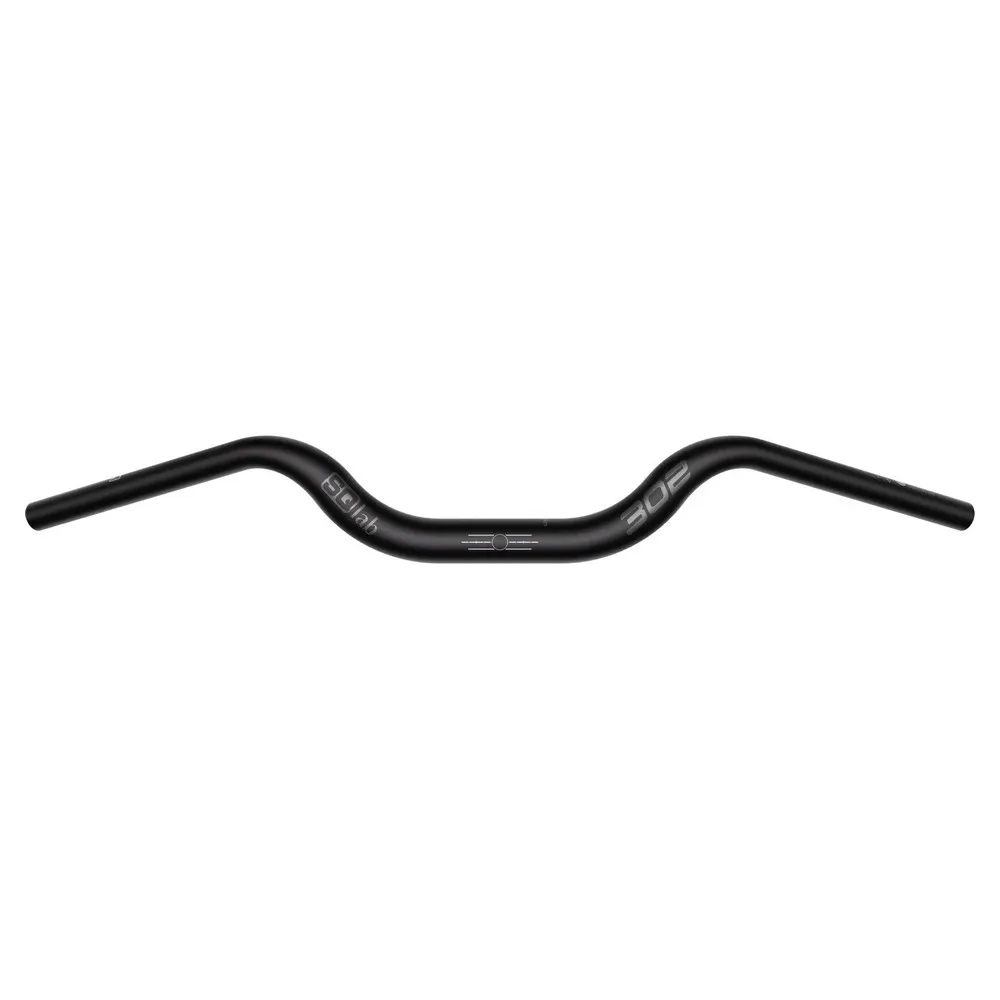

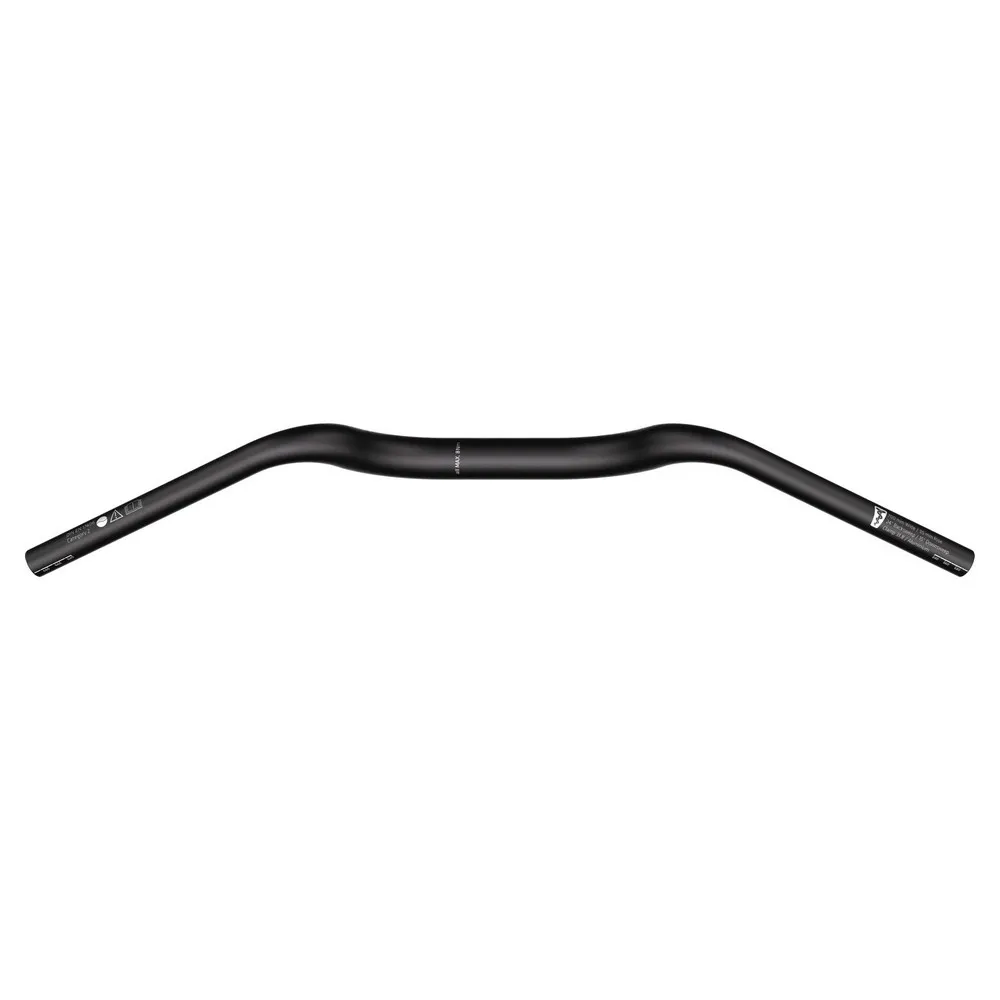

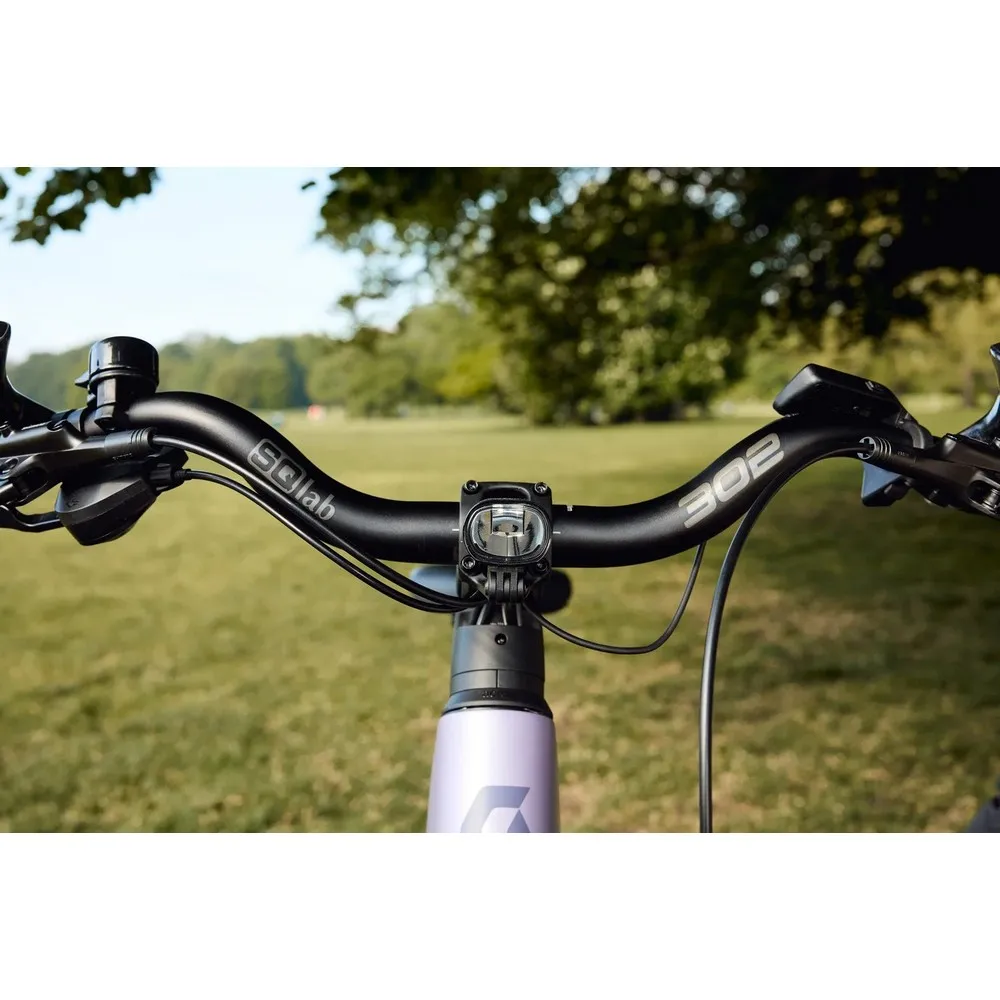

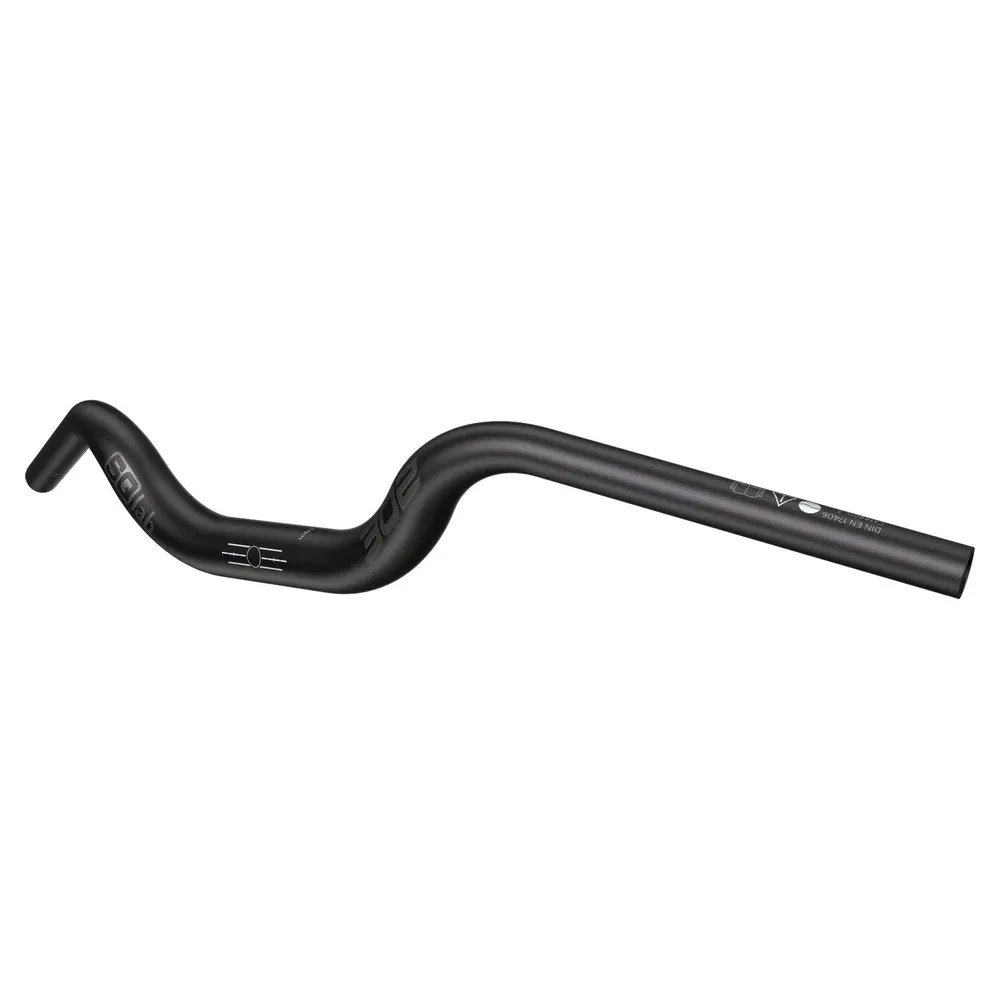

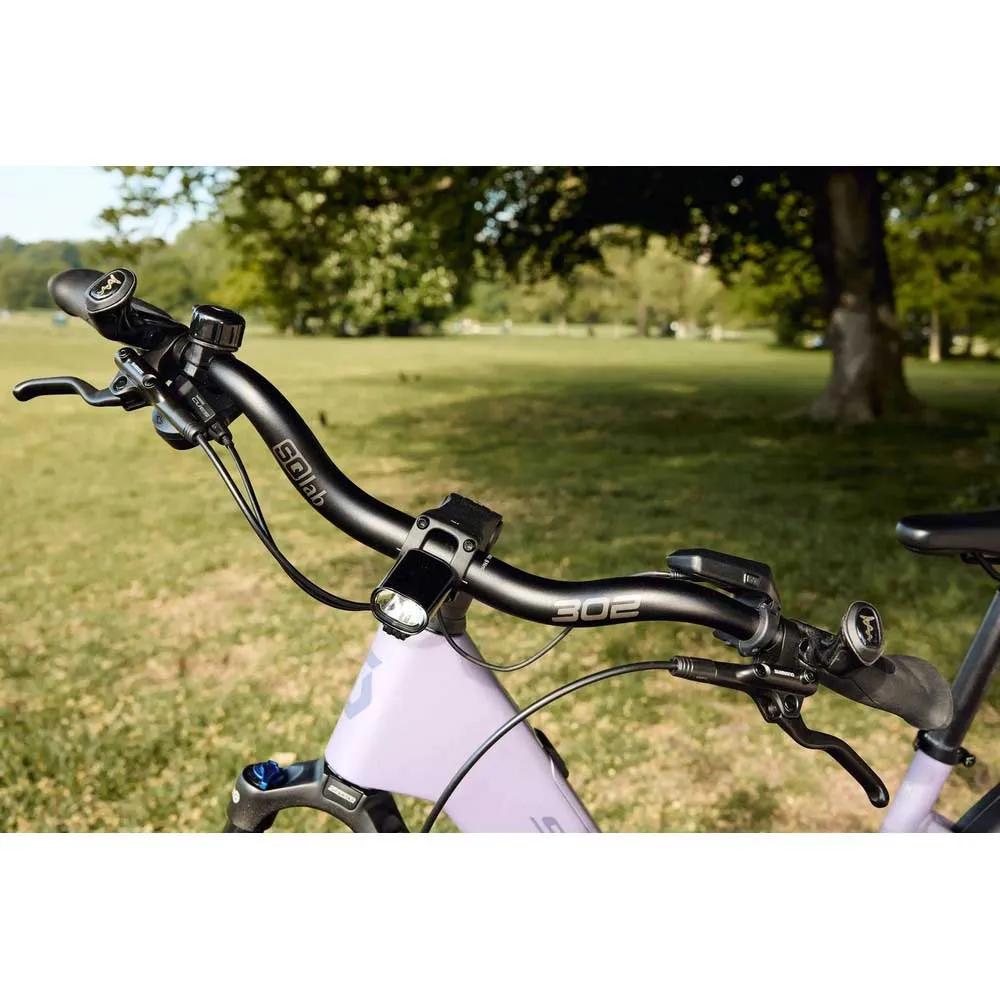

SQlab 302 3.0 35 mm handlebar

The SQlab 302 3.0 was designed for comfort-oriented trekking and e-bikes. With 24° backsweep and 15° downsweep, it supports a relaxed posture with a straight transition from the forearm to the hand, reduces pressure points, and relieves shoulders and neck. The moderate rise promotes an upright seating position, ideal for long tours. With a width of 700 mm, the handlebar provides control and stability on the road and in light terrain. The high load capacity of up to 180 kg system weight also makes it the ideal choice for e-bikes. Key Features: 24° backsweep for natural hand position and reduced pressure 15° downsweep for relaxed elbow position and neck relief Modified rise for upright seating position on trekking and e-bikes 700 mm width for control, stability, and safety Compatible with e-bikes up to 25 km/h, max. system weight: 180 kg Complies with DIN/ASTM Category 3 – for paved paths and light terrain

Ergonomic Backsweep:
- Ensures a straight transition from the forearm to the hand and reduces numbness in the fingers.

Relaxed Downsweep:
- The downsweep allows a natural elbow position that relieves pressure on the neck and shoulder muscles.

Comfort Rise:
- The Rise or the handlebar height allows an individual riding position.

Specifications:

- Area Of Use: Trekking Comfort
- Weight(S) In G: Approx. 401
- Material: Aluminum 7050
- Width(S) In mm: 700
- Maximum Cutting Width In mm: 640
- Rise In mm: 35
- Backsweep In°: 24
- Downsweep In°: 15
- Clamp Diameter In mm: 31.8
- Clamping Width Stem In mm: Min. 40 - Max. 58
- Maximum Torque In Nm: 8
- Maximum System Weight Allowed In Kg: 180
- E-Bike Ready: Yes
- Din/Astm Categories: 2
