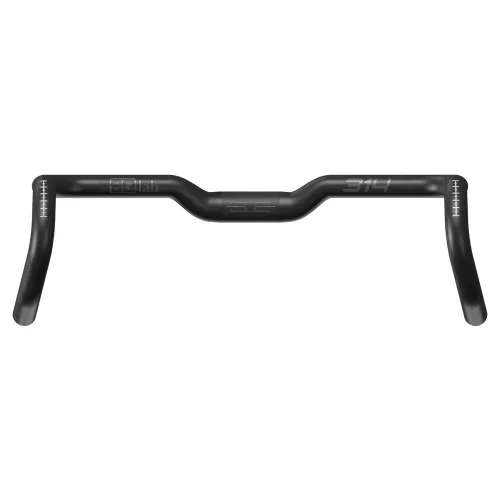

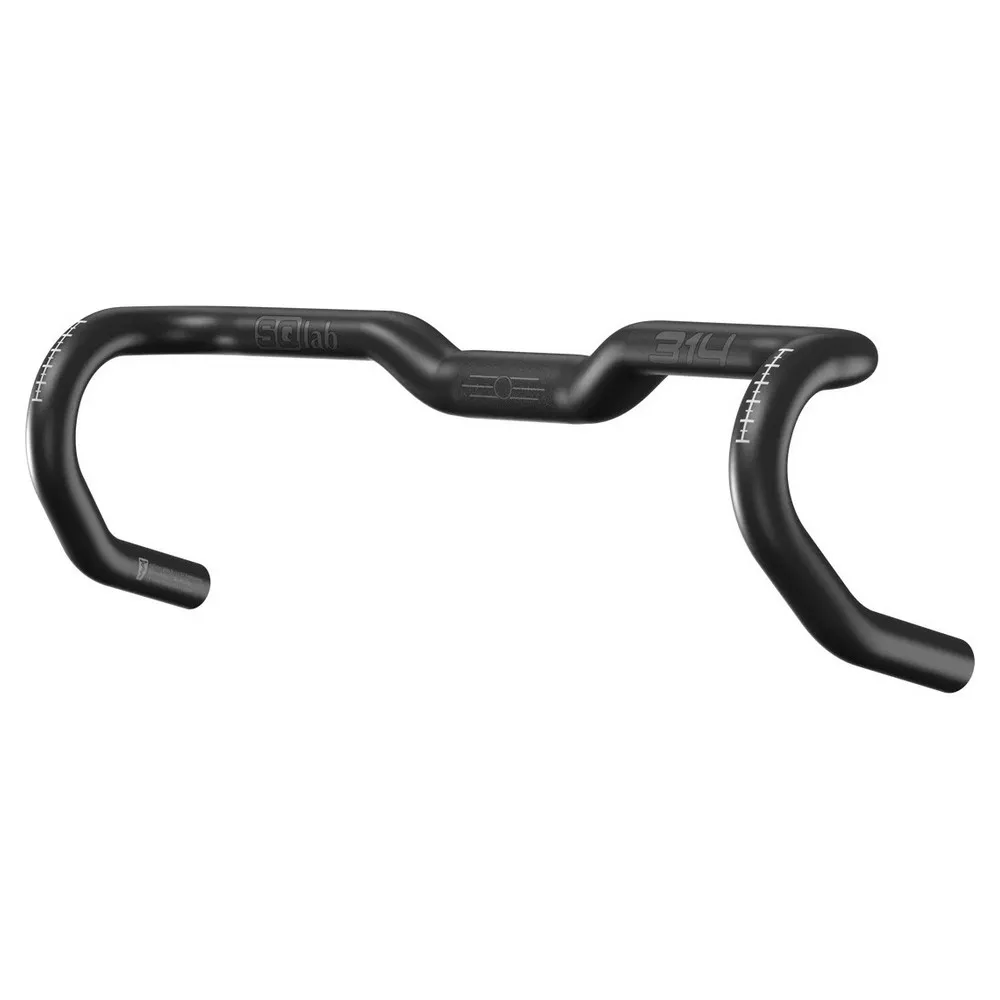

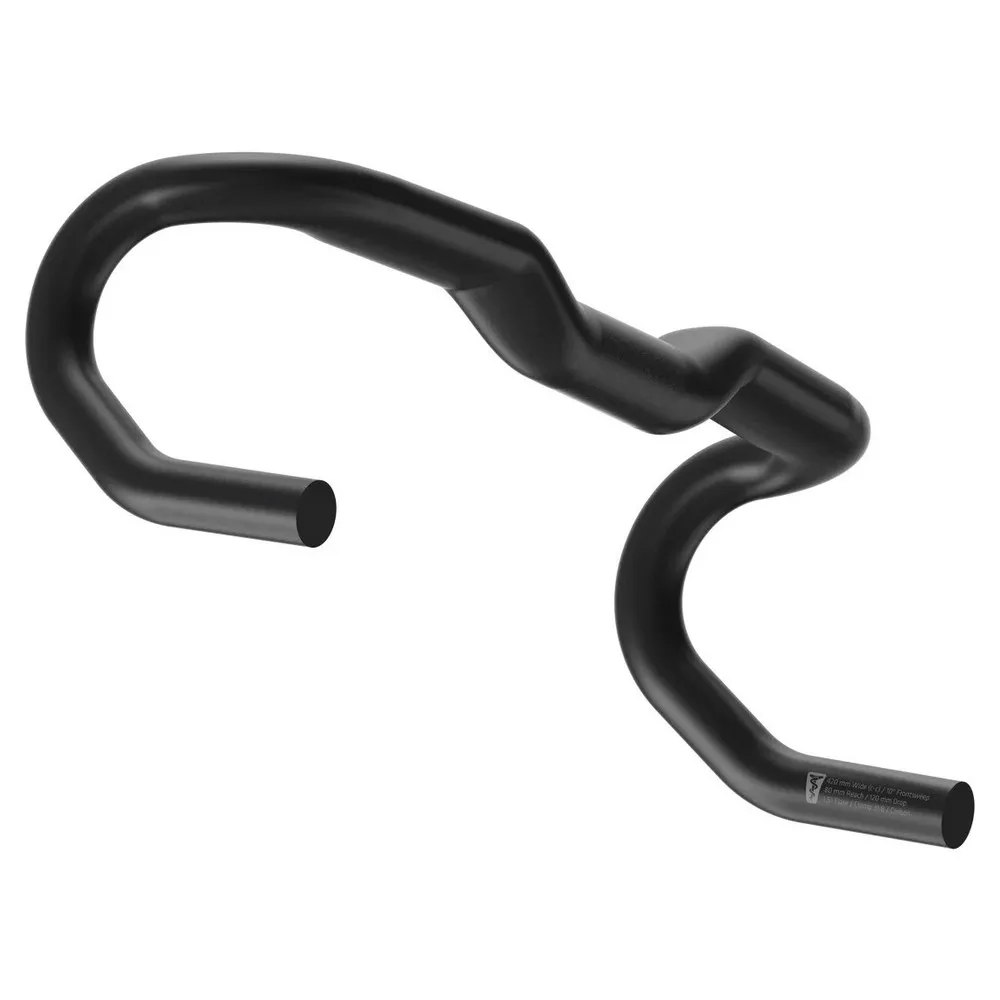

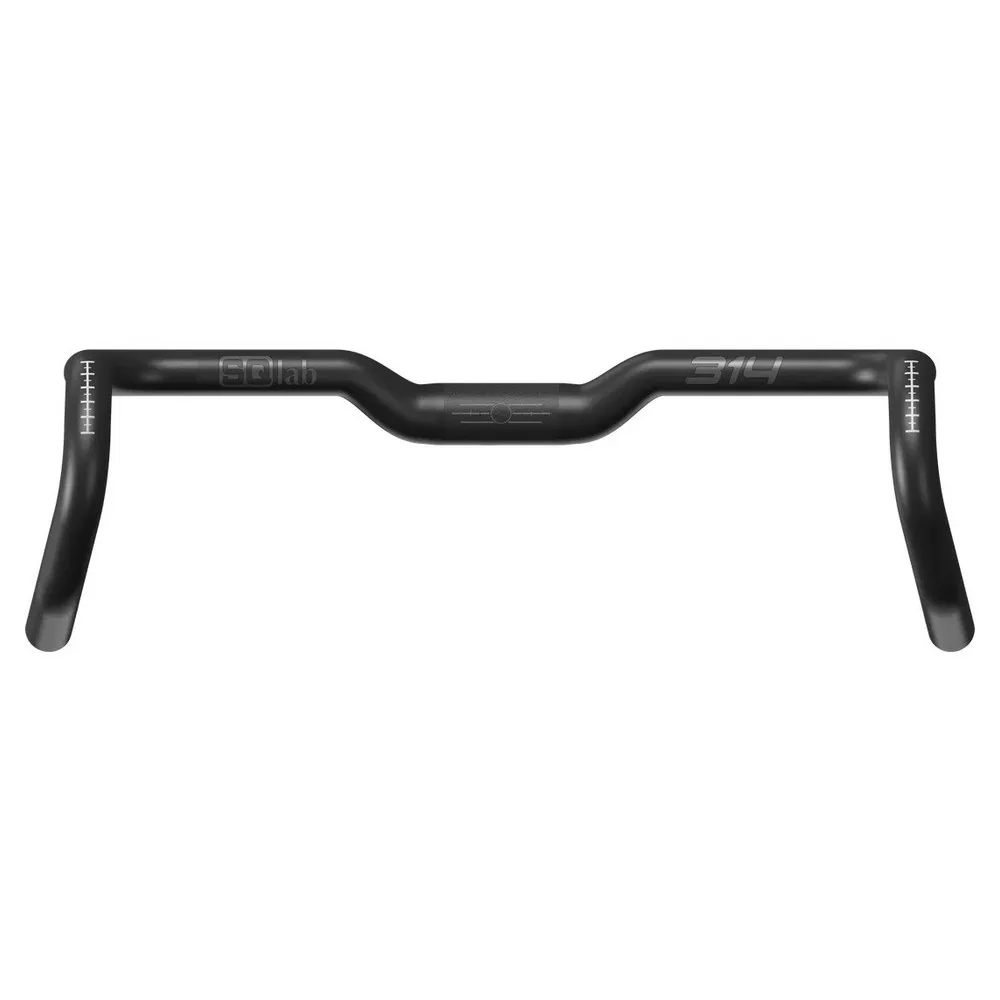

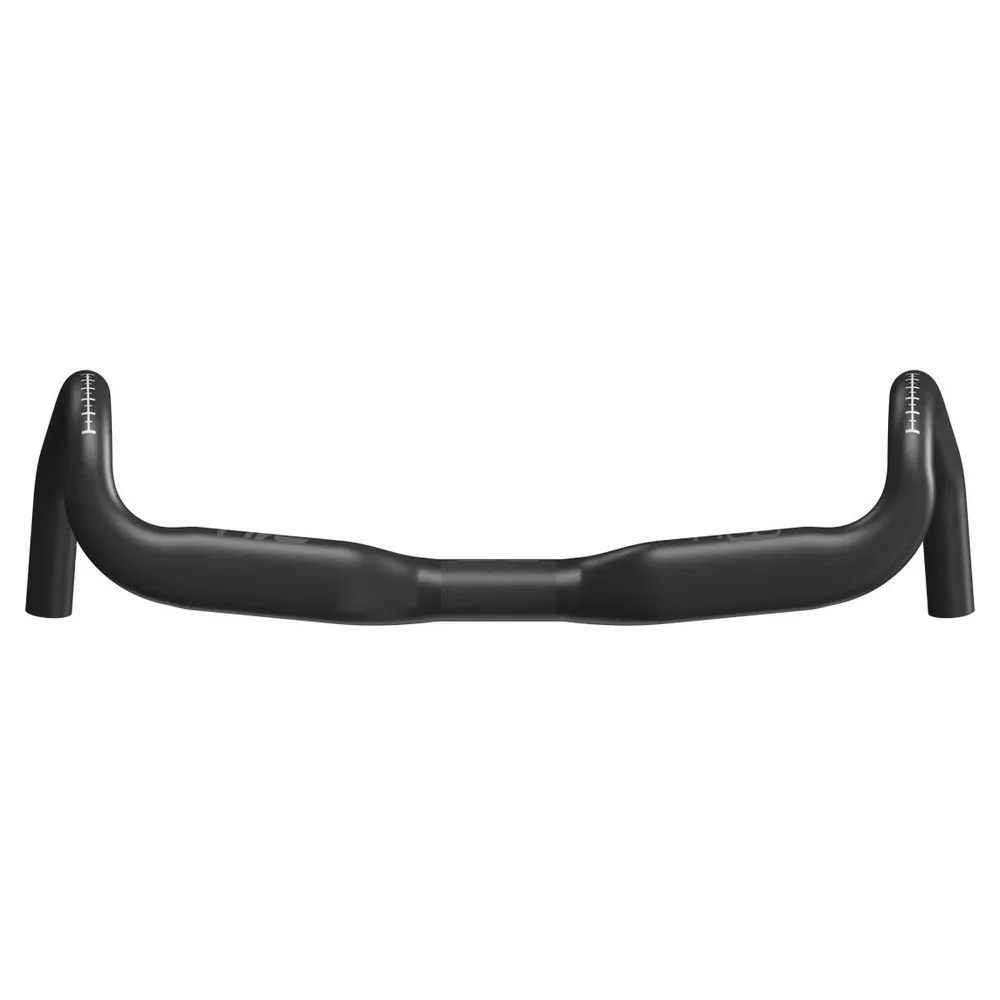

SQlab 314 handlebar

The SQlab 314 brings the proven ergonomics of the SQlab road bike handlebars to the gravel sector. Based on the compact shape of the 312 R, it offers a 25 mm rise for a more upright riding position – ideal for long distances and challenging terrain. The 14° flare improves control in technical sections, while the 10° front sweep, tapering to 2° towards the ends, ensures a natural hand position. The ergonomically flattened underside supports a stable grip position, inspired by the ERGOBAR technology. Key features: 25 mm rise for an upright and comfortable riding position 14° flare for better control on rough terrain with consistent lever position 10–2° front sweep for ergonomic grip angles and relieved wrists Flattened underside for secure grip and large contact area Reach 90 mm, drop 120 mm – compact, controlled handlebar geometry.

The 314 handlebar was developed specifically for the Gravelbike. The gravel handlebar builds on the ergonomic concepts of the front sweep, the angular grip surface and the maximized contact surface of the 314. With a 25 mm rise and 14 ° drop bar flare, the handlebar additionally takes into account the requirements of the ride in the terrain.

Maximum Surface:
- The flattened and forward-swept top section of the handlebar creates a maximum contact area. The result: a secure grip, even pressure distribution – and noticeably more control, comfort, and confidence on long gravel rides or rough terrain. For a ride that stays smooth, even when the ground isn’t.

Ergobar:
- The wave-shaped rise on the front of the handlebar forms a flat, slightly angular surface – perfectly matching the natural bend of your fingers. This detail ensures a more secure grip and better bike control, especially on long rides or technical terrain.

Natural Wrist Position:
- Tingling or numb fingers on long rides? Often, it’s due to overstretched wrists. In a neutral position, our wrists naturally align straight with the forearm – and that’s exactly what the 314 gravel handlebar supports. Unlike MTB bars with backsweep (ideal for wide arm positions), a gravel dropbar needs the opposite: a 10° frontsweep. This angle brings the hands into alignment for narrower, shoulder-width positions – preventing wrist strain and keeping your fingers feeling fresh, even after hours in the saddle.

Specifications:

- Material: Aluminum 6066
- Rise in mm: 25
- Drop in mm: 120
- Reach in mm: 90
- Frontsweep in °: 10 To 2
- Flare in °: 14
- Clamp Diameter in mm: 31.8
- Clamping Width Stem in mm: Min. 40 - Max. 58
- Maximum Torque in nm: 8
- Maximum Allowed Systemweigth In Kg: 120
- E-Bike Ready: Yes
- Din/Astm Categories: 2
