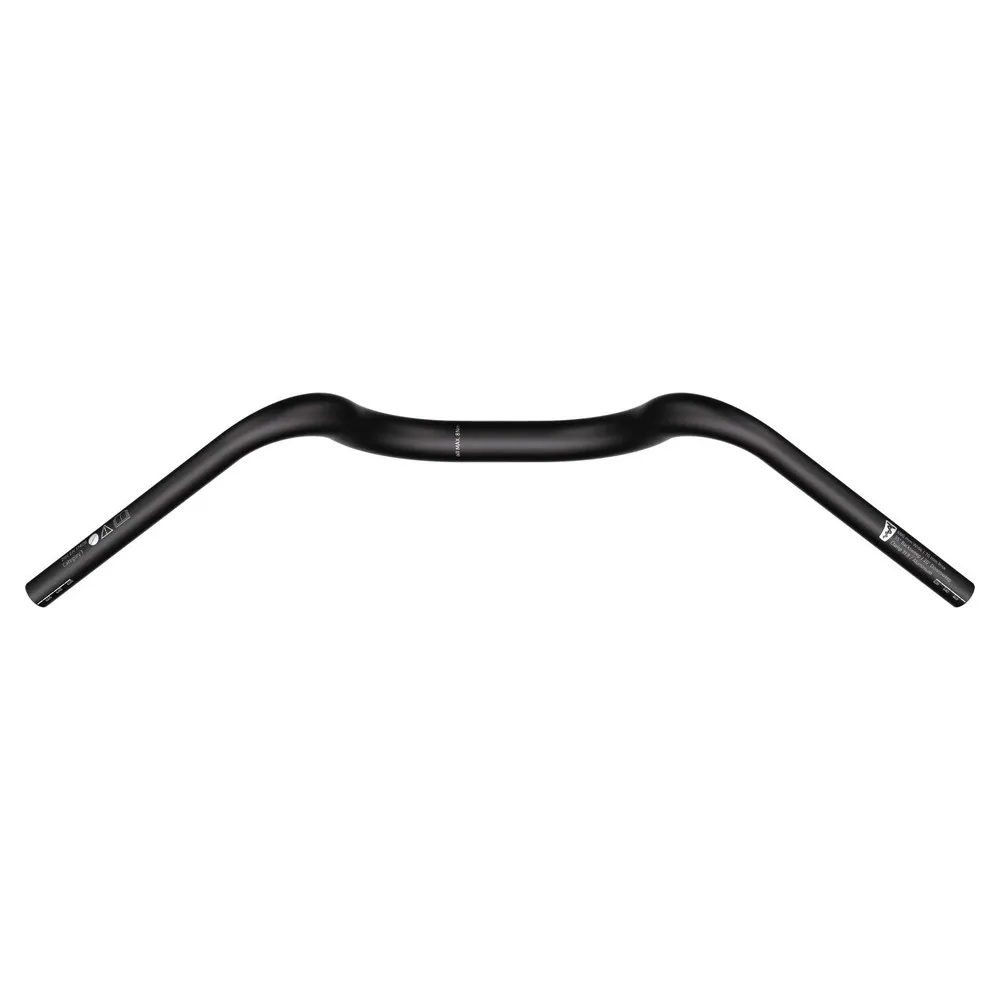

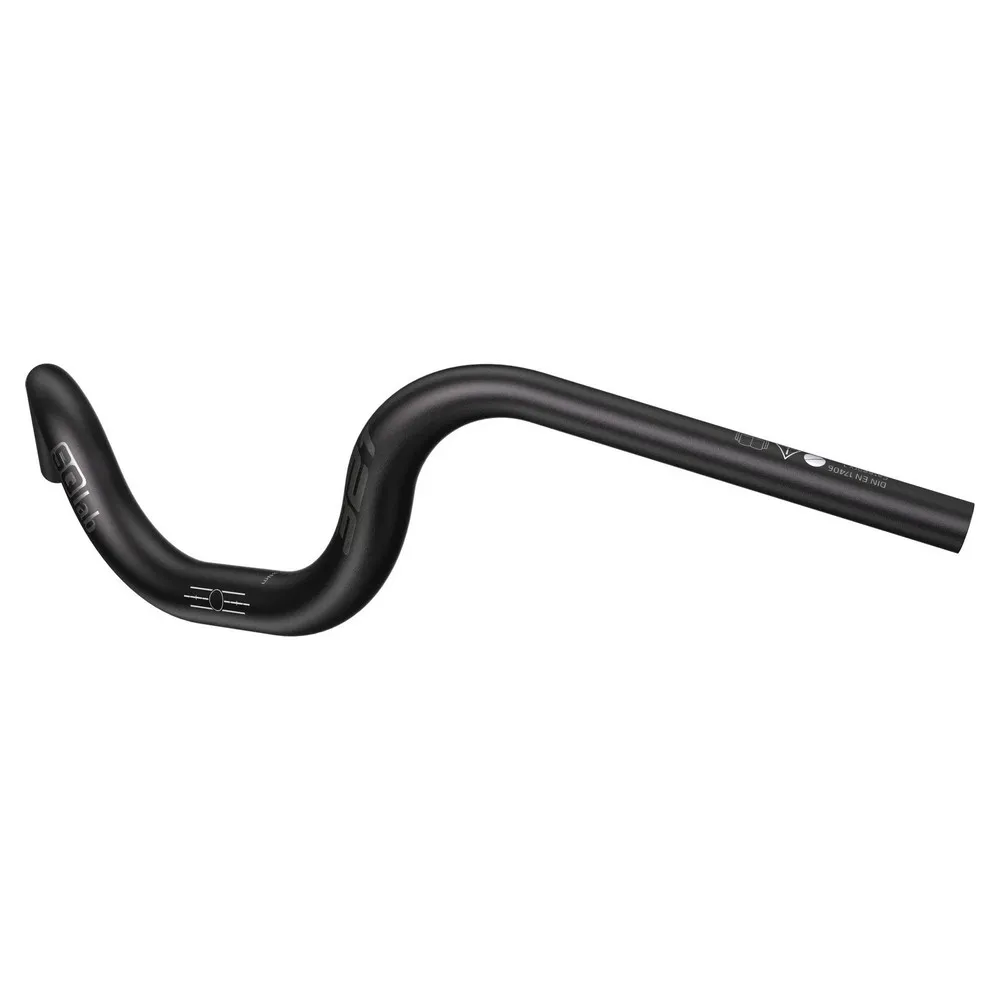

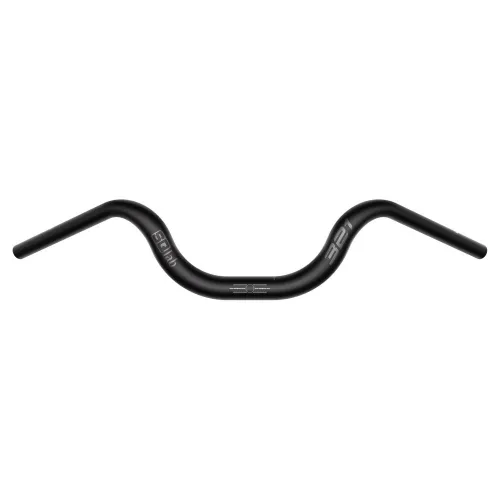

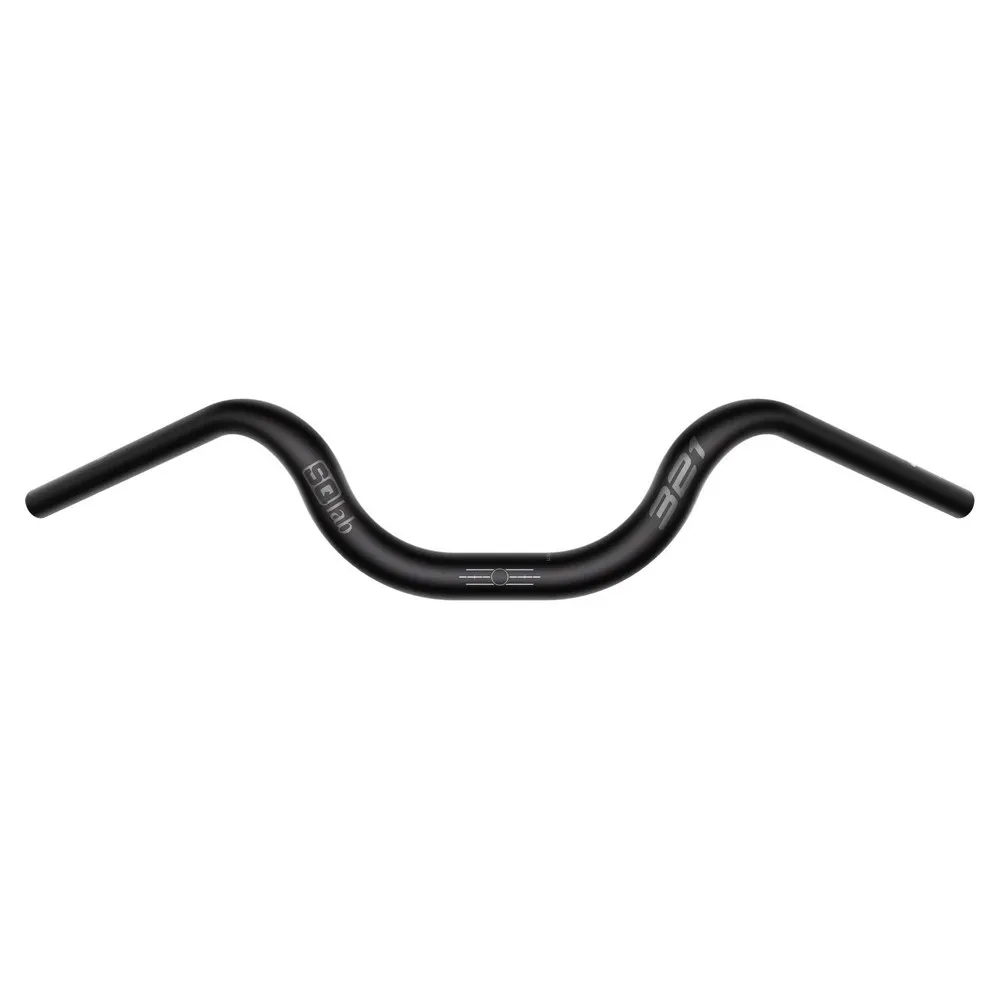

SQlab 321 3.0 70 mm handlebar

The SQlab 321 3.0 was developed for use on comfort-oriented city bikes. With a 35° backsweep and 20° downsweep, it ensures a natural arm position and a relaxed elbow position – ideal for relieving shoulders and neck. The generous rise of 70 mm promotes an upright, ergonomic seating position in city traffic. Its robust construction is designed for a maximum system weight of 180 kg and meets the requirements of DIN/ASTM Category 1.

Key Features:

Ergonomic Backsweep:
- Ensures a straight transition from the forearm to the hand and reduces numbness in the fingers.

Relaxed Downsweep:
- The downsweep allows a natural elbow position that relieves pressure on the neck and shoulder muscles.

Comfort Rise:
- The Rise or the handlebar height allows an individual riding position.

Ergonomics for the City:
- The SQlab 321 3.0 is made for comfort-focused city bikes. A 35° backsweep promotes an ergonomic arm position, while the 20° downsweep relieves pressure on shoulders and neck. The generous 70mm rise supports an upright and back-friendly posture – ideal for everyday city traffic. Backsweep, downsweep, and rise work together to create a relaxed and comfortable riding experience on paved roads and paths.

Specifications:

- Weight in g: Approx. 440
- Material: Aluminum 7050
- Width in mm: 680
- Maximum Cutting Width In mm: 620
- Rise In mm: 70
- Backsweep in °: 35
- Downsweep in °: 20
- Clamp Diameter in mm: 31.8
- Clamping Width Stem In mm: Min. 40 - Max. 58
- Maximum Torque in nm: 8
- Maximum System Weight Allowed In Kg: 180
- E-Bike Ready: Yes
- Din/Astm Categories: 1
