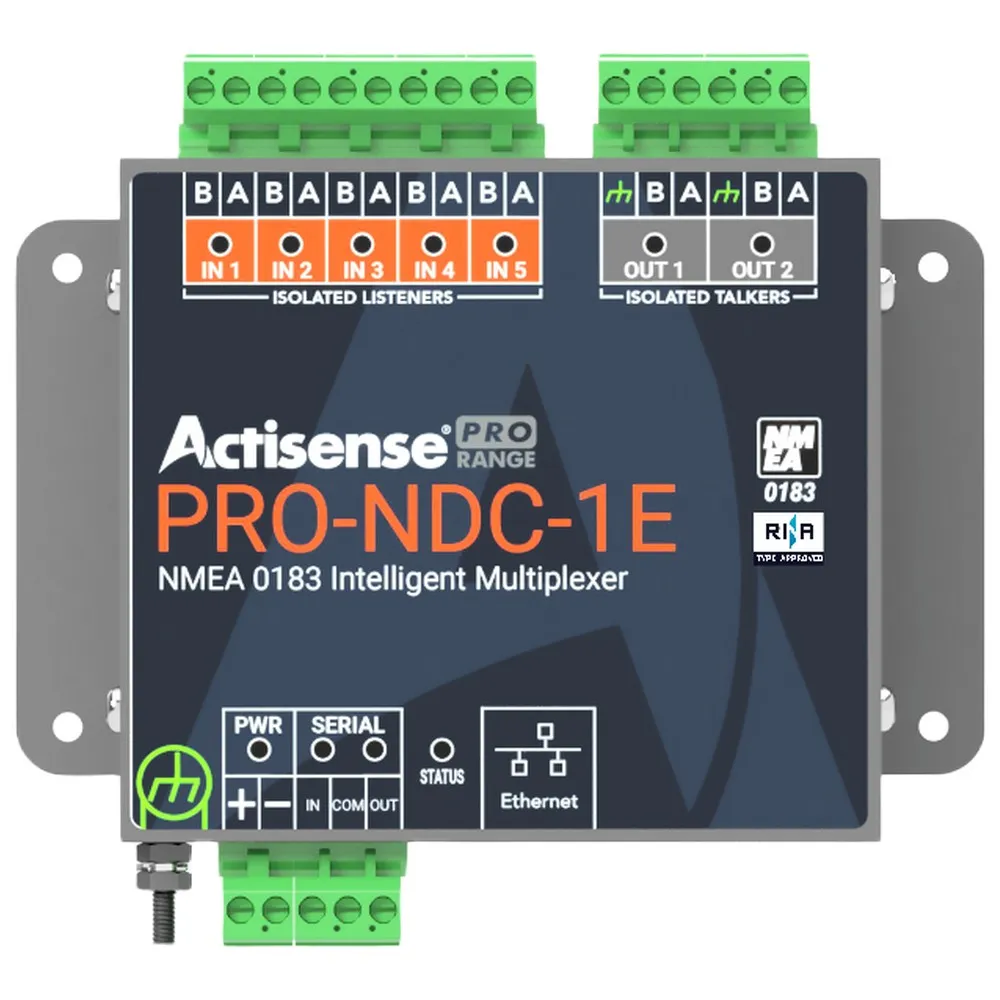

Actisense PRO-NDC-1E2K Multiplexor

ACTISENSE PRO-NDC-1E2K NMEA 0183 Multiplexer and NMEA 2000 Gateway

Elevate your vessel´s electronic network to a professional standard with the Actisense PRO-NDC-1E2K, the ultimate intelligent multiplexer designed for robust and reliable marine data integration. Engineered for demanding environments, this powerful device seamlessly manages the complex flow of information between your various marine instruments, solving the most challenging data routing and connectivity issues. It is the definitive solution for system integrators, installers, and vessel owners who require uncompromising performance and future-proof flexibility for their NMEA 0183 and NMEA 2000 networks.

The PRO-NDC-1E2K is built to safeguard your valuable marine electronics. By providing superior electrical isolation on all inputs and outputs, it protects connected devices from ground loops and electrical surges, ensuring system-wide stability and longevity. This significantly reduces wiring complexity and installation time, consolidating multiple data streams into a single, manageable hub. Its advanced configuration capabilities allow you to create a highly customized data network, ensuring that the right information gets to the right instrument at the right time, enhancing situational awareness and operational efficiency on the water. The intuitive, browser-based configuration tool means you can set up and diagnose the entire system from any connected laptop, tablet, or smartphone without needing any proprietary software.

Key Features:

* Combines and routes data from multiple NMEA 0183 sources with exceptional flexibility.
* Acts as a powerful bi-directional gateway, seamlessly converting data between NMEA 0183 and NMEA 2000 networks.
* Enables advanced data filtering and sentence-level routing to create a truly customized network.
* Distributes NMEA data over an Ethernet connection for use with a wide range of onboard PCs, chartplotters, and mobile applications.
* Features a built-in web server for effortless configuration and diagnostics via any standard web browser.
* Equipped with diagnostic LEDs for at-a-glance status indication of power, data, and network activity.
* Designed with convenient pluggable connectors to facilitate quick and secure installations or maintenance.

Connectors:

* 8 x NMEA 0183 / RS422 Opto-isolated inputs
* 6 x NMEA 0183 / RS422 ISO-Drive isolated outputs
* 1 x NMEA 2000 M12 (Micro-C) port
* 1 x Standard Ethernet (RJ45) port
* 1 x RS232 Bi-directional serial port
* 2-pin pluggable power connector

Technical Specifications:

* Power Supply: 9 to 35 Volts DC
* Input/Output Isolation: 1500V between input and ground; 1500V between output and ground
* NMEA 2000 Port Isolation: 2500V between NMEA 2000 and Battery Supply
* NMEA 0183 Port Speed: Configurable from 4800 to 115200 baud
* Ingress Protection: IP66 (when all connectors are correctly installed)
* Certifications: CE, UKCA, RoHS2 Compliant
