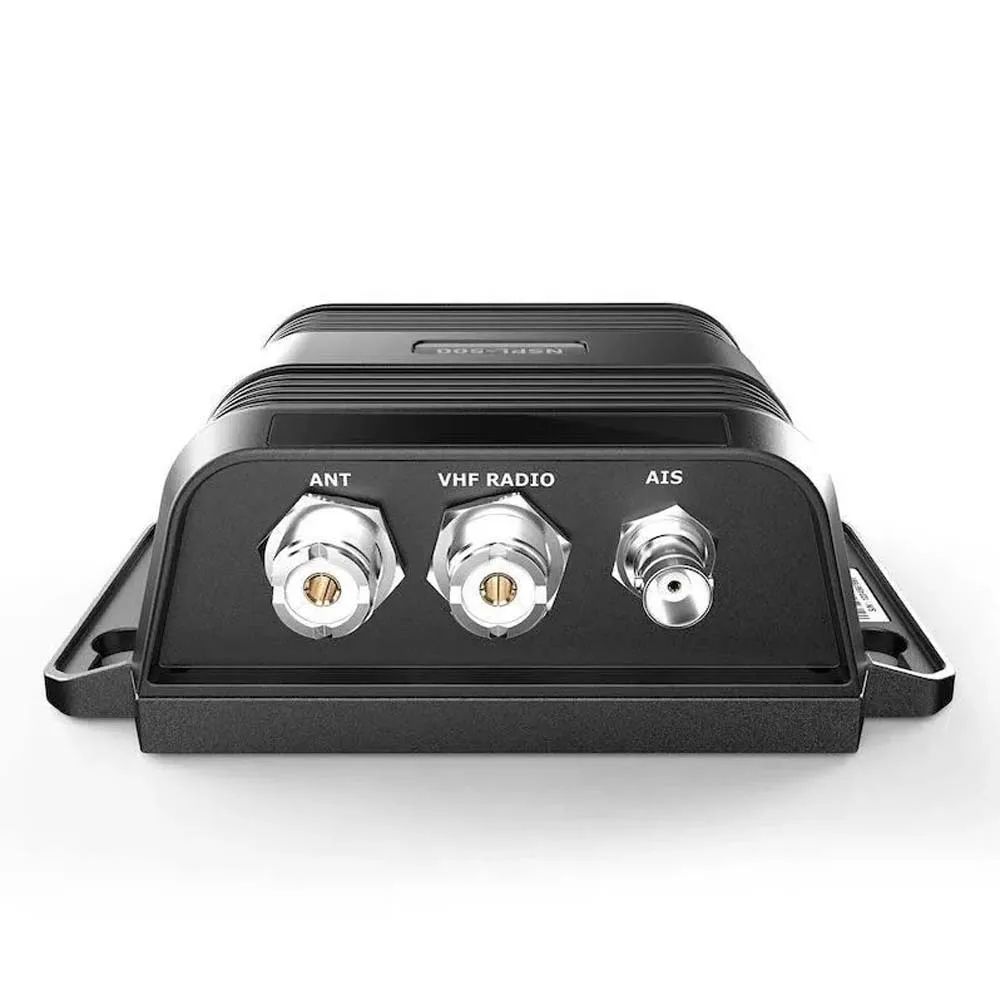

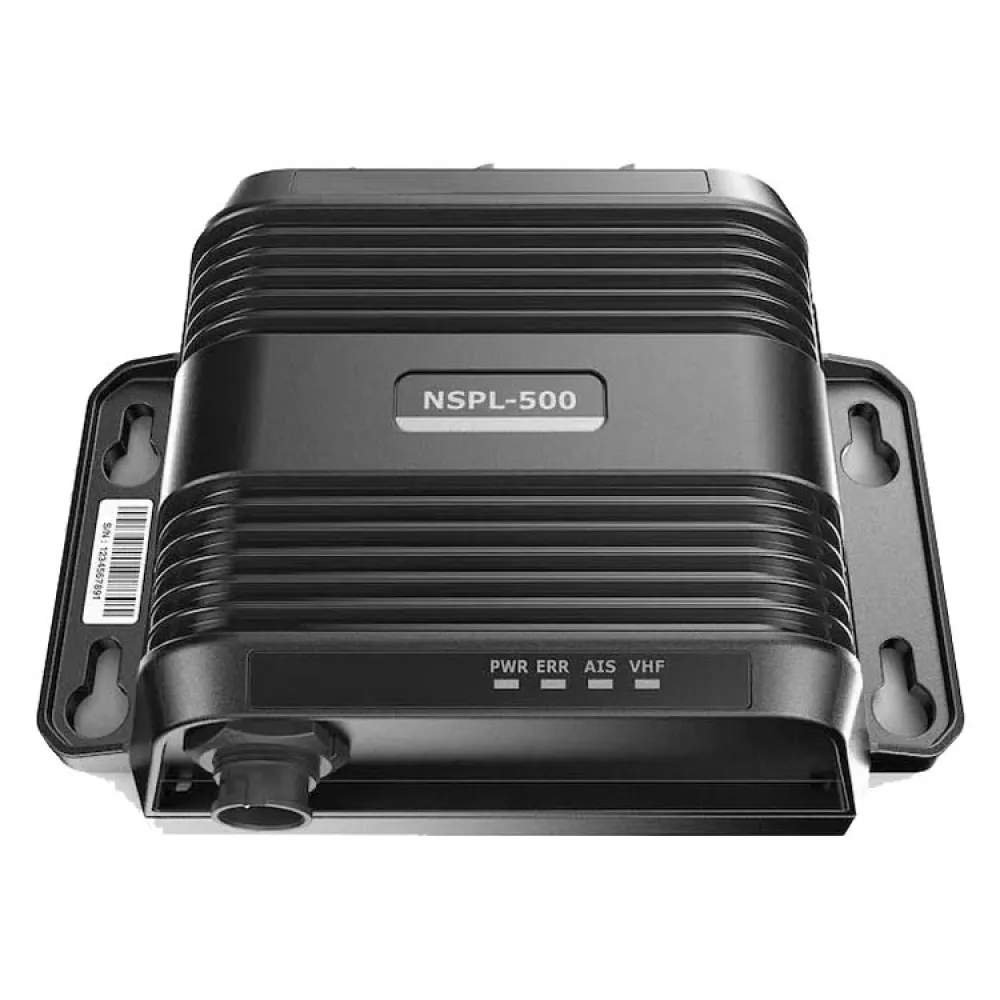

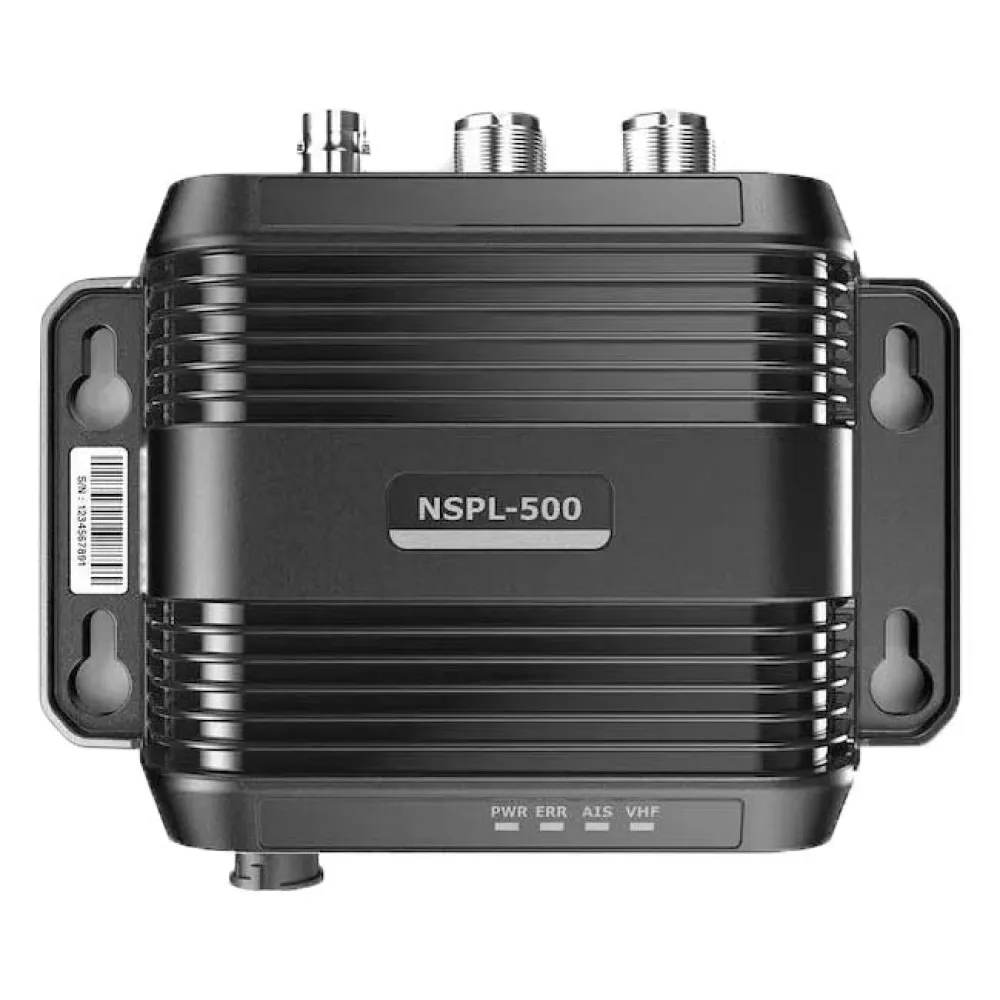

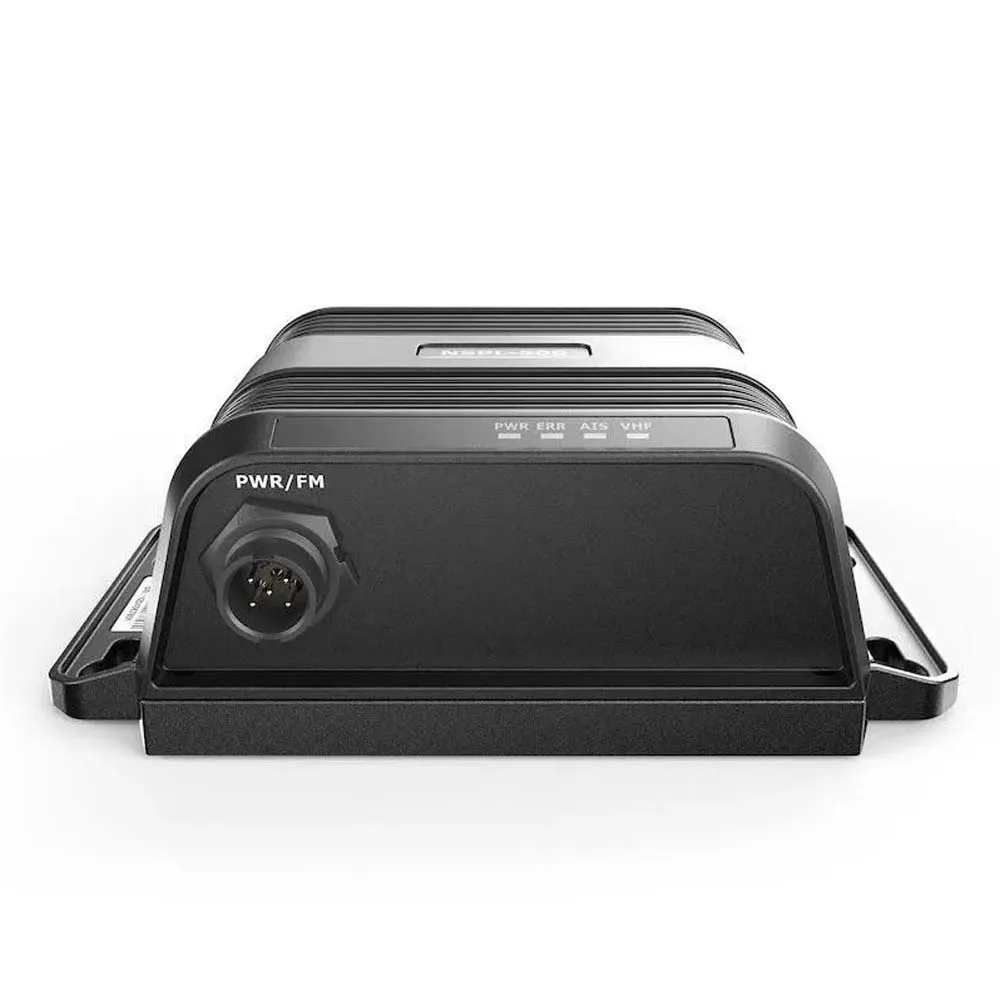

B&G NSPL500 antenna module

B&G NSPL 500 Antenna Splitter Module

Category: Electronics
Subcategory: Antennas

Streamline your vessel´s communication and navigation systems with the high-performance B&G NSPL 500 Antenna Module. This essential piece of marine electronics is engineered to maximize the efficiency and safety of your onboard setup by eliminating the need for multiple antennas. By intelligently managing signals, the NSPL 500 ensures that your core communication and safety equipment operates with uncompromised clarity and reliability. It is the definitive solution for sailors and boaters who demand superior performance without adding unnecessary clutter or complexity to their vessel.

Save the hassle of installing a costly second antenna and use your existing single antenna with VHF/AIS/FM, by enlisting the lightweight, compact NSPL 500 antenna splitter.

When combined with the NAIS 500 AIS system, you can see and be seen on the water, whether tackling busy shipping lanes or crowded ports.

The B&G NSPL 500 stands out for its exceptional signal integrity. It is meticulously designed to operate with no insertion loss on AIS and VHF receive channels, meaning your incoming communications and AIS target data will be as strong and clear as a direct antenna connection. For transmission, the splitter boasts an impressively low insertion loss, ensuring your VHF calls and AIS position broadcasts are transmitted with maximum power and range. This focus on performance guarantees that you can communicate effectively and maintain full situational awareness in all conditions. Built for the rigorous marine environment, the unit is completely waterproof and housed in a robust, compact form factor, allowing for flexible installation in even the tightest spaces. Its low power consumption is a critical benefit, conserving precious battery power for extended voyages.

Product Attributes:

* Type: Antenna Splitter Modules

Main Features:

* Plug and play
* Lightweight unit
* Waterproof
* Low power consumption
* Wide voltage range
* No insertion loss on AIS and VHF receive
* Low insertion loss on AIS and VHF transmit

Technical Specifications:

* Power Consumption: Typically less than 150mA at 12V DC
* Operating Voltage: 9.6V - 31.2V DC
* VHF Impedance: 50 Ohms
* Waterproof Rating: IPX7
* Dimensions (L x W x H): 150mm x 98mm x 46mm (5.9" x 3.9" x 1.8")
* Weight: 260g (9.2 oz)
* Operating Temperature Range: -25°C to +55°C
* VHF Port Insertion Loss (Receive): 0dB
* AIS Port Insertion Loss (Receive): 0dB
* VHF Port Insertion Loss (Transmit): <1dB
* AIS Port Insertion Loss (Transmit): <1dB
