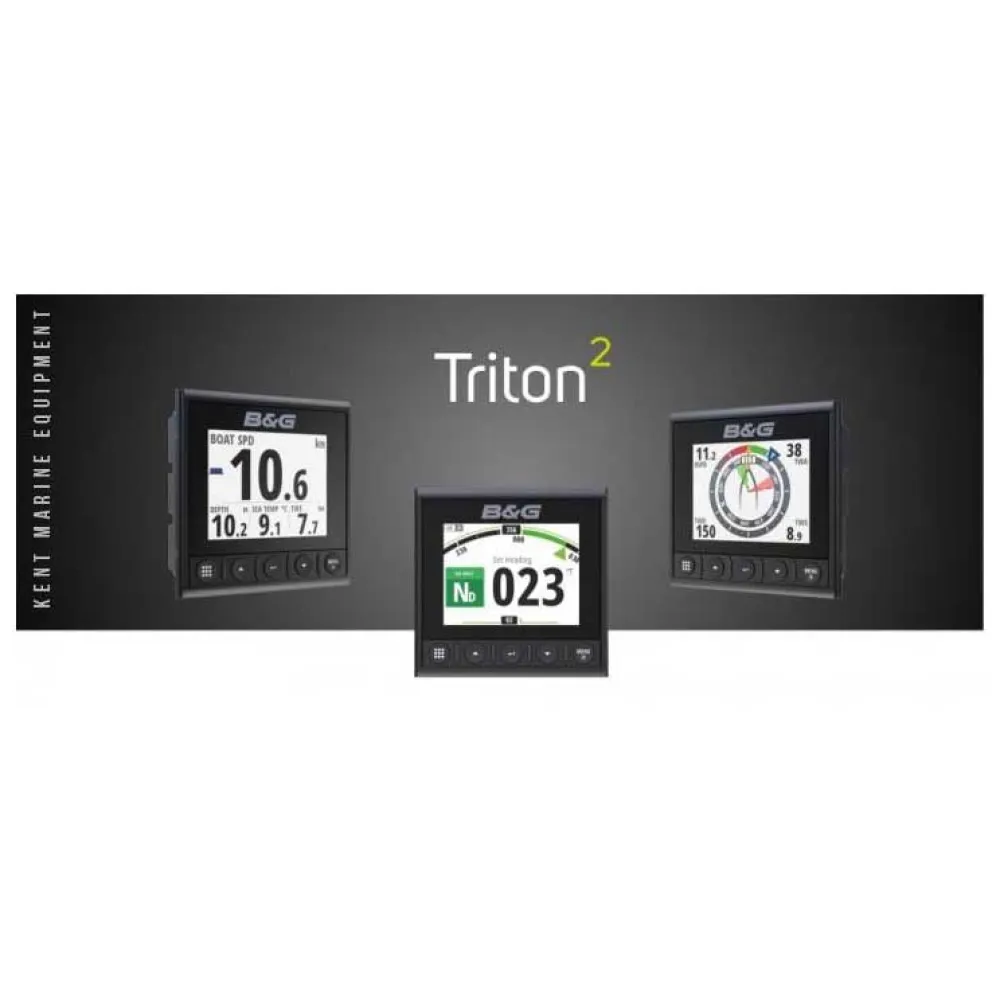

B&G Triton² Digital Instrument Display: Unrivaled Clarity for Sailors

Elevate your sailing experience with the B&G Triton² Digital Instrument Display, the ultimate multi-purpose instrument for cruising and club racing sailors. Designed to deliver critical sailing data with exceptional clarity, the Triton² provides the information you need to make smarter decisions and sail with greater confidence, whatever the conditions. See your key data at a glance on a vibrant, optically bonded screen that eliminates condensation and provides outstanding contrast and visibility, day or night.

The Triton² is more than just a display; it´s the intelligent nerve centre of your vessel´s instrument system. Its sleek, low-profile design is not only stylish but also incredibly efficient, consuming minimal power while delivering maximum performance. Whether you need to monitor wind speed and direction, boat speed, depth, or heading, the Triton² presents it all on a single, intuitive interface.

Key Benefits:

* Superior Visual Clarity: The optically bonded 4.1-inch colour screen prevents fogging and utilises transflective LCD technology to ensure crystal-clear readability in bright sunlight. With a massive 170° viewing angle, you can see your data from anywhere in the cockpit.
* Versatile and Customizable Data: Display the information that matters most to you. The Triton² can show a wide range of data including Wind, Speed, Depth, Heading, GPS data, and more. Configure single, dual, or four-way data layouts to suit your preference.
* Seamless System Integration: Connect the Triton² to your NMEA 2000® network with a single cable for both power and data. It integrates flawlessly with B&G chartplotters, sensors, and autopilots, allowing you to take full control of your B&G autopilot directly from the instrument display.
* Dedicated AIS Functionality: Enhance your situational awareness with a dedicated AIS repeater screen. Clearly view nearby AIS-equipped vessels, monitor their course and speed, and receive crucial collision avoidance alarms.

Main Features:

* Full-Colour 4.1-inch Screen with a bright, clear display.
* Optically Bonded LCD to completely prevent condensation or fogging.
* Transflective LCD Technology for superior contrast and readability in all lighting conditions.
* Intuitive, straightforward menu system operated by simple waterproof buttons.
* Customisable data displays with single, dual, and 4-way layouts.
* Dedicated AIS Repeater screen for enhanced situational awareness.
* Full B&G Autopilot control and status display.
* Low-profile design (8mm) for a sleek, modern helm.
* Certified NMEA 2000® connectivity for simple and reliable installation.
* Extremely low power consumption for minimal impact on your battery.

Screens

The B&G Triton² offers a highly flexible system of customisable screens to match your sailing needs. Configure graphical screens that show wind direction and speed with intuitive analogue-style dials and historical data graphs. Set up digital screens with large, easy-to-read numbers for critical data like depth, boat speed, and SOG. For enhanced safety, dedicate one of the screens to be a full-time AIS plotter, providing a graphical representation of nearby vessels. You can also access dedicated screens for autopilot control, allowing you to engage, change mode, and make course adjustments with ease.

Technical Specifications

* Display Size: 4.1 inches (diagonal)
* Resolution: 320x240 pixels
* Display Technology: Transflective TFT LCD, Optically Bonded
* Illumination: White for day mode, Red, Green, Blue or White for night mode
* Viewing Angle: 170° (left/right, up/down)
* Waterproofing Standard: IPX7
* Connectivity: 1 x NMEA 2000® Micro-C port
* Power Consumption (Typical): 1.0 W
* Power Consumption (Max): 1.8 W
* Supply Voltage: 12V DC (via NMEA 2000)
* Dimensions (W x H x D): 118x115 x 28 mm (4.6x4.5x1.1 inches)
