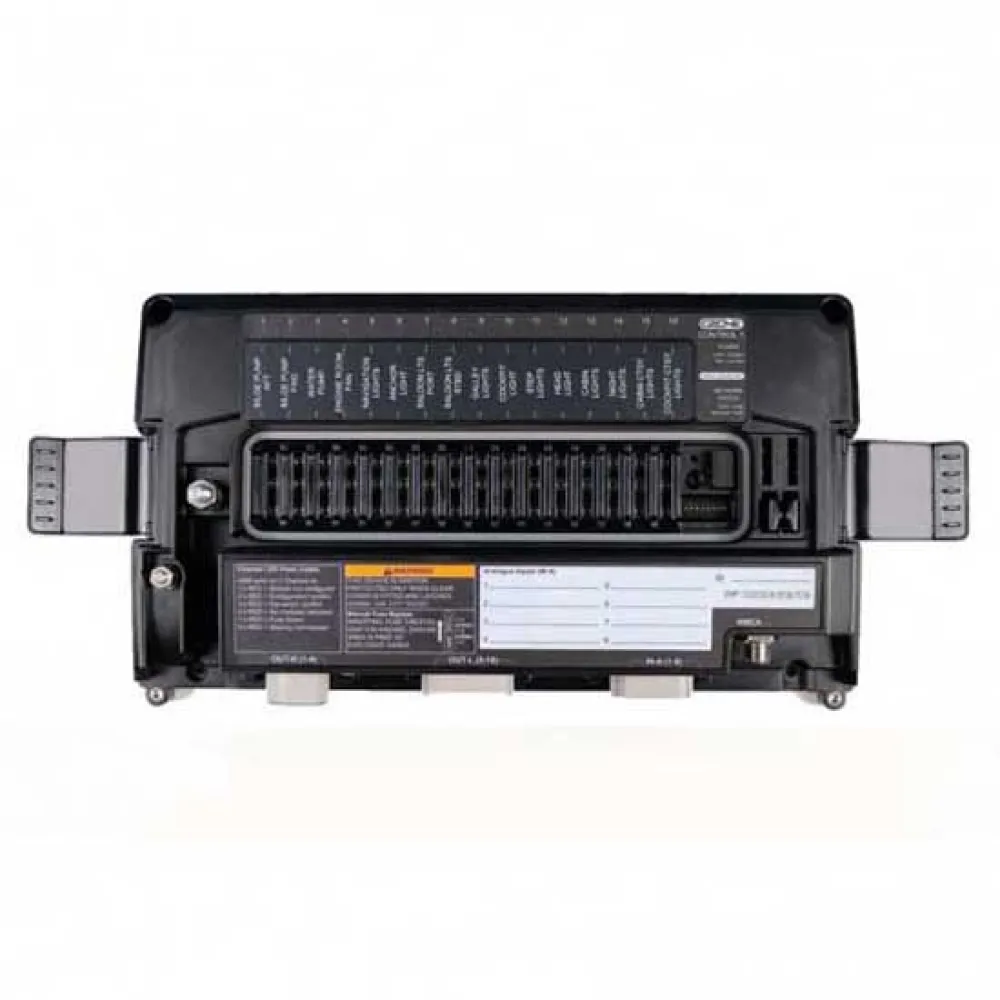

Bep Marine CZone Control 1 Digital Switching Module

Automatic translation Original description available here

ATTENTION:

The connectors (ref.

80-911-0131-00) are not included and must be purchased separately.

See related products for this reference.

The Control 1 interface combines several input and output devices in a single module.

This minimizes time and effort during installation by reducing the connections between multiple modules and the space required.

The Control 1 interface incorporates many of the main features and benefits of the Output Combination Interface (ISC), but has been redesigned to offer superior cost-per-channel value.

The Control 1 interface features the same robust design as the fully featured ISC, with IPX5 protection against ingress of water, full mechanical fuse protection and bypass on all circuits.

Its industry standard Deutsch connectors offer a ´´plug and play´´ installation.

The Control 1 interface is integrated into CZone´s portfolio of leading digital control and monitoring products.

The Control 1 interface only offers the essential features needed for small systems, making it more affordable and ensuring that the benefits of CZone are available to a wider range of applications than ever before.

Characteristics.

Complete CZone control and monitoring system in a single unit.

The modular design provides system options for a wide variety of boats and motorhomes.

Compatible with all-purpose and black box marine chartplotters and fishfinders.

Packed with CZone´s advanced essential feature set.

Competitive price for cost-constrained applications.

ABYC compliant ATC fuses and mechanical bypass to ensure redundancy.

PWM light dimming and soft start capability.

Monitoring of tank levels, battery voltage, temperature and pressure using conventional industry sensors.

Bilge pump operation detection allows the pump to be controlled and monitored from a single cable.

Status LEDs for all outputs, DC power, and NMEA 2000.

Additional voltage monitoring on the main DC connection and NMEA 2000.

The built-in load shedding function allows you to turn off unnecessary loads to preserve battery life.

The USB port allows for full system firmware and configuration updates (no PC or adapters required).

Applications.

With the rapid adoption of digital switching systems in the smaller boat and RV market, CZone is committed to developing a portfolio that includes affordable digital monitoring and control solutions.

By being more affordable, the Control 1 interface ensures that more OEMs can offer the benefits of digital control and monitoring to their customers, thereby providing more value, functionality and differentiation.




Buy now your Bep marine CZone Control 1 Digital Switching Module for only 0 $. Made by Bep marine, Bep marine CZone Control 1 Digital Switching Module is available in a range of sizes and colours, and comes complete with everything you´ll need. At waveinn, we offer the best price of your favourite nautical and fishing products. View our full range of Accessories within our Electronics department.
