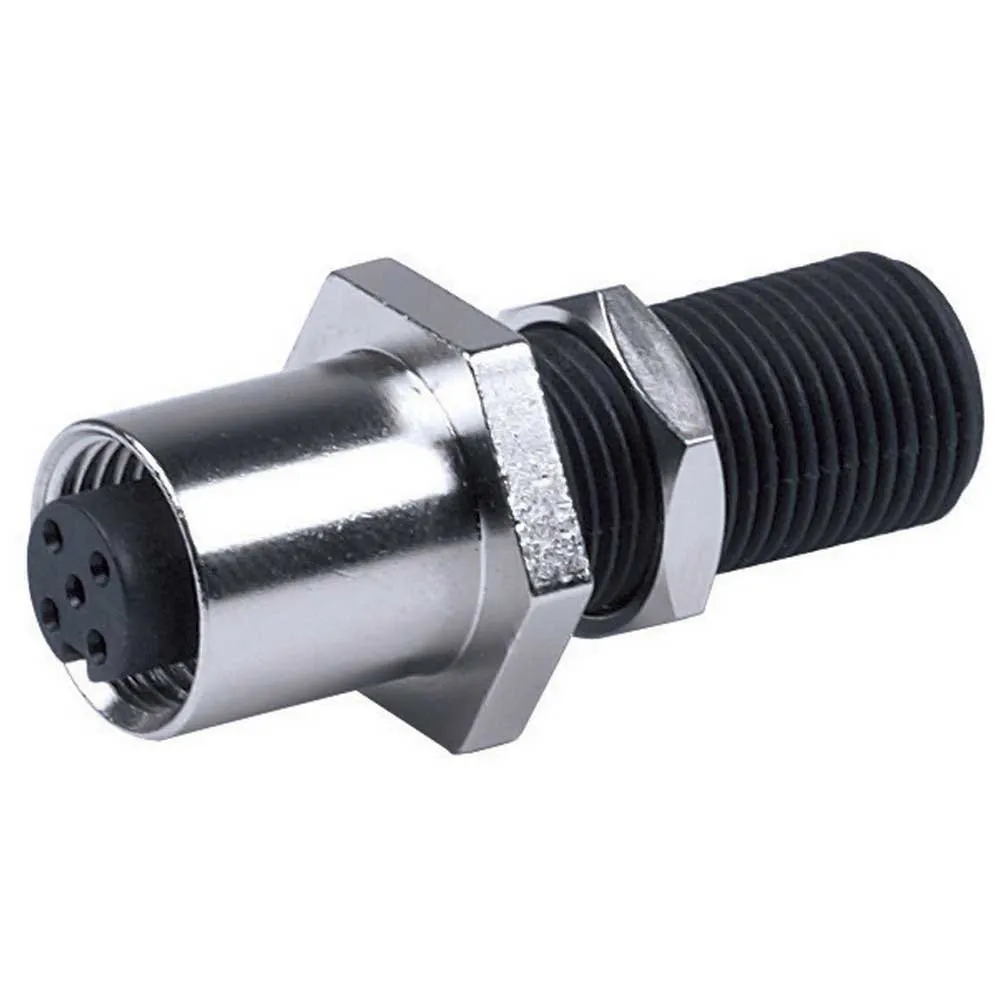

Bep Marine NMEA 2000 Network Through Bulkhead Adapter

BEP Marine NMEA 2000 Network Through Bulkhead Adapter | Waterproof Backbone Connector

Achieve a professional, secure, and watertight installation for your marine electronics with the BEP Marine NMEA 2000 Network Through Bulkhead Adapter. Designed for the rigorous demands of the marine environment, this essential component allows you to seamlessly extend your NMEA 2000 backbone through panels, consoles, and waterproof bulkheads without compromising the integrity of your vessel or your network´s data. Eliminate the need for large, unsightly holes and messy silicone, and opt for a clean, factory-finish solution that protects your critical connections from moisture, spray, and the elements.

This high-quality adapter is the definitive solution for organizing complex cable runs and creating reliable connection points on your boat. By providing a solid, fixed-point transition, it prevents cable strain and ensures a stable, uninterrupted flow of data between all your NMEA 2000 certified devices, from chartplotters and fishfinders to engine monitoring systems and autopilot controls. Its robust construction and intelligent design guarantee long-lasting performance, giving you peace of mind that your network is both protected and performing at its peak. Whether you are building a new network from scratch or upgrading an existing system, this adapter is a must-have for a reliable and professional setup.

For Use On The Backbone To Transition Through A Waterproof Bulkhead Or Can Be Used To Connect Removable Equipment Such As A Computer Interface. This dual-purpose functionality makes it incredibly versatile. Use it to pass your network backbone cleanly from a protected cabin to an open cockpit, or install it on a dash panel to create a convenient plug-and-play port for laptops used for system diagnostics, software updates, or for connecting temporary NMEA 2000 compatible displays.

Main Features:
- NMEA 2000 Network Certified
- Through-Bulkhead Design for Clean Installations
- Creates a Secure, Watertight Seal
- Male and Female NMEA 2000 Micro-C Connectors
- Durable, Marine-Grade Construction for Harsh Environments
- Prevents Cable Chafe and Signal Degradation
- Compact Footprint for Installation in Tight Spaces
- Includes Mounting Nut and O-Ring for a Complete Seal

Technical Specifications:

Attribute: Adapters
Product: BEP MARINE NMEA 2000 Network Through Bulkhead Adapter
Category: Electronics
Subcategory: Electrical connections
Connector Type: NMEA 2000 Micro-C 5-Pin (1x Male, 1x Female)
Mounting Style: Through-Bulkhead with threaded body and lock nut
Sealing: IP67 Rated Waterproof
Housing Material: High-impact, UV-stabilized engineered polymer
Connector Material: Nickel-plated brass for superior corrosion resistance and conductivity
Operating Voltage: 12V DC
Max Current: 4 Amps
Compatibility: Fully compatible with all NMEA 2000 compliant networks and devices from brands such as Garmin, Raymarine, Simrad, Lowrance, Furuno, and more
