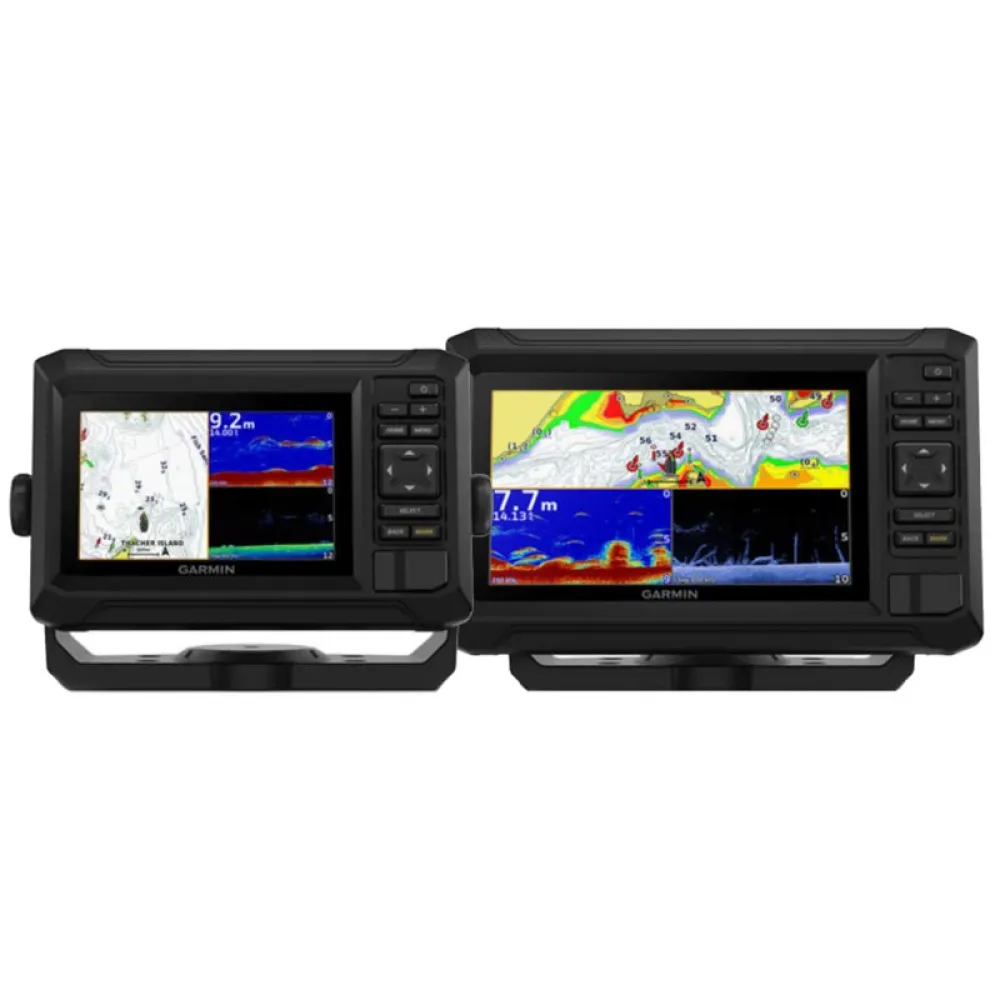

Garmin Echomap UHD2 72CV plotter with transducer&cartography

They say locals know best. But anyone who says that hasn’t fished with the ECHOMAP UHD2 5”and 7” chart plotters with clear, crisp sonar and mapping.

- The bright 5” or 7” keyed display is made for convenience.
- Get double the views1 with Garmin CHIRP traditional and ClearVü scanning sonars.
- Under the water looks even better with high-contrast vivid color palettes.
- Wi-Fi® connectivity2 between compatible chartplotters makes it easy to share info.
- Enjoy No. 1 in mapping with our LakeVu g3 and Blue Chart® maps with Navionics® data.


Features:

Sonar Support:
- With crisp, clear traditional sonar and brilliant ClearVü sonar, the fish will have nowhere to hide.

Vivid Color Palettes:
- High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.

Bundle Your Transducer:
- Your ECHOMAP UHD2 device supports a variety of Garmin transducers for two types of sonar: Garmin traditional and ClearVü scanning sonars.

Preloaded Charts:
- Know the waters you´re in as if you grew up fishing them by using built-in Garmin Navionics+ coastal or inland mapping which includes a 1-year subscription for downloadable daily updates and more.

Wireless Networking:
- If you have another compatible ECHOMAP UHD2 chartplotter on your boat, the 5” and 7” models can wirelessly share information such as sonar, waypoints and routes — with them.

Activecaptain® Appl:
- Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, software updates, Garmin Quickdraw™ Community data and more.


Specifications:

General:
- Dimension: 9.1´´ X 5.6´´ X 2.6´´ (23.2 X 14.3 X 6.7 Cm)
- Input: Keyed
- Display Size: 6.1´´ X 3.4´´ (15.5 X 8.7 Cm)
- Display Resolution: 800 X 480 Pixels
- display Type: Wvga, Tn
- Weight: 1.5 Lbs (0.7 Kg)
- Waterproof: Ipx7
- Mounting Options: Bail Or Flush

Maps & Memory:
- Accepts Data Cards: 1 Microsd™ Card; 32 Gb Maximum Size
- Waypoints: 5,000
- Track Points: 50,000
- Tracks: 50 Saved Tracks
- Navigation Routes: 100

Sensors:
- Has Built-in Receiver:
- Receiver: 5 Hz
- Gps: Yes
- Galilee: Yes
- Supports Waas: Yes

Built-in Maps:
- Built-in Auto Guidance+: yes
- Garmin Navionics+ Inland & Coastal: yes
- Garmin Navionics+ (coastal): yes
- Garmin Navionics+ (inland): yes
- Tide Tables: yes

Optional Map Support
- Garmin Navionics+™: Yes
- Garmin Navionics Vision+™: Yes
- Mole: Yes
- Standard Mapping: Yes
- Garmin Quickdraw Contours: Yes

Chartplotter Features:
- Activecaptain® Compatible: Yes

Sonar Features & Specifications:
- Displays Sonar: Yes
- Power Output- 500 W
- Traditional Sonar (dual Frequency/beam)- Built-in (single Channel Chirp, 50/77/83/200 Khz, L, M, H Chirp)
- Built-in 260/455/800/1000/1200 Khz

Connections:
- 4-pin Transducer Ports: 1
- Garmin Wi-fi Network (local Connection): Yes

Electrical Features:
- Power Input: 9 To 18 Vdc
- Typical Current Draw At 12 Vdc: 1.0 A
- Maximum Current Draw At 12 Vdc: 1.5 A
- Maximum Power Usage At 10 Vdc: 18w

Additional:
- Garmin Navionics+ (inland and coastal): 75cv Canada, 75cv Australia/New Zealand
- Garmin Navionics+ (coastal): 74cv U.S., 75cv U.K./Ireland
- Garmin Navionics+ (inland): 73cv U.S. lakes
- Tide tables: 53cv, 54cv, 55cv, 73cv, 74cv, 75cv

In the box:
- With Transducer
- ECHOMAP UHD2 (device varies depending on selection)
- GT20-TM transducer
- Power/data cable
- Tilt mount
- Flush mount
- Hardware
- Documentation
