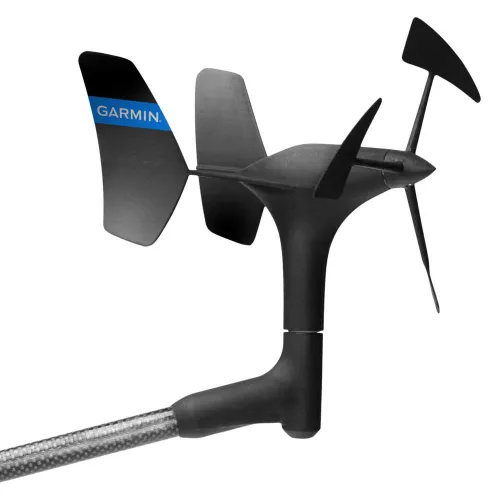

Garmin GWind™ Transducer

Three-blade propeller for more accurate true wind speed (TWS) in light winds
Double fin design provides a more stable True Wind Angle (TWA)
Optical scanning technique with superior performance in light winds and excellent linearity

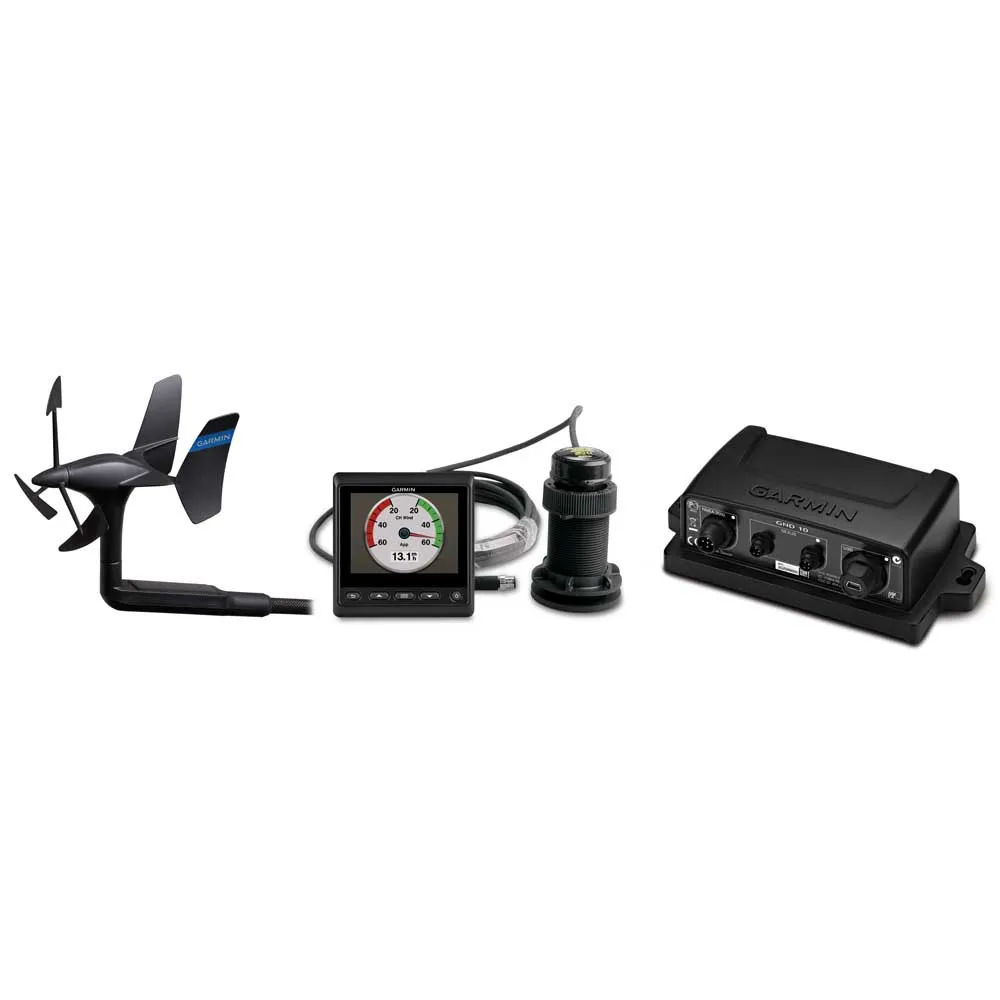

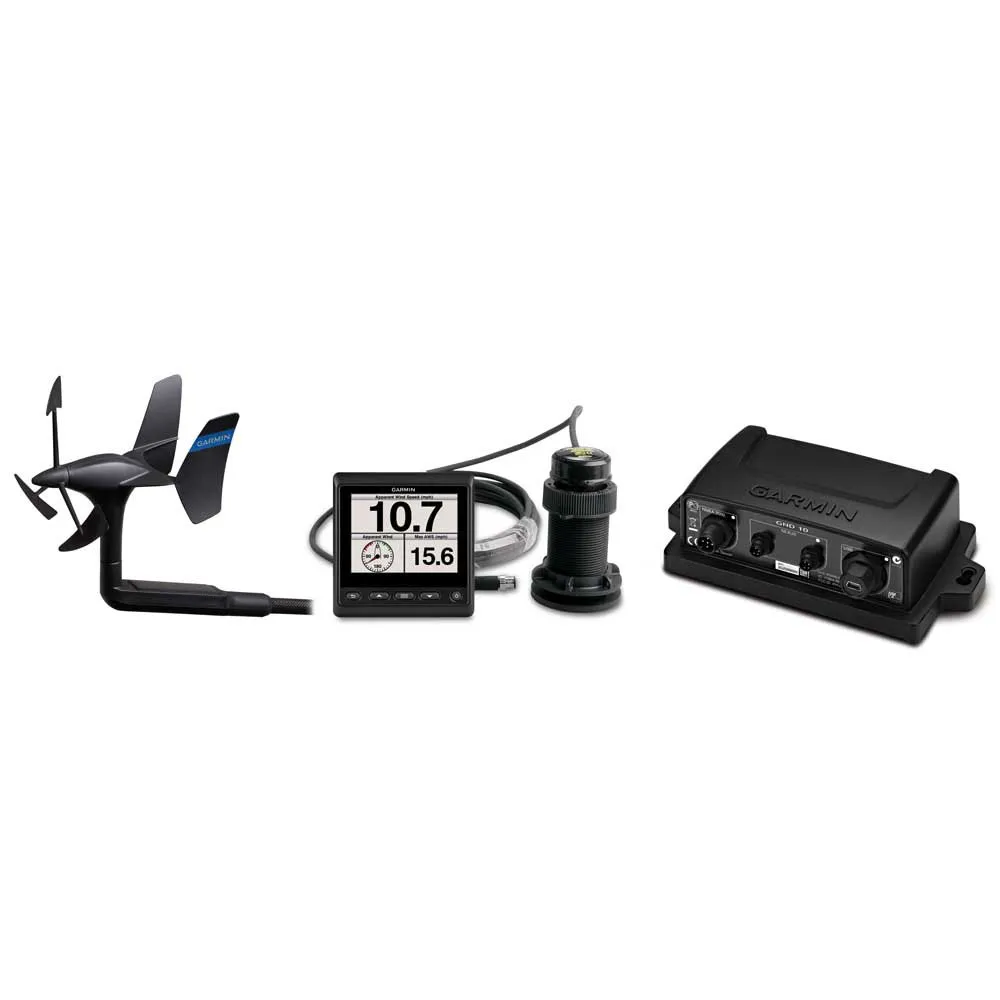

The GND ™ 10 black box converts data from the NMEA 2000® network to the Nexus network and allows compatible Garmin chartplotters to be integrated into Nexus navigation equipment and vice versa
Simple plug-and-play installation between Nexus, Garmin chartplotters, NMEA 2000 and USB.
The gWind transducer incorporates triple-blade propeller dual-fin technology for more accurate true wind speed in light winds, while its dual-fin design provides a more stable true wind angle. The three-bladed propeller, unlike the cup-shaped design, is always effective. Along with optical reading, this transducer provides superior accuracy in light winds and excellent linearity.

Unit dimensions, width x height: 610mm x 345mm (17.7 x 11.8)
Weight: 260g
Cable length: 25 m
Waterproof: yes (IPX6)
Temperature range: -15 ° C to 70 ° C (5 ° F to 158 ° F)
Voltage range: 9 to 16 V
Power consumption: 0.33 W
Compass Safe Distance: N / A
Precision angle: greater than ± 1.5 °
Speed: better by ± 3%
NMEA 2000® Load Equivalence Number (LEN): N / A
Wireless connectivity: no

in the box:
- gWind transducer
- GND ™ 10
- NMEA 2000® Drop Cable (2 m)
- NMEA 2000 T-connector
- Mast cable with female connector (25 m)
- Mast mounting bracket
- Mounting components
- Documentation
