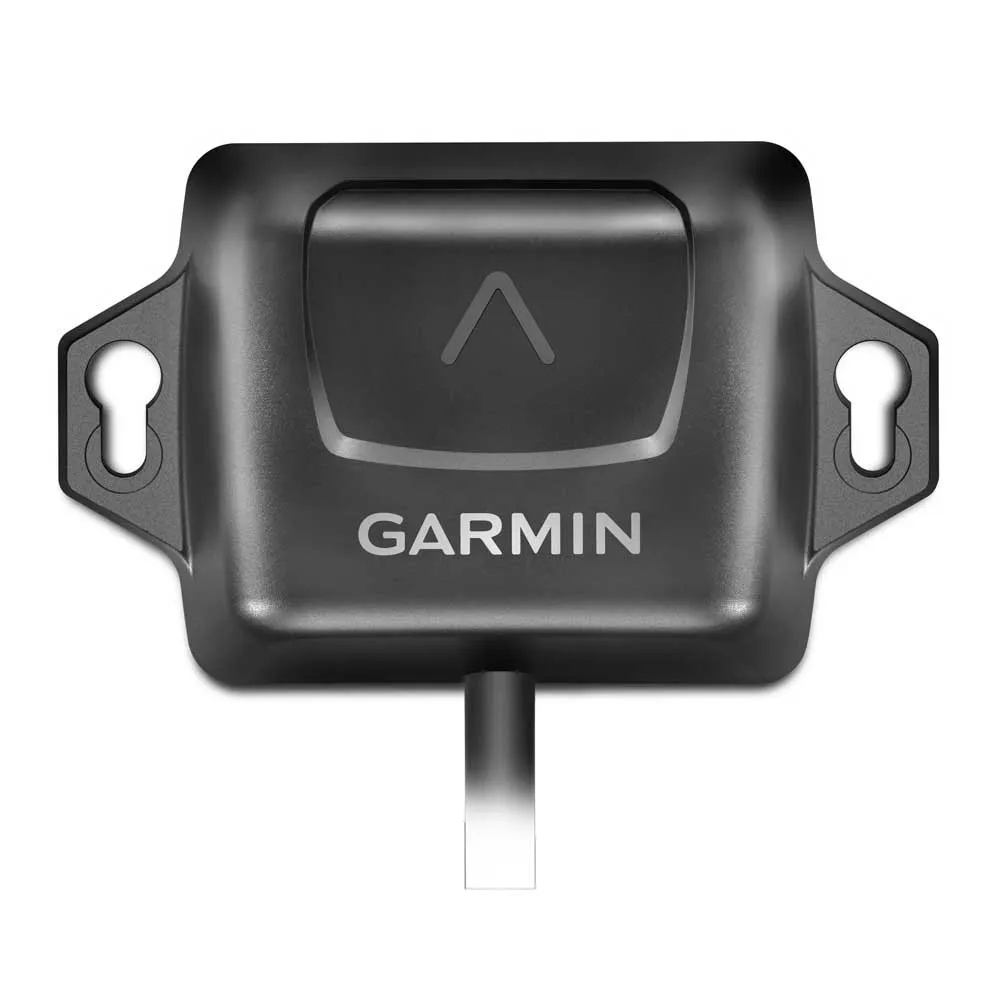

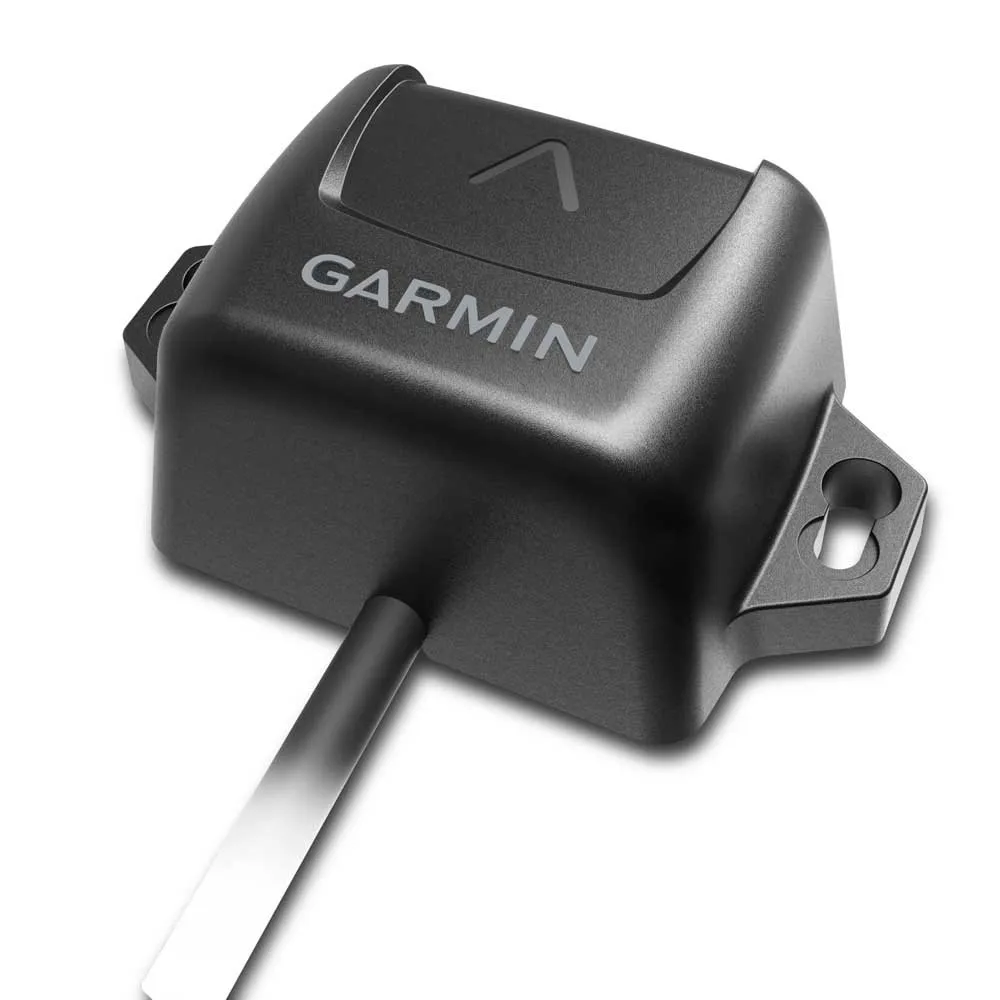

Garmin SteadyCast Heading Sensor

Know Where You’re Actually Casting:
- Ensures bow orientation on your chartplotter matches your heading
- Heading accuracy of plus or minus 3 degrees
- Easy NMEA 2000® plug-and-play interface
- Simple 2-step calibration process
- 9-axis MEMS technology allows installation in any orientation located away from magnetic interference

SteadyCast heading sensor is a simple, easy-to-install solution that provides fast calibration and premium heading accuracy. It aligns your boat bow to its actual orientation so you know where you are casting according to your chartplotter screen.
Accurate Heading Even at Low Speed

Its heading output rate at 10 Hz and accuracy of plus or minus 3 degrees ensures your chart orientation and boat heading line match up with reality, even at trolling speeds or when dead in the water.

Effective in Rough Waters:
- You can also be confident your heading information will remain accurate, even in rough water.
Easy Installation, Fast Calibration

SteadyCast heading sensor installs easily with NMEA 2000® plug-and-play interface and a simple 2-step precision calibration process for compatible Garmin chartplotters. Basic calibration for Garmin echoMAP™ models and other NMEA 2000 displays is also supported. Its 9-axis MEMS technology allows installation in any orientation located away from magnetic interference, and it’s built to withstand bilge environments.


Specifications:

- Dimensions (LxWxH): 3.4” x 2.1” x 1.3” (86.3 x 52.9 x 33.7 mm)
- Default heading output: 10 Hz
- Output heading with +/-3 degree accuracy
- Water rating: IPX7
- LEN: 2
- Operating voltage: 9 VDC to 32 VDC


In the box:

- SteadyCast heading sensor with integrated NMEA 2000® drop cable (6 ft)
- NMEA 2000® T-connector
- Documentation


Compatible Devices:

- echoMAP™ CHIRP 52cv
- echoMAP™ CHIRP 52dv
- echoMAP™ CHIRP 53cv
- echoMAP™ CHIRP 53dv
- echoMAP™ CHIRP 54cv
- echoMAP™ CHIRP 54dv
- echoMAP™ CHIRP 55cv
- echoMAP™ CHIRP 55dv
- echoMAP™ CHIRP 72cv
- echoMAP™ CHIRP 72dv
- echoMAP™ CHIRP 72sv
- echoMAP™ CHIRP 73cv
- echoMAP™ CHIRP 73dv
- echoMAP™ CHIRP 73sv
- echoMAP™ CHIRP 74cv
- echoMAP™ CHIRP 74dv
- echoMAP™ CHIRP 74sv
- echoMAP™ CHIRP 75cv
- echoMAP™ CHIRP 75dv
- echoMAP™ CHIRP 75sv
- echoMAP™ CHIRP 92sv
- echoMAP™ CHIRP 93sv
- echoMAP™ CHIRP 94sv
- echoMAP™ CHIRP 95sv
- ECHOMAP™ Plus 62cv
- ECHOMAP™ Plus 64cv
- ECHOMAP™ Plus 64cv
- ECHOMAP™ Plus 65cv
- ECHOMAP™ Plus 72cv
- ECHOMAP™ Plus 72sv
- ECHOMAP™ Plus 73cv
- ECHOMAP™ Plus 73sv
- ECHOMAP™ Plus 73sv
- ECHOMAP™ Plus 74cv
- ECHOMAP™ Plus 74sv
- ECHOMAP™ Plus 74sv
- ECHOMAP™ Plus 75cv
- ECHOMAP™ Plus 75sv
- ECHOMAP™ Plus 77cv
- ECHOMAP™ Plus 77sv
- ECHOMAP™ Plus 92sv
- ECHOMAP™ Plus 93sv
- ECHOMAP™ Plus 93sv
- ECHOMAP™ Plus 94sv
- ECHOMAP™ Plus 94sv
- ECHOMAP™ Plus 95sv
- ECHOMAP™ Plus 97sv
- ECHOMAP™ UHD 62cv
- ECHOMAP™ UHD 63cv
- ECHOMAP™ UHD 64cv
- ECHOMAP™ UHD 65cv
- ECHOMAP™ UHD 72cv
- ECHOMAP™ UHD 72sv
- ECHOMAP™ UHD 73cv
- ECHOMAP™ UHD 73sv
- ECHOMAP™ UHD 74cv
- ECHOMAP™ UHD 74sv
- ECHOMAP™ UHD 75cv
- ECHOMAP™ UHD 75sv
- ECHOMAP™ UHD 92sv
- ECHOMAP™ UHD 93sv
- ECHOMAP™ UHD 94sv
- ECHOMAP™ UHD 95sv
- ECHOMAP™ Ultra 102sv
- ECHOMAP™ Ultra 102sv
- ECHOMAP™ Ultra 106sv
- ECHOMAP™ Ultra 106sv
- ECHOMAP™ Ultra 122sv
- ECHOMAP™ Ultra 122sv
- ECHOMAP™ Ultra 126sv
- ECHOMAP™ Ultra 126sv
- GPSMAP® 1020xs
- GPSMAP® 1022
- GPSMAP® 1040xs
- GPSMAP® 1042xsv
- GPSMAP® 1222
- GPSMAP® 1222 Plus
- GPSMAP® 1222 Touch
- GPSMAP® 1222xsv Plus
- GPSMAP® 1222xsv Plus Bundle
- GPSMAP® 1222xsv Touch
- GPSMAP® 1242 Plus
- GPSMAP® 1242 Touch
- GPSMAP® 1242xsv
- GPSMAP® 1242xsv Plus
- GPSMAP® 1242xsv Plus Bundle
- GPSMAP® 1242xsv Touch
- GPSMAP® 722
- GPSMAP® 722 Plus
- GPSMAP® 722xs
- GPSMAP® 722xs Plus
- GPSMAP® 722xs Plus Bundle
- GPSMAP® 7407
- GPSMAP® 7407xsv
- GPSMAP® 7408
- GPSMAP® 7408xsv
- GPSMAP® 741
- GPSMAP® 7410
- GPSMAP® 7410xsv
- GPSMAP® 7412
- GPSMAP® 7412xsv
- GPSMAP® 7416
- GPSMAP® 7416xsv
- GPSMAP® 741xs
- GPSMAP® 742
- GPSMAP® 742 Plus
- GPSMAP® 742xs
- GPSMAP® 742xs Plus
- GPSMAP® 742xs Plus Bundle
- GPSMAP® 7607
- GPSMAP® 7607xsv
- GPSMAP® 7608
- GPSMAP® 7608xsv
- GPSMAP® 7610
- GPSMAP® 7610xsv
- GPSMAP® 7612
- GPSMAP® 7612xsv
- GPSMAP® 7616
- GPSMAP® 7616xsv
- GPSMAP® 8208 MFD
- GPSMAP® 8212 MFD
- GPSMAP® 8215 MFD
- GPSMAP® 840xs
- GPSMAP® 8417 MFD
- GPSMAP® 8422 MFD
- GPSMAP® 8424 MFD
- GPSMAP® 8530 Black Box
- GPSMAP® 8617 MFD
- GPSMAP® 8622 MFD
- GPSMAP® 8624 MFD
- GPSMAP® 8700 Black Box
- GPSMAP® 922
- GPSMAP® 922 Plus
- GPSMAP® 922xs
- GPSMAP® 922xs Plus
- GPSMAP® 922xs Plus Bundle
- GPSMAP® 942
- GPSMAP® 942 Plus
- GPSMAP® 942xs
- GPSMAP® 942xs Plus
- GPSMAP® 942xs Plus Bundle
- Volvo Penta Glass Cockpit System
