Jabsco Siphon

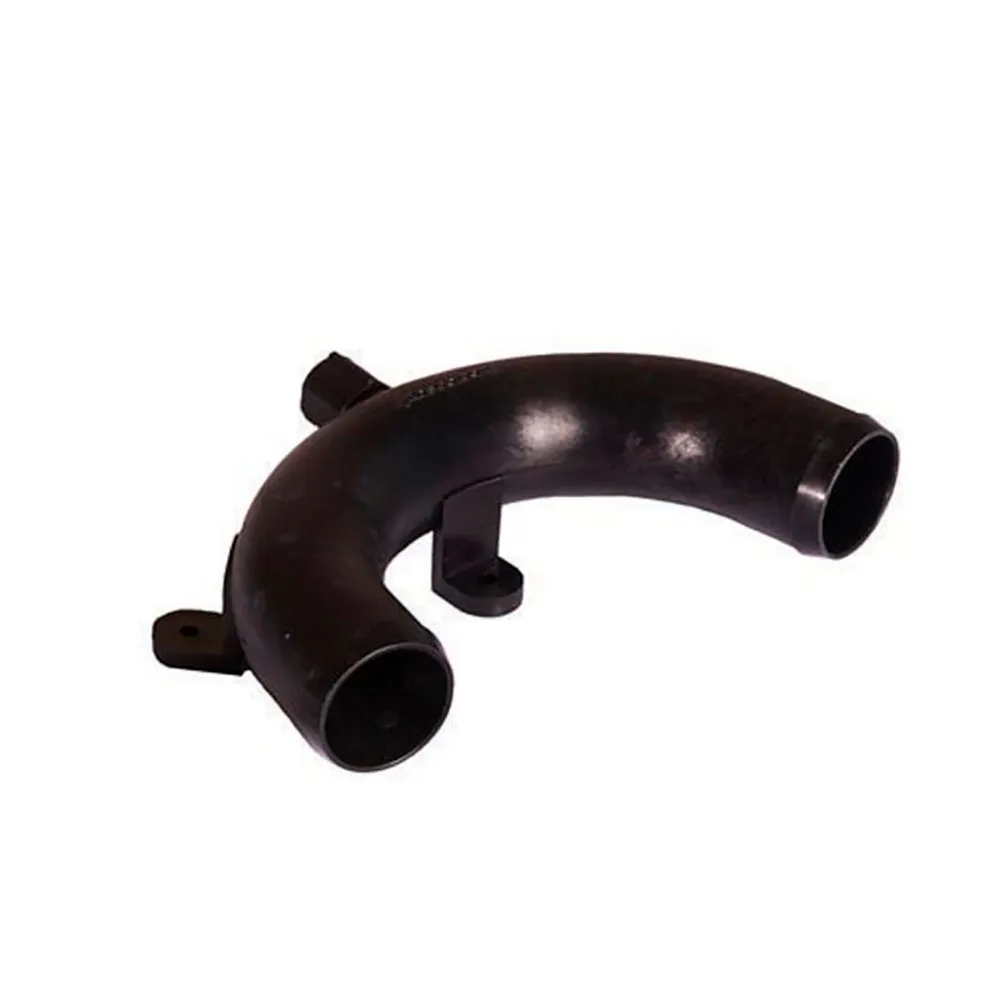

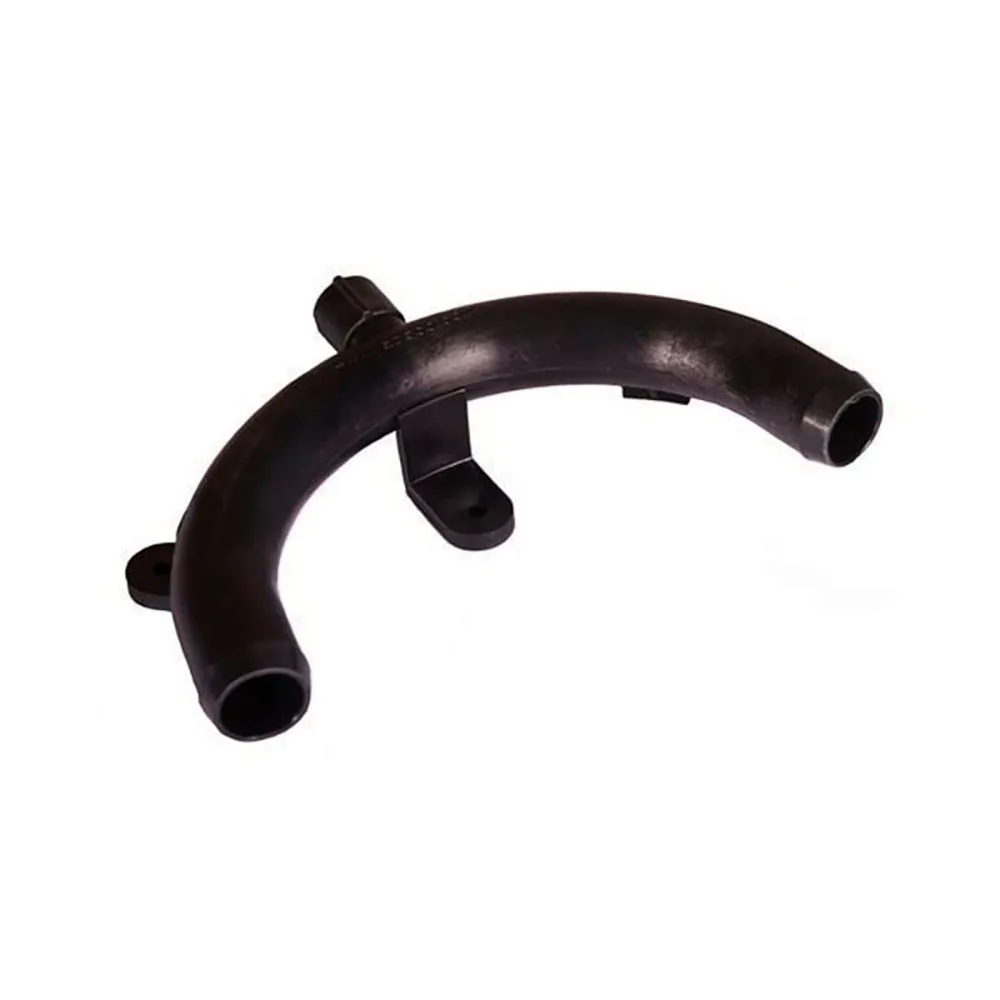

JABSCO Vented Loop Siphon Break: Essential Protection for Your Marine Plumbing System

Safeguard your vessel from the silent threat of back-siphoning with the JABSCO Vented Loop Siphon Break, a critical safety component for any boat´s bathroom and plumbing systems. Designed by a leader in marine technology, this device provides essential protection against accidental flooding and equipment damage, ensuring peace of mind whether you are at the dock or navigating challenging waters. It is an indispensable safeguard for any below-the-waterline through-hull installation, including marine toilets, bilge pumps, and engine cooling systems.

The primary function of the JABSCO Siphon Break is to prevent water from being siphoned back into your boat through discharge or intake lines. When a hose outlet is below the waterline, a siphon effect can be created by the boat´s motion, potentially filling a toilet bowl and overflowing into the cabin, or worse, flooding your bilge or damaging your engine. By automatically introducing air into the line, this vented loop effectively breaks the siphon the moment it begins, stopping the unwanted flow of water in its tracks.

Key Benefits:

* Prevents Accidental Flooding: Provides robust protection against water back-flow through toilets and bilge pump outlets, keeping your cabin and bilge dry and safe.
* Protects Critical Marine Equipment: Shields your marine toilet from overflowing and prevents raw water from siphoning back into your engine´s cooling system, which could lead to catastrophic failure.
* Automatic and Reliable Operation: Functions passively without any need for manual intervention. Its simple, effective design offers consistent performance when you need it most.
* Enhances Onboard Safety: A fundamental safety installation for any plumbing that operates below the vessel´s waterline, mitigating a significant risk for every boat owner.
* Versatile Application: Ideal for a wide range of marine applications, including raw water intake for toilets, toilet discharge lines, bilge pump discharge, and engine raw water cooling circuits.

Main Features:

This expertly engineered siphon break is built for the demanding marine environment. Its core feature is a simple yet highly effective one-way valve located at the apex of the loop. This valve remains closed during normal operation, allowing water or waste to be pumped out, but opens to admit air and instantly break any vacuum or siphon effect as soon as the pump stops. The streamlined design ensures minimal flow restriction while providing maximum protection. Available in multiple sizes, it can be seamlessly integrated into your existing plumbing configuration.

---

Technical Specifications:

* Product Type: Siphons; Vented Loop Siphon Break
* Primary Function: Anti-siphon protection for marine plumbing systems
* Valve Mechanism: Integrated one-way air valve

* Marine Toilet Raw Water Intake
* Marine Toilet Holding Tank or Overboard Discharge
* Bilge Pump Discharge Lines
* Engine Raw Water Cooling System Discharge
* Installation: Must be installed in a loop with the valve positioned a minimum of 6-8 inches (15-20 cm) above the waterline at all angles of heel.

* 13mm (1/2")
* 19mm (3/4")
* 25mm (1")
* 38mm (1-1/2")
