Lofrans Panel Chain Counter Iris103

Perfect and Reliable operation in marine environments

The range of windlass accessories includes a vast selection of products to control windlass operations. All products are designed and manufactured to guarantee perfect and reliable operation in the marine enviroment.

Lofrans windlass accessories are manufactured with the highest quality for reliability and safety, conforming to EC regulations covering electromagentic compatibility (89/336/CEE). Tested by official organizations for compliance to the regulations and CE marked.

For proper functioning of the windlass you need to install:

The control box unit which is supplied as standard, made by two coils included in watertight box rated IP56. To connect the remote controls to control box it is enough to use the fastons on the control box unit

The curcuit breaker which has 3 functions:

Protection from short circuit
Protection of the electric motor from overload
Voltage interruption when you want to switch off the anchor windlass
The circuit breaker is installed on a panel and it has a led in order to show the voltage
One or more electric controls which can be connected in parallel

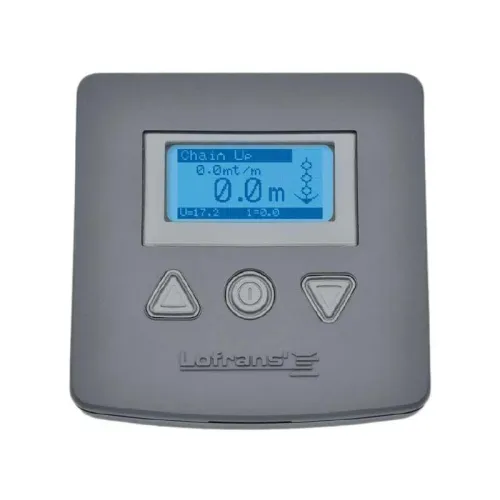

This bulkhead chain counter is easy to fit and suitable for all types of cockpits. The different functions allow a full control of the anchoring. Complies with IP67 standards (dustproof and waterproof).


Features:

- Waterproof housing

- Power supply: 10 - 30 Vdc

- High vision LCD display

- Multilingual menu (EN, FR, DE, ES, IT)

- Reverse polarity protection

- On/Off switch

- Automatic anchor dropping function

- Up alarm

- 8 levels of backlighting and contrast

- Sensor detection function

- Possibility of parallel connection

- Consumption

- Power Supply

- Chain Speed

- Mooring Lengths in meters or feet

Package Contents
- Meter counter, gasket and closing cover
- Ten-pole male connector with 10 male crimp contacts
- Magnetic sensor
- Support kit (sensor support for vertical axis windlass, support base, 2 fixing screws, or gasket)
- Magnet
- Sensor support for horizontal axis windlass
- Instructions for Use
