Lofrans X3.5 Windlass

.5 Windlass:

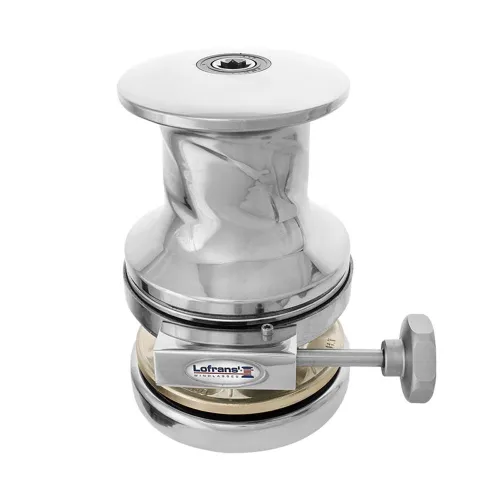

LOFRANS X3.5 Vertical Windlass | Stainless Steel Anchoring System

Experience the pinnacle of anchoring control with the LOFRANS X3.5 Windlass, the ultimate solution for yachts and motorboats from 16 to 26 meters (52-85 ft). Engineered for reliability and power, the X3.5 combines cutting-edge technology with robust construction, ensuring flawless performance when you need it most. As a leader in the Boats and equipment category, this windlass is the professional´s choice for secure and effortless anchoring and mooring.

Technology, Durability and Performance combined in a single design!

The space available above and under the deck is the primary element to be considered when selecting the proper type of anchor windlass.

Vertical windlasses feature a vertical rotation in relation to the deck which allows a reduced volume above deck as the electric motor and the gear box are sitting in the chain locker.

Also keep in mind that the height between the top of the stacked chain and the underdeck must be 300 mm minimum in order to ensure a fast dropping of the chain in the locker and an optimum performance of the windlass.⁣

Unmatched Durability and Sleek Design

Crafted from mirror-polished AISI 316L marine-grade stainless steel, the LOFRANS X3.5 is built to withstand the harshest saltwater environments. Its superior corrosion resistance guarantees a long-lasting, brilliant finish that enhances the aesthetic of any vessel, while the heavy-duty internal structure provides the strength required for demanding anchoring tasks. The vertical configuration offers a significant advantage by minimizing deck clutter, preserving valuable space and maintaining clean, elegant lines on your boat.

Powerful and Versatile Performance

The X3.5 is more than just a beautiful piece of hardware; it´s a powerhouse. Equipped with a heavy-duty electric motor, it delivers impressive line speed and a formidable maximum pull, allowing for rapid and secure anchor retrieval. The inclusion of a warping drum adds a layer of versatility, enabling independent handling of a secondary rope rode or assisting with mooring and warping maneuvers, all without interfering with the anchor chain. This dual-functionality makes the X3.5 an indispensable tool for comprehensive anchoring and mooring operations.

Features:

* Stainless steel construction for maximum corrosion resistance and durability.
* With drum for versatile secondary rope handling and warping.
* Vertical motor and gearbox orientation for a minimal footprint on deck.
* Independent gypsy and drum operation.
* Manual override functionality for anchor retrieval in case of power failure.
* Chain counter magnet pre-installed as standard for seamless integration.
* Heavy-duty electric motor with an IP67 waterproof rating.

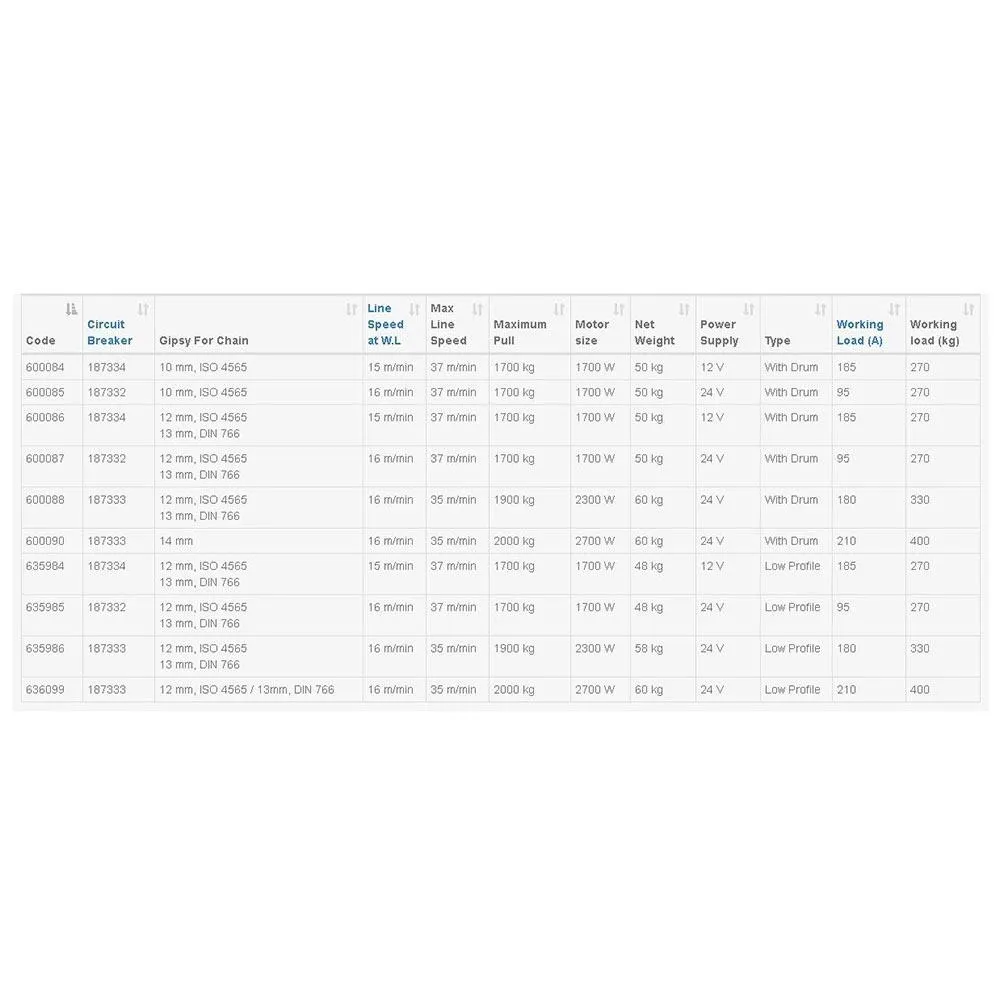

Technical Specifications:

* Attribute: Windlasses
* Construction: Marine Stainless Steel (AISI 316L)
* Motor Size: 1700 W / 2000 W
* Voltage: 12 V / 24 V
* Recommended Boat Length: 16 m to 26 m (52 ft - 85 ft)
* Gypsy for Chain: 8 mm (ISO 4565/DIN 766), 10 mm (ISO 4565/DIN 766), 12 mm (ISO 4565/DIN 766)
* Maximum Pull: 1650 Kg
* Working Load: 225 Kg
* Line Speed at Working Load: Approx. 20 m/min
* Current Draw at Working Load: Approx. 130-170 A
* Weight (with drum): Approx. 45 Kg (99 lb)
