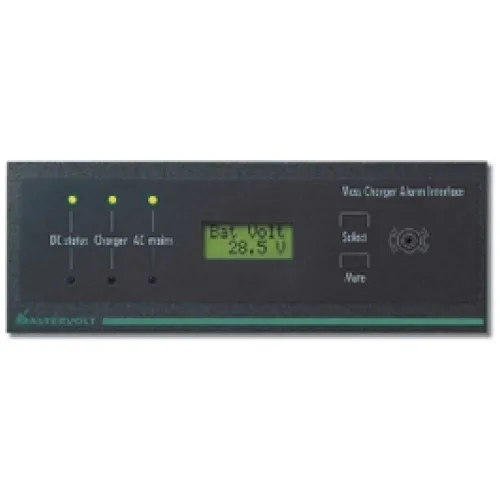

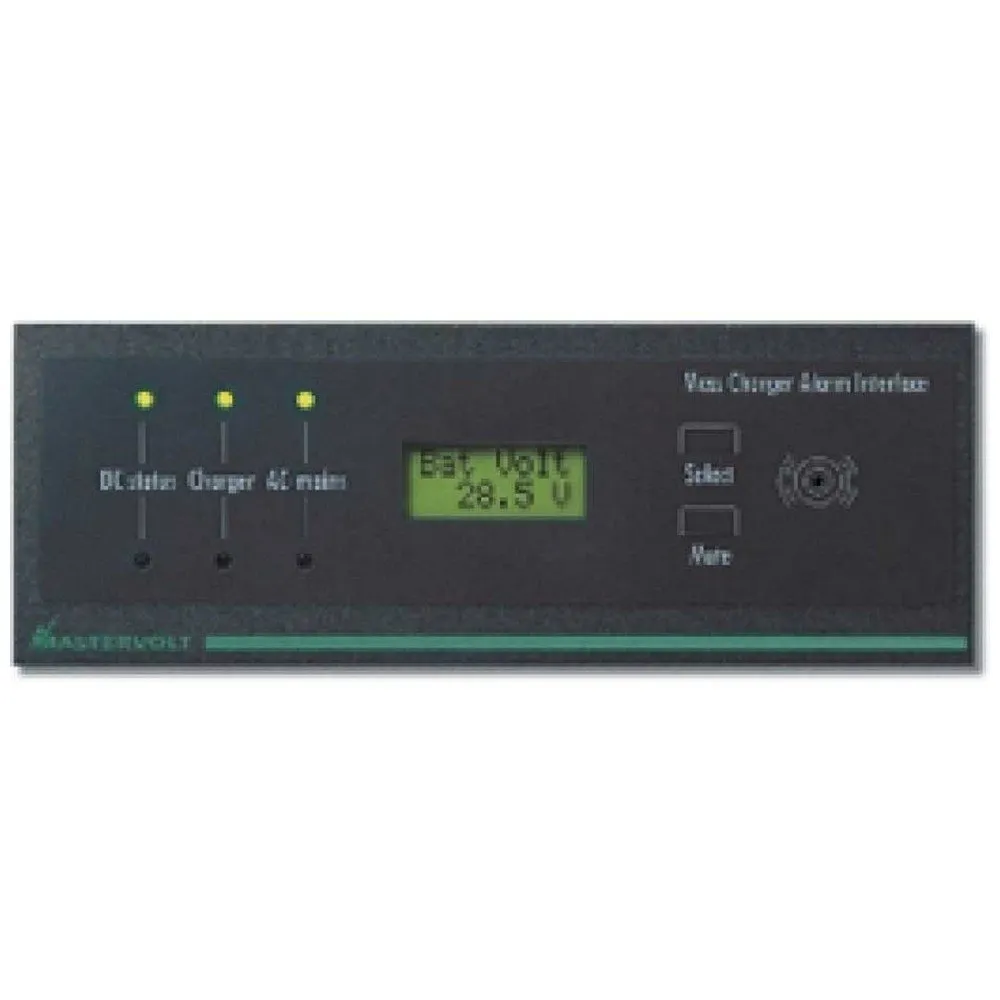

Mastervolt MasterVision GMDSS Remote Panel Interface

Gmdss Remote Panel:

- Remote Monitoring For Mass Battery Chargers, With Gmdss System Monitoring Functions.

Battery Voltage And Current Are Displayed On The Digital Panel.

- Gmdss Stands For Global Maritime Distress And Safety System, An Internationally Agreed-Upon Set Of Safety Procedures, Types Of Equipment, And Communication Protocols That Is A Requirement For The Solas (Safety Of Life At Sea) Convention And Uses Dsc And Satellite Communication.

Specifications:

General.

Specifications:

- Function:

Monitoring Of The Status Of The Battery And Battery Charger (12/24 V Dc).

- Supply Voltage:

8-32 V Dc.

- Safe Compass Distance:

Standard 1 Meter.

Steering:

0.3 Mm.

- Display/Read-Out:

Lcd Display And Status Led´S For Dc Voltage Alarm, Charger Alarm And Ac Mains Alarm.

- Current:

110 Ma (12 V) / 65 Ma (24 V), Normal Operation Mode Without Activated Relays.

Current Accurancy:

± 2 A (.

45 A).

- Alarms:

Potential-Free Switch Over Contacts For Dc Voltage Alarm, Charger Alarm And Ac Mains Alarm.

Max.

Switching Current:

1 A.

- Dimensions:

180 X 65 X 40 Mm, Cut-Out:

168 X 53 Mm.

- Dimensions Shunt, Hxwxd:

M8, 84 X 44 X 44 Mm, 0.0 X 1.7 X 1.7 Inch.

- Weight:

Excl.

Shunt:

400 Gr, Incl.

Shunt:

1 Kg, 0.0 Lb.

- Delivered With:

Interface, Shunt, User´S Manual Technical.

Specifications:

- Voltage Range:

0.

- 62.7 V Dc (0.1 V Resolution).

A 12 V Or 24 V System Is Detected Automatically V.

- Voltage Accuracy:

± 0.2 V (12 V), ± 0.4v (24 V).

- Shunt Specification:

500 Amp / 50 Mv (Included With The Delivery).

- Current Measurement Range:

- 500 … 500 A.
