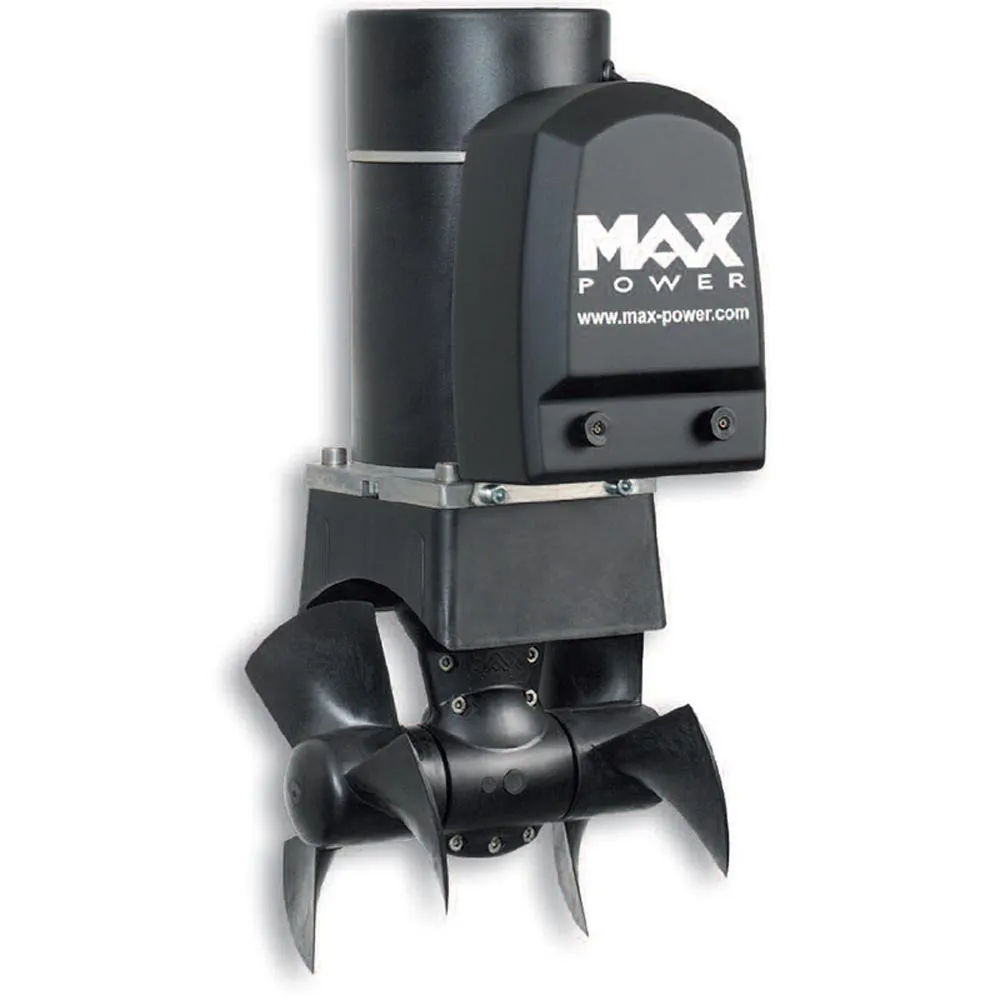

Max Power THRUSTER CT80 ELEC DUO COMPO 185 Engine 24V

MAX POWER THRUSTER CT80 ELEC DUO COMPO 185 Engine 24V | Precision Steering & Docking

Category: Boats and equipment
Subcategory: Steering

Gain ultimate control and confidence on the water with the MAX POWER THRUSTER CT80 ELEC DUO COMPO 185 Engine 24V. Engineered for superior performance and reliability, this electric tunnel thruster is the definitive solution for effortless docking and precise maneuvering in challenging conditions. Navigate tight marinas, counteract strong crosswinds, and manage currents with the simple push of a button, transforming stressful situations into simple, controlled movements. The CT80 empowers you to pivot, hold position, and dock with surgical precision, providing peace of mind and enhancing the safety of your vessel, crew, and passengers.

This composite, twin propeller, DC tunnel thruster is undeniably the best selling model in the Max Power electric tunnel thruster range. Available in 12V or 24V, the CT80 is perfectly suited to motor yachts and deep footed sailing yachts in the popular 25’-44’ size range. With its 185mm tunnel diameter and thrust rating up to 65/143 (kg/lbs) on the 12V model, or 80/176 (kg/lbs) on the 24V model, this powerful yet economic thruster integrates all the unique features common to the range and is fitted as standard on a large variety of yachts.

Key Features for Unmatched Performance:

* Twin Propeller Design: The innovative dual-propeller system generates powerful, non-linear thrust for an immediate and precise response, giving you unparalleled control when you need it most.
* Maintenance-Free Composite Drive Leg: Expertly engineered for a long and service-free operational life, the patented composite drive leg is pre-filled with oil and sealed, eliminating the need for regular maintenance and ensuring robust performance year after year.
* Case-Hardened Spiro-Conical Gears: Experience smooth, reliable power transmission and exceptionally quiet operation thanks to the high-spec gearbox.
* Sleek Hydrodynamic Profile: The design of the drive leg and propellers is optimized to minimize drag and water turbulence, ensuring maximum efficiency and performance with minimal impact on your vessel´s speed.
* Advanced Safety Systems: Integrated electronic controls provide protection against overheating and misuse, guaranteeing safe and dependable operation every time.

Engines

At the core of the CT80´s exceptional performance is its robust and efficient 24V DC electric engine. Specifically developed for marine thruster applications, this purpose-built motor delivers maximum power and torque exactly when you need it. Its design ensures reliable performance, efficient power consumption from your onboard battery banks, and remarkably quiet operation. This provides the dependable thrust required for precise vessel maneuvering without the noise and complexity associated with other systems, making it the ideal choice for discerning boat owners.

Technical Specifications
* Model: CT80 ELEC DUO COMPO
* Voltage: 24V
* Power (24V): 5.14 kW / 6.9 hp
* Thrust (24V): 80 kg / 176 lbs
* Tunnel Diameter: 185 mm
* Recommended Boat Size: 25’ - 44’ (7 - 13 m)
* Propellers: Twin (DUO)
* Drive Leg: Composite, Maintenance-Free

Upgrade your boating experience with the market-leading solution trusted by yacht builders and discerning owners worldwide. The MAX POWER CT80 provides the power, precision, and reliability needed to master any harbor. Invest in effortless control and elevate your confidence on the water today
