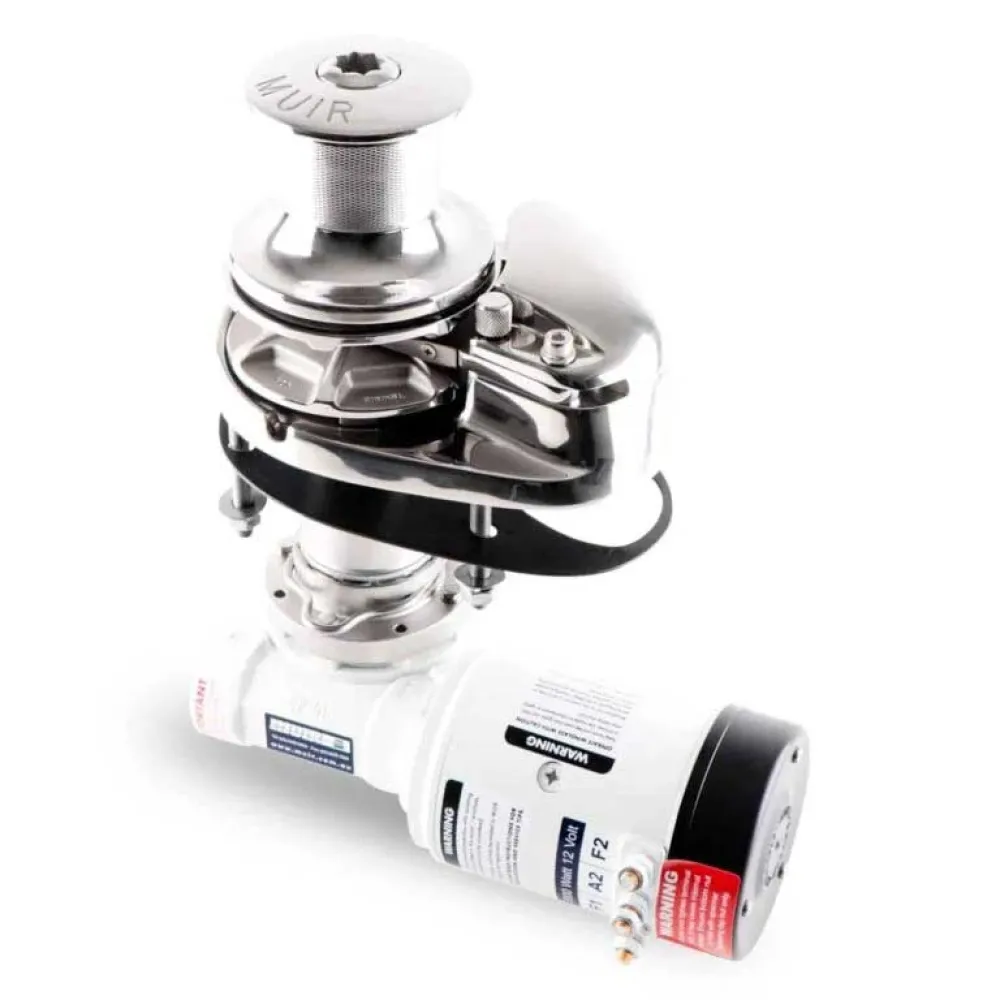

Muir VRC850 winch 24V

MUIR VRC850 24V Vertical Rope/Chain Windlass | Effortless Anchoring

Upgrade your vessel’s anchoring and mooring capabilities with the MUIR VRC850 24V, a premium vertical windlass engineered for superior performance and unwavering reliability. Designed for boats and equipment where precision and power are paramount, this compact powerhouse makes anchoring a simple, one-person operation. Say goodbye to the strain of manual anchor retrieval and hello to more time enjoying the water. As a leading choice in the world of marine Windlasses, the VRC850 is perfectly suited for vessels ranging from 6 to 11 metres (20 to 35 feet), providing the perfect balance of a compact footprint and robust pulling power.

Built to withstand the harshest marine environments, the MUIR VRC850 ensures peace of mind on every voyage. Its intelligent design and high-quality construction deliver consistent performance, whether you´re dropping anchor in a calm bay or securing your position in challenging conditions. The vertical configuration with a low-profile, deck-hugging design not only saves valuable deck space but also provides a clean, unobtrusive look on your bow.

Key Benefits:

* Effortless and Rapid Anchoring: The powerful 24V DC motor provides impressive line speed and pulling strength, retrieving your anchor quickly and smoothly at the touch of a button, reducing physical effort and time spent at the bow.
* Enhanced Safety and Control: Gain complete command over your anchoring process. The system allows for controlled deployment and retrieval, while the integrated manual override feature ensures you can release the anchor in an emergency, even without power.
* Versatile Rode Management: Equipped with a precision-engineered combination gypsy, the VRC850 seamlessly handles both rope and chain, providing a smooth transition between the two without bunching or slippage for ultimate flexibility.
* Space-Saving and Durable Design: The vertical, through-deck installation offers a minimal footprint on deck, preserving precious space. Its robust construction is specifically designed for longevity in corrosive saltwater environments.
* Simplified Installation: The VRC850 is designed for straightforward installation, complete with a comprehensive kit that includes the essential components to get your system up and running efficiently.

Main Features:

* Vertical design with a through-deck shaft
* Combination Rope/Chain Gypsy for versatile anchor rode management
* Luxury chrome finish on a bronze gypsy
* Manual Override System (MORS) for emergency free-fall and manual operation
* Heavy-duty, dual-direction 24V DC electric motor
* Included clutch release handle
* Full installation kit including reversing solenoid, 100A circuit breaker, and helm control rocker switch

Technical Specifications:

* Model: VRC850 (Vertical Rope Chain)
* Voltage: 24V DC
* Motor Power: 600W
* Vessel Class: Suitable for vessels from 6m to 11m (20ft - 35ft)
* Maximum Load: 385kg (850lb)
* Normal Working Load: 115kg (250lb)
* Chain Size (Short Link): 6mm, 7mm, 8mm
* Rope Size (Nylon): 12mm, 14mm
* Chain Speed (at Normal Working Load): 24m/min (79ft/min)
* Net Weight: 19kg (42lb)
