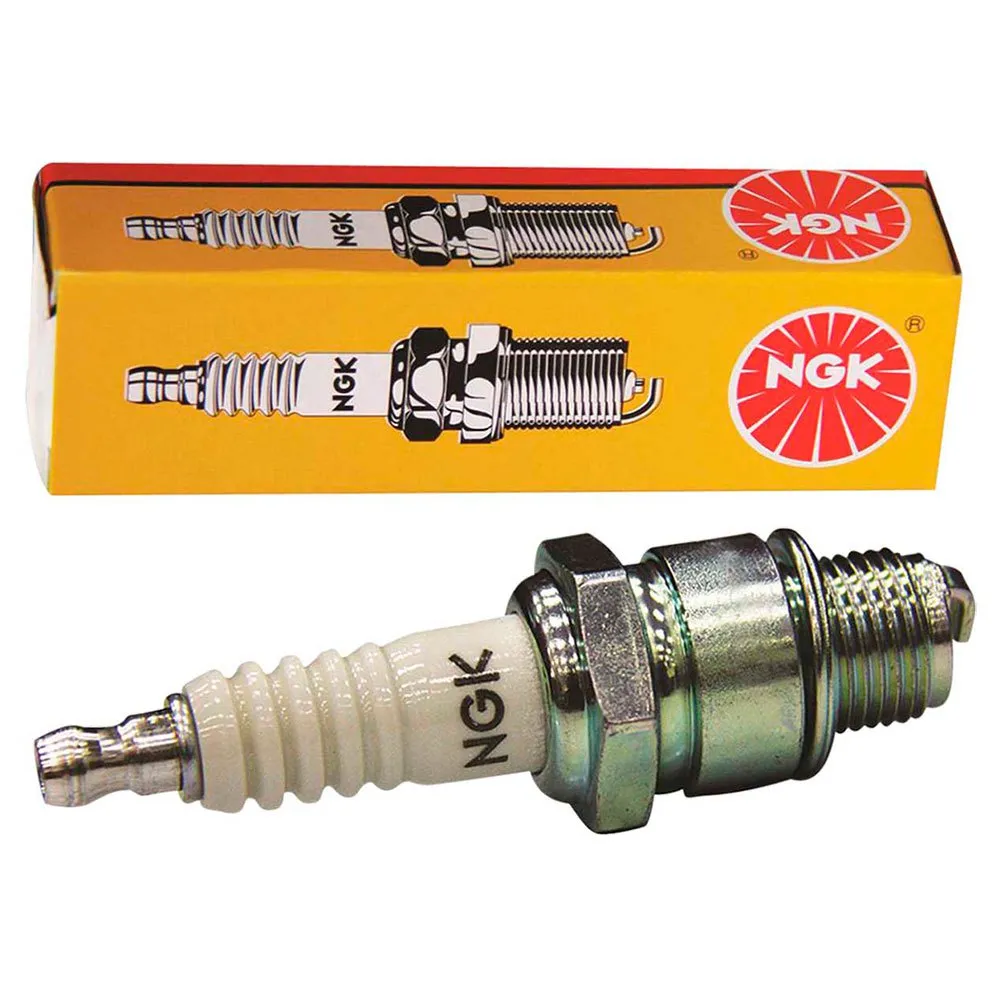

NGK DR7EA Spark Plug

NGK DR7EA Spark Plug - Reliable Performance for Marine Motors

Ensure your boat´s engine runs smoothly and reliably with the NGK DR7EA Spark Plug, a premium choice for marine motors in the Boats and equipment category. When you´re on the water, engine dependability is paramount, and a high-quality spark plug is at the heart of that reliability. The NGK DR7EA is engineered to deliver consistent starts, stable idling, and crisp throttle response, allowing you to focus on your journey without worrying about engine performance. As the world leader in spark plug technology, NGK delivers unmatched quality for demanding marine environments.

Built on a legacy of innovation and excellence, NGK standard plugs are constructed for longer life and optimum performance. This means you can count on the DR7EA to provide powerful, efficient combustion for thousands of hours of operation. Its robust design is specifically tailored to withstand the rigors of marine use, from temperature fluctuations to high-rpm demands, ensuring your motor performs at its peak, every time you leave the dock. Whether you are trolling, cruising, or pushing for top speed, this spark plug provides the confidence you need in your equipment.

Key Features for Unmatched Marine Performance:
- Superior Anti-Corrosion and Seizing Protection: The trivalent metal plating offers exceptional resistance to corrosion, a must-have in moist marine environments, and ensures easy installation and removal during maintenance.
- Flashover Prevention: Specially designed corrugated ribs prevent electrical flashover, ensuring the spark energy is directed to the electrode tip for a clean, powerful ignition.
- Exceptional Strength and Heat Management: A pure alumina silicate ceramic insulator provides incredible strength and superior heat transfer, helping to maintain the plug´s optimal operating temperature under load.
- Efficient Heat Removal: The integrated copper core is highly effective at dissipating heat away from the firing tip, preventing overheating and pre-ignition while extending the life of the spark plug.
- Leak-Proof Design: Robust triple seals are engineered to prevent any combustion gas leakage, maintaining engine compression and maximizing power output.

Detailed Specifications:

General
- Resistor Value: 5k Ohm
- Heat Range: 7
- Torque Specs: Cast Iron: 10.8-18 lb. ft. Aluminum: 10.8-14.5 lb. ft.
- Longevity: 30k Miles

Shell
- Thread Diameter: 12mm
- Thread Pitch: 1.25mm
- Seat Type: Gasket
- Hex Size: 18mm
- Terminal Type: Removable Nut
- Overall Height: ISO
- Gap: .028´´ (0.7mm)

Center Electrode
- Material: Nickel
- Type: Standard
- Size: 2.5mm
- Projection: Non-Projected

Ground Electrode
- Material: Nickel
- Type: Standard
