Oem Marine Thermal Switch 150A

OEM MARINE Thermal Switch 150A

Protect your vessel´s most critical high-power systems with the OEM MARINE 150A Thermal Switch, an essential component for any modern marine electrical setup. Engineered for safety and reliability, this circuit breaker is the ultimate safeguard for your valuable onboard equipment, preventing damage from overcurrent and short-circuit conditions. This robust device is a unipolar thermal switch specifically designed for high power uses such as windlasses, winches, capstans, and thrusters. These applications demand significant amperage, and this switch ensures they operate safely within their electrical limits.

One of the standout benefits of this OEM MARINE switch is its superior durability, built to thrive in the harshest marine environments. The unit is fully tin and sealed for use in engine or bilge rooms, providing exceptional protection against moisture, salt spray, and corrosive fumes that would compromise lesser components. This sealed construction not only ensures long-term performance but also makes it ignition-protected, a critical safety feature for spaces where fuel vapors may be present.

Functionality and user-friendliness are at the core of its design. The switch is equipped with a reset mechanism that indicates the status of the switch. In the event of an electrical trip, a visible lever clearly shows that the circuit has been interrupted. This provides immediate visual feedback for quick troubleshooting and allows for a simple manual reset once the fault has been cleared. This mechanism also conveniently doubles as a manual power disconnect, allowing you to safely service your equipment without having to go to the main battery switch.

Engineered to meet rigorous industry standards, this thermal switch complies with SAE J 1625 regulation, an American standard for marine circuit protection devices. This compliance guarantees that you are installing a product that has been tested for performance, reliability, and safety in demanding marine conditions.

Main Features:

* High-Amperage Protection: A robust 150A rating to handle demanding electrical loads.
* Manual Reset Lever: Provides clear visual indication of a tripped circuit and allows for easy resetting.
* Dual Functionality: Can be used as both an automatic circuit breaker and a manual on/off switch.
* Sealed & Weatherproof Design: IP67-rated housing protects internal components from water, dust, and debris.
* Corrosion-Resistant Construction: Tin-plated copper studs and stainless steel hardware resist degradation in saltwater environments.

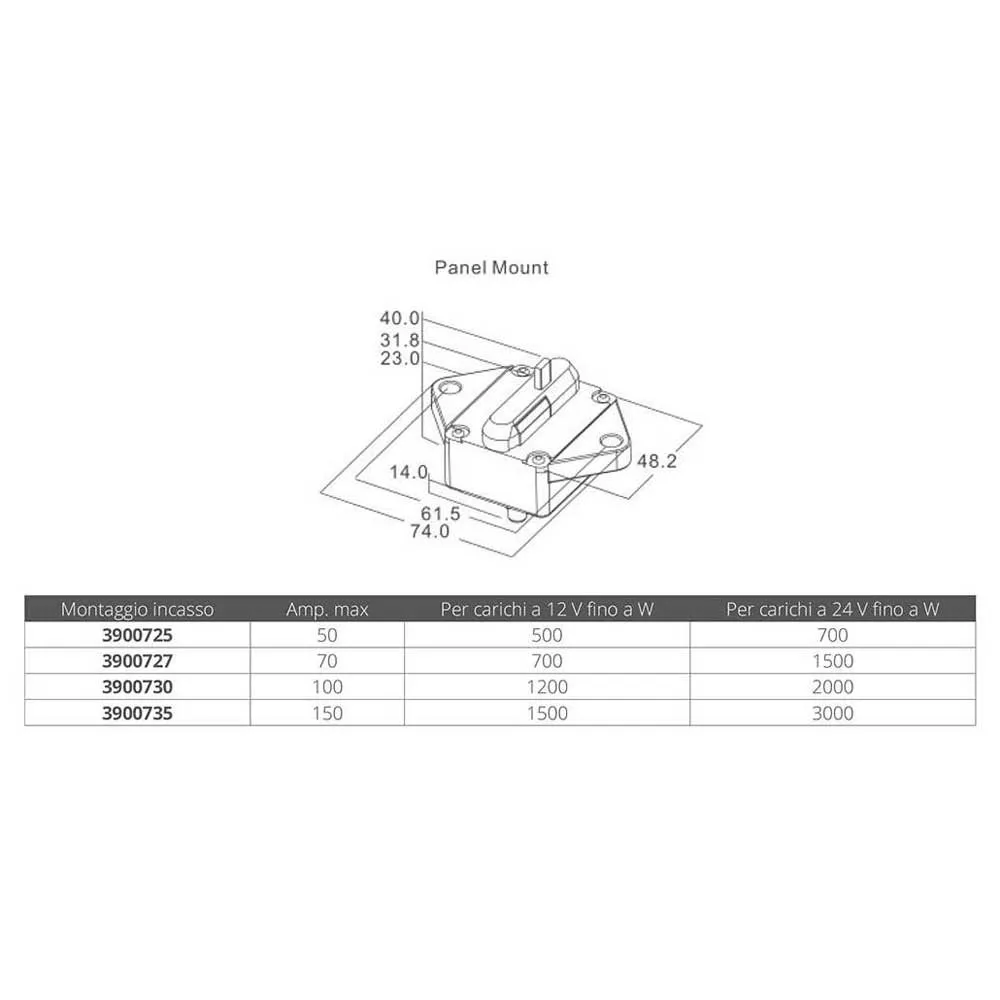

* Surface Mount Installation: Features an integrated mounting bracket for simple and secure installation on any bulkhead or panel.
* Certified Safety: Built in accordance with strict marine safety and performance standards.

Technical Specifications:

* Product Type: Thermal Circuit Breaker Switch
* Brand: OEM MARINE
* Amperage Rating: 150 A
* Maximum Voltage: 42 V DC
* Trip Type: Thermal
* Reset Type: Manual
* Compliance: SAE J 1625
* Ingress Protection: Sealed for engine room and bilge use
* Mounting: Surface Mount
